Visual Productions

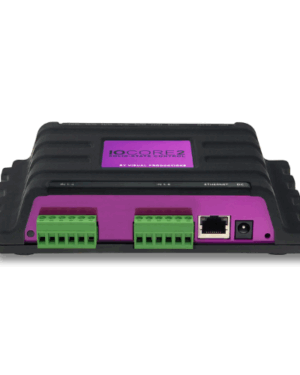

Ethernet port
Programming via web-interface
8 x Analogue or Digital inputs
8 x Relay (250VAC/30VDC max. 2A)
DMX512-A (ANSI E1.11) port (opto-isolated, input or output)
RS-232 port (in & out)
Art-Net (in & out)
sACN (in & out)
TCP (in)
USP & OSC (in & out)

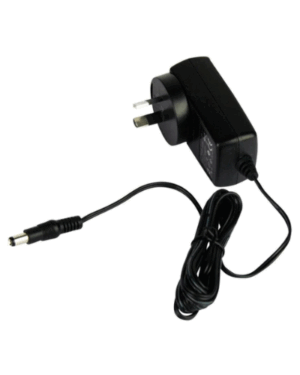

12-24 DC 500mA (PSU included)
Power over Ethernet (class I)
Kensington lock

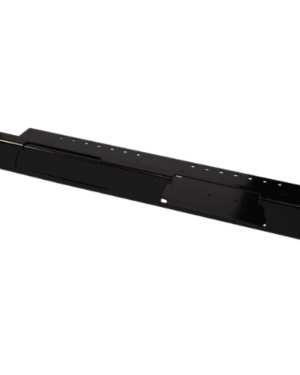

Desktop, DIN Rail or 19′ rack mount (optional adapter)
Operating temperature -20C to +50C (-4F to +122F)
Compliance: EN55103-1 EN55103-2

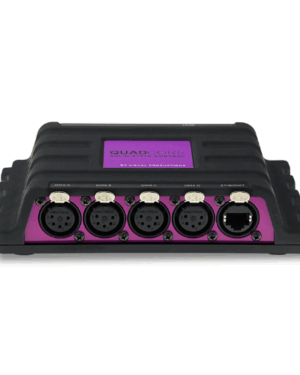

4 x DMX-512 opto-isolated port (bi-directional)
Art-Net (in & out)
sACN (in & out)
KiNet (out)
TCP (in)
UDP & OSC (in & out)
Scheduling with Real-Time clock, weekdays and sunrise/sunset
NTP time synchronisation
Art-Net timecode
Show Control function (connect any input to any output)
Master/slave protocol for synchronising multiple units

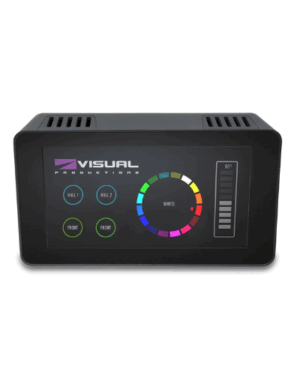

Compatible with Kiosc
Desktop or DIN Rail mounted

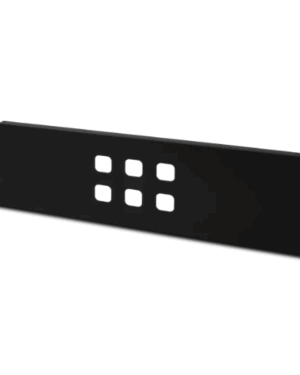

Optional 19′ rackmount adapter
Kensington lock
Locked power cable protection
PoE Class I

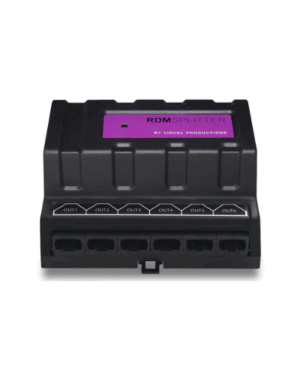

6 Outputs
Optical Isolation (individual per port)
USITT DMX512-A (ANSI E1.11)
RDM (ANSI E1.20)
RJ-45 connectors
DIN Rail mounting
Power consumption 9-24V DC 500mA power input (optional external PSU)
Dimensions 105 x 86 x 60 mm (4.1 x 3.4 x 2.4 inches)
Weights 120 gram (0.26 lbs)
