Showing 1–15 of 103 results
-
Data and DMX distribution
TecArt ArtNode 1 – 1 Universe
The ArtNode 1 is a Wi-Fi ArtNet to dual-purpose DMX node for architectural and entertainment lighting control applications.
FEATURES
• Multi mode: ArtNet to DMX, DMX to ArtNet.
• External power supply 9-24VDC (supplied separately).
• Robust housing.
• 2 main indication LEDs.SPECIFICATIONS
• Input Voltage: 9–24VDC.
• Power: 6VA (at 24VDC).
• Dimensions (mm): 117 L x 115 W x 53 H.
• Mounting Options: Desk-mount.
• DMX Input/Output: 5-pin XLR.
• Operating Temperature: 0 – +40°C.SKU: n/a -
Data and DMX distribution
TecArt ArtNode 2 – 2 Universe
The ArtNode 2 is an ArtNet to dual-purpose DMX node for architectural and entertainment lighting control applications.
FEATURES
• Multi mode: ArtNet to DMX, 2 x DMX to ArtNet.
• External power supply 9-24VDC (supplied separately).
• Robust housing.
• 2 main indication LEDs.SPECIFICATIONS
• Input Voltage: 9–24VDC.
• Power: 6VA (at 24VDC).
• Dimensions (mm): 117 L x 115 W x 53 H.
• Mounting Options: Desk-mount.
• DMX Input/Output: 5-pin XLR.
• Outputs: 2 x DMX Universes.
• Inputs: 1x Ethernet
• Operating Temperature: 0 – +40°C.SKU: n/a -
-
Lighting desks and control
TecArt Desk 12
The TecArt 12 channel manual desk is an entry level desk with the possibility to record one scene and cross fade between the current pre-set and stored scene. The desk also includes one chaser with controllable speed.
SPECIFICATIONS
• Supply: 240VAC
• DMX out: 5 pin XLR.SKU: n/a -
Dimmers and power distribution
TecArt Dimmer Single Channel 12kW
TV / Film dimmers are specially designed to handle the high inrush currents which many luminaires require.
Rugged housings and top-quality componentry ensure a long, hard working life for all our dimmers.
FEATURES
• 63A thermal-magnetic circuit breaker protection of outputs.
• DMX status LED.
• DMX-512 control.
• High rise time toroidal chokes.
• Single phase operation.
• High performance SSR devices.
• Supplied with 63A CEE Form input & output plugs.SKU: n/a -
Dimmers and power distribution

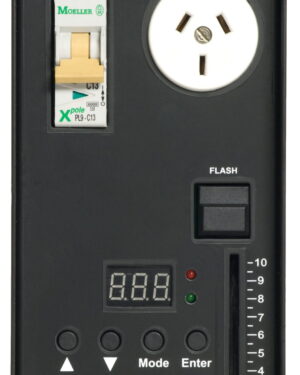

TecArt Dimmer Single Channel 2.5kW
The Single Dim is an Australian designed and manufactured high performance dimmer for the professional entertainment and production market. A number of options are available, the main option being the inclusion of an LED display and keypad, to enable extended functionality. The unit has a slider for local dimming or the option of DMX control.
FEATURES
• 13A thermal-magnetic circuit breaker protection of outputs.
• DMX status LED.
• Dimmer curves.
• DMX-512 control.
• High rise time toroidal chokes.
• Single phase operation.
• Easy to change Triacs.
• Supplied with standard 10A outlet and power feed cable.SKU: n/a -
Dimmers and power distribution
TecArt Dimmer Single Channel 24kW
TV / Film dimmers are specially designed to handle the high inrush currents which many luminaires require.
Rugged housings and top-quality componentry ensure a long, hard working life for all our dimmers.
FEATURES
• 125A thermal-magnetic circuit breaker protection of outputs.
• DMX status LED.
• DMX-512 control.
• High rise time toroidal chokes.
• Single phase operation.
• High performance SSR devices.
• Supplied with 125A CEE Form input & output plugs.SKU: n/a -
Dimmers and power distribution
TecArt Dimmer Single Channel 5kW
The Single Dim is an Australian designed and manufactured high performance dimmer for the professional entertainment and production market. A number of options are available, the main option being the inclusion of an LED display and keypad, to enable extended functionality. The unit has a slider for local dimming or the option of DMX control.
FEATURES
• 25A thermal-magnetic circuit breaker protection of outputs.
• DMX status LED.
• Dimmer curves.
• DMX-512 control.
• High rise time toroidal chokes.
• Single phase operation.
• High performance SSR devices.
• Supplied with standard 20A outlet and power feed cable.SKU: n/a -
Dimmers and power distribution
TecArt Dimmer Single Channel 6kW
TV / Film dimmers are specially designed to handle the high inrush currents which many luminaires require.
Rugged housings and top-quality componentry ensure a long, hard working life for all our dimmers.
FEATURES
• 63A thermal-magnetic circuit breaker protection of outputs.
• DMX status LED.
• DMX-512 control.
• High rise time toroidal chokes.
• Single phase operation.
• High performance SSR devices.
• Supplied with 32A CEE Form input & output plugs.SKU: n/a -
Dimmers and power distribution
TecArt Dimmer Single Channel Hand Squeezer
The TecArt Hand Squeezer is an Australian designed high performance 1K dimmer for the professional entertainment and film production market.
FEATURES
• Ready for all types of tungsten lamps.
• Rubber enclosure.
• On, off, bypass switch.
• Australian plug and socket.SKU: n/a -
Dimmers and power distribution
TecArt Dimmer VS Rack Mount 12 channel 2.5kW
The TecArt series of 19” rack-mount dimmer racks are an Australian designed and manufactured high-performance dimmer rack for the professional entertainment and production market. The unit features dimmer curves and full 512 channel start address.
FEATURES
• Thermal-magnetic circuit breaker protection of outputs.
• DMX status LED and phase 1/2/3 LEDs.
• LED indicators for channel operation.
• Seven-segment display.
• Dimmer curves.
• Simple test functions per channel built-in.
• DMX-512 control.
• High rise time toroidal chokes.
• Single or three phase operation.
• Internal quiet fan with microprocessor auto control.
• Easy to change Triacs/SSRs.
• Available with standard 10A outlets, Weiland, Socapex or hard wired.
• Supplied with 1.5m mains cable and plug.SKU: n/a -
Dimmers and power distribution
TecArt Dimmer VS Rack Mount 6 channel 5kW
The TecArt series of 19” rack-mount dimmer racks are an Australian designed and manufactured high-performance dimmer rack for the professional entertainment and production market. The unit features dimmer curves and full 512 channel start address.
FEATURES
• Thermal-magnetic circuit breaker protection of outputs.
• DMX status LED and phase 1/2/3 LEDs.
• LED indicators for channel operation.
• Seven-segment display.
• Dimmer curves.
• Simple test functions per channel built-in.
• DMX-512 control.
• High rise time toroidal chokes.
• Single or three phase operation.
• Internal quiet fan with microprocessor auto control.
• Easy to change Triacs/SSRs.
• Available with standard 10A outlets, Weiland, Socapex or hard wired.
• Supplied with 1.5m mains cable and plug.SKU: n/a -
Dimmers and power distribution
TecArt Dimmer VS Wall Mount 12 channel 2.5kW
The TecArt series of wall dimmers are an Australian designed and manufactured high-performance dimmer rack for the professional entertainment and production market. The unit features dimmer curves and full 512 channel start address.
FEATURES
• Thermal-magnetic circuit breaker protection of outputs.
• DMX status LED and phase 1/2/3 LEDs.
• LED indicators for channel operation.
• Seven-segment display.
• Dimmer curves.
• Simple test functions per channel built-in.
• DMX-512 control.
• High rise time toroidal chokes.
• Single or three phase operation.
• Internal quiet fan with microprocessor auto control.
• Easy to change Triacs/SSRs.
• Available with or without standard 10A outlets.
• Mains cable and plug available on request.SKU: n/a
