Enlargers and copy stands

Wide and extremely vibration-resistant column of aluminium tubing with dull black anodized surface and cm and inch scales.

• With mount and fastening mechanism for camera arms and for lower part enlarger head 4568.
• Height adjustment by hand crank.
• Cross-sectional dimensions of the column: 70 x 35 mm (2.8 x 1.4 in.)

For insertion into 4583 compound negative carrier of SYSTEM-V enlargers and for former 4483 and 4493 compound negative carrier.

• Also for the holding devices FilmCopy Vario and FilmCopy Vario Kit.
• Pairs of masks with antistatic finish.
• Dimensions: approx. 100 x 72.5 mm (3.9 x 2.9 in.)
• Format masks 24 x 36 mm (35 mm) (a + b).
• With guide ridges for film strips and neg number read-out window.

For insertion into 4583 compound negative carrier of SYSTEM-V enlargers and for former 4483 and 4493 compound negative carrier. Also for the holding devices FilmCopy Vario and FilmCopy Vario Kit.

• Pairs of masks with antistatic finish.
• Dimensions: approx. 100 x 72.5 mm (3.9 x 2.9 in.)
• 4491: Format masks 24.5 x 36.5 mm (35 mm) (a + b).
• To enlarge or photograph a black border around the picture.
• With guide ridges for film strips and neg number read-out window.

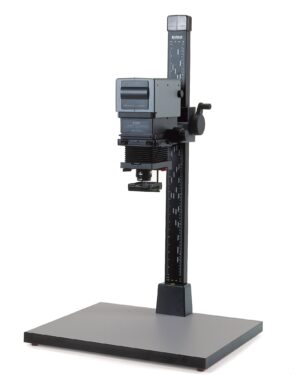

B & W enlarger for all film formats up to 6 x 9 cm (2.4 x 3.5 in.) and lenses up to 105 mm focal length.

• Compound negative carrier fitted with Anti-Newton glass on top and flat glass on bottom, additional format mask 6 x 7 cm.
• Focusing with additional fine drive.
• Height adjustment with weight compensation by a roll-off spring mechanism.
• Filter holder for square filters and framed Multigrade filters, can be swung out and adjusted in height, with diffusor plate for integral metering.
• Baseboard (WxDxH): approx. 600 x 500 x 32 mm (23.6 x 19.7 x 1.3 in.)

B & W Enlargers SYSTEM-V
General specifications:

• Lamp head with 75 W opal lamp, lamp adjustable.
• Exchangeable double condensor system.
• Filter drawer for e.g. Multigrade Filter.
• Removable compound negative carrier with interchangeable inserts, adjustable masking strips, adjustable film stops and grid pins.
• Lens stage with spirit level and red filter, tiltable for distortion correction on Scheimpflug principle.
• Quick change attachment for lenses.
• Height adjustment by hand-crank operated friction drive on plastic bearings.
• Wall and floor projection possible.
• Wide, vibration-resistant column of embossed aluminium tubing, with dull black anodized surface, cm and inch scales and markings for enlarging scales.
• Matt-gray laminated baseboard with individually height-adjustable feet.
• Spirit level on column base.

Technical specifications:
Lamp: Opal lamp 75 W, E 27 socket
Cord: approx. 2.50 m (8 ft. 2 in.)
Filter drawer: 85 x 85 mm (3.3 x 3.3 in.)
Column (HxWxD): approx. 1000 x 70 x 35 mm (39.4 x 2.8 x 1.4 in.)
Distance between optical axis and column base: approx. 220 mm (8.7 in.)
Can be converted into a copy stand.
Scope of supply: Incl. compound negative carrier, lamp, two lens holder rings and dust hood, without lens.

(Replacement lamp: 4356)
