For mounting a column with 70 x 35 mm (2.8 x 1.4 in.) cross section to table boards or work plates or on a 5712 copy table or a 5630 table frame.

• Built-in spirit level.
• Includes fastening screw for the column and installation material (metal counter plate and four M6x40 screws for boards from 28 to 32 mm (1.1 x 1.3 in.) thickness).

For insertion into the 4583 compound negative carrier of SYSTEM-V enlargers and for former 4483 and 4493 compound negative carrier.

Also for the holding devices FilmCopy Vario and FilmCopy Vario Kit. Pair of inserts. Format mask with antistatic finish.
Dimensions: approx. 100 x 72.5 mm (3.9 x 2.9 in.)

For all Kaiser enlargers.

For filter inserts size 8.5 x 8.5 cm (3.3 x 3.3 in.), e.g. Multigrade?-Filter.

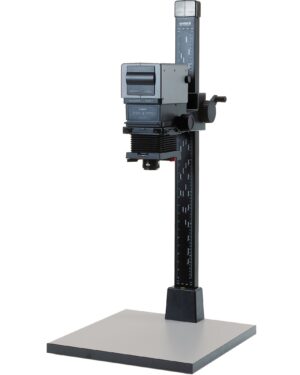

B & W enlarger for all film formats up to 6?x 6 cm (2.4 x 2.4 in.) and lenses up to 80 mm focal length.

• Can be converted to formats up to 6 x 9 cm.
• Compound negative carrier fitted with Anti-Newton glass on top and 6 x 6 format mask on bottom, additional pair of masks 24 x 36 mm (35 mm).
• Baseboard (WxDxH): approx. 450 x 500 x 28 mm (17.7 x 19.7 x 1.1 in.)
• Lamp head with 75 W opal lamp, lamp adjustable.
• Exchangeable double condensor system. Filter drawer for e.g. Multigrade^? Filter.

• Removable compound negative carrier with interchangeable inserts, adjustable masking strips, adjustable film stops and grid pins.
• Lens stage with spirit level and red filter, tiltable for distortion correction on Scheimpflug principle.
• Quick change attachment for lenses.
• Height adjustment by hand-crank operated friction drive on plastic bearings.
• Wall and floor projection possible.
• Wide, vibration-resistant column of embossed aluminium tubing, with dull black anodized surface, cm and inch scales and markings for enlarging scales.
• Matt-gray laminated baseboard with individually height-adjustable feet.
• Spirit level on column base.


Technical specifications:

• Lamp:?Opal lamp 75 W, E 27 socket
• Cord:?approx. 2.50 m (8 ft. 2 in.)
• Filter drawer:?85 x 85 mm (3.3 x 3.3 in.)
• Column (HxWxD):?approx. 1000 x 70 x 35 mm (39.4 x 2.8 x 1.4 in.)
• Distance between optical axis and column base:?approx. 220 mm (8.7 in.)
• Can be converted into a copy stand.
• Scope of supply: Enlarger incl. compound negative carrier, Anti-Newton glass, format mask 6 x 6 cm, pair of format masks 35 mm (24 x 36 mm), lamp, two lens holder rings and dust hood, without lens.


(Replacement lamp: 4356)
