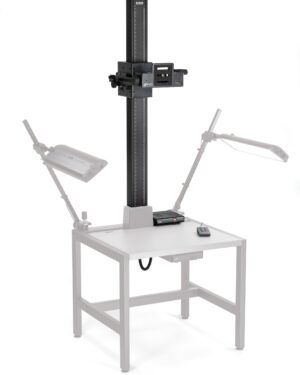

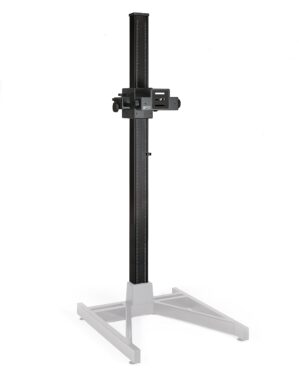

Extremely sturdy column, made of a multi-section special extrusion, black anodized, with printed cm and inch scales.

• Camera carrier with motorized height adjustment.
• Two travel speeds, independent of load.
• Self-limiting worm gear: any height position is exactly held.
• Automatic end switch by magnet sensor.
• Cable remote control.
• Camera carrier made of die-cast aluminium, horizontally adjustable by parallel guides with friction drive and hand cranks for right-hand/left-hand operation.
• Two blocking screws.
• Camera mounting plate tiltable by +/- 90?.
• Built-in spirit level.

Specifications:
Total height: 216 cm (85 in.)
Column cross section: 120 x 80 mm (4.7 x 3.1 in.)
Maximum load: 15 kg (33 lbs.)
Camera platform: 13 x 13 cm (5.1 x 5.1 in.)
Connecting thread (interchangeable): 1/4? / 3/8?

Accessories

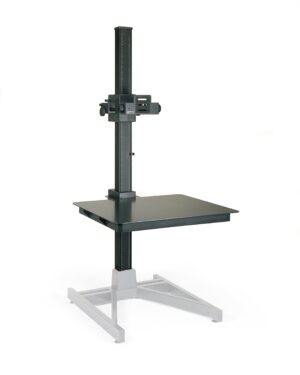

Heavy-duty copy stand for analogue and digital image capturing work with two-level motor-driven adjustment.

• Accepts originals up to 100 x 80 cm (39.4 x 31.5 in.).
• Extremely sturdy column, made of a multi-section special extrusion, black anodized, with printed cm and inch scales.
• Column foot made of double strutted steel tube.
• Steel socket for bolting the column.
• Four levelling feet.
• Detachable base board made of 4 mm aluminium with stabilizing substructure.
• Camera carrier made of die-cast aluminium, horizontally adjustable by parallel guides with friction drive and hand cranks for right-hand/left-hand operation.
• Two blocking screws.
• Camera mounting plate tiltable by +/- 90?. Built-in spirit level.

• Camera carrier and base board with individual motorized height adjustment.
• Two travel speeds, independent of load.
• Self-limiting worm gear: any height position is exactly held.
• Automatic end switch by magnet sensor.
• Anti-collision device.

• Cable remote control.


Specifications:

• Total height: 227 cm (89.4 in.)
• Maximum working span: 160 cm (63 in.)
• Column cross section: 120 x 80 mm (4.7 x 3.1 in.)
• Maximum load on camera carrier: 10 kg (22 lbs.)
• Maximum load on base board: 15 kg (33 lbs.)
• Base board: 100 x 80 cm (39.4 x 31.5 in.)
• Camera platform: 13 x 13 cm (5.1 x 5.1 in.)
• Connecting thread (interchangeable): 1/4? / 3/8?
• Required floor space (WxD) : 100 x 126 cm (39.4 x 49.6 in.)

Accessories

Holding device with glass pressure plate for the exact positioning when doing copy work from books, magazines and newspapers.

In the photo lab the book holder is also suitable for making contact prints from negatives on photographic paper and for alternative photographic processes using contact printing.

Solid base plate with non-slip coating on top and non-slip feet underneath. 6 mm (0.2 in.) thick glass pressure plate, foldable and variable in height. To work more ergonomically, more efficiently and original-friendly at a particular height, you can lock the glass pressure plate into a position between 0 and 145 mm (5.7 in.).

Several 28 x 18 cm (11 x 7.1 in.) preformed foam elements of various thickness are used to compensate for the height of an open book.

Black cardboard sheets can be placed under the page you want to copy so that the print on the back side or subjacent side cannot shine through the paper. ?

5771: Book Holder 44/41
With high-quality, color-neutral crystal glass pressure plate.

• For formats up to: 44 x 41 cm (17.3 x 16.1 in.)
• Maximum height of original (book etc.): 145 mm (5.7 in.)
• Dimensions (WxHxD): 52.9 x 22.6 x 44.4 cm (20.8 x 8.9 x 17.5 in.)Comes with 8 preformed foam elements (2 x 20 mm / 0.8 in., 2 x 10 mm / 0.4 in., 4 x 5 mm /0.2 in. thick) and 2 black A4 cardboard sheets (29.7 x 21 cm / 11.7 x 8.3 in.).
