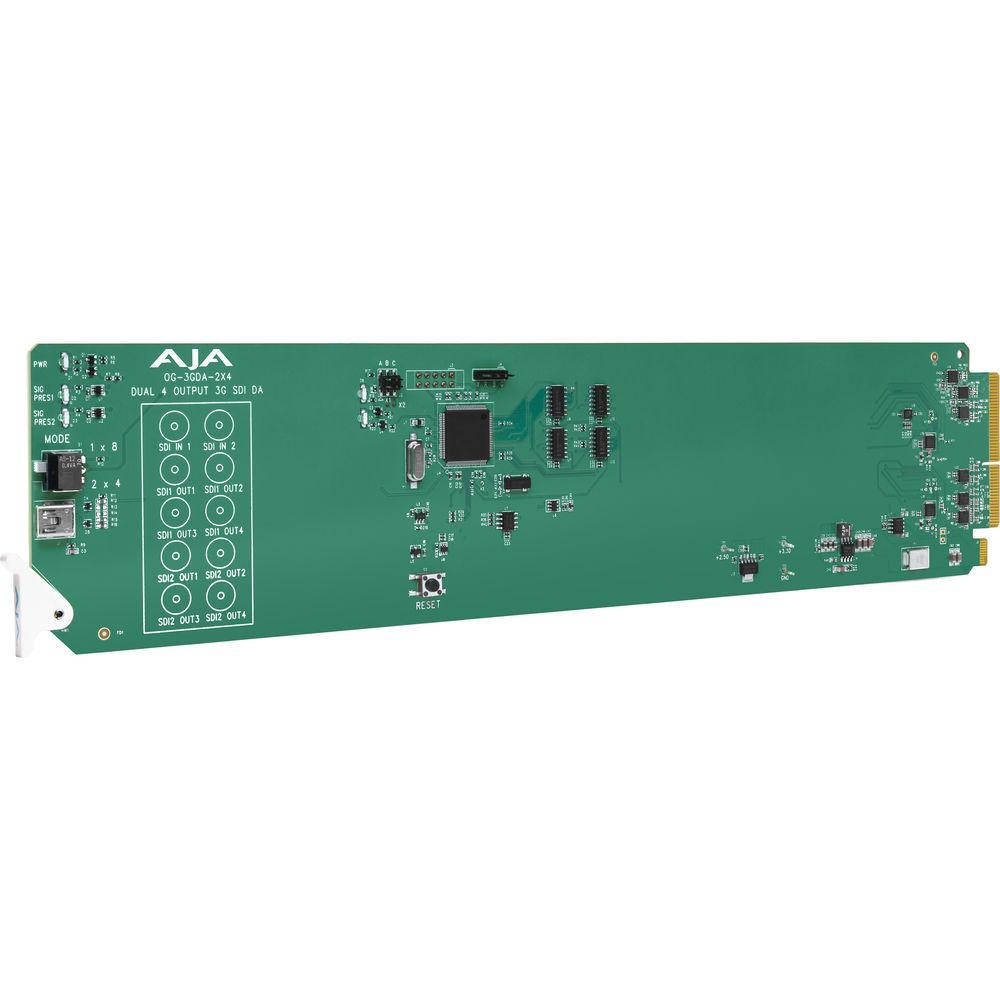

AJA 2X4 3G-SDI Distribution Amplifier Card

AJA 2X4 3G-SDI Distribution Amplifier Card

AJA

Video Formats 150 Mbps – 3 Gbps, format agnostic
Video Input Digital 1x 3G-SDI BNC (1×8 mode), SMPTE-259/292/424
2x 3G-SDI BNC (2×4 mode), SMPTE-259/292/424
Video Output Digital 8x 3G-SDI BNC, SMPTE-259/292/424
4x outputs noninverting (1×8 mode)
2x outputs noninverting for each DA (2×4 mode)
Cable Equalisation (Belden 1694A coax) 270 Mbps, 350m
1.5 Gbps, 200m
3 Gbps, 120m
Reclocking 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
All other rates are passed through and not reclocked
User Controls openGear DashBoard network control software via Windows, macOS or Linux
Size (w x d x h) openGear standard form-factor, front slot and rear card
Slots: Two slots required for each card
Weight 0.5 lb (0.3 kg)
Power openGear frame compatible, 2.6 watts max per card
Environment Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

$1,335.00

The AJA 2X4 3G-SDI Distribution Amplifier Card is an openGear compatible, state of the art 3G-SDI distribution amplifier. The incoming 3G-SDI signals on the input channels are automatically equalized and the outputs are automatically reclocked to four 3G-SDI outputs each or alternatively can function as a 1x 8-channel DA, allowing the same signal to be sent to eight destinations simultaneously. This dual input capability allows double the number of DAs in limited frame space.

SKU: AJA-OG-3GDA-2X4 Category: Brand:
