AJA FiDO-2T Dual Channel SD/HD/3G SDI to Optical Fibe

AJA FiDO-2T Dual Channel SD/HD/3G SDI to Optical Fibe

AJA

Formats
3Gb, 1.5Gb, 270Mb, Auto Select

Video Inputs and Outputs
SDI (SMPTE 259/292/296/424), 2x BNC
1x Single mode optical fiber, LC connector (FiDO-R, FiDO-T)
1x Single mode optical fiber, ST connector (FiDO-T-ST, FiDO-R-ST)
1x Single mode optical fiber, SC connector (FiDO-T-SC, FiDO-R-SC)
2x Single mode optical fiber, LC connectors (FiDO-2R, FiDO-2T, FiDO-TR)

Cable Equalization
(BNC Inputs, 1694 coax)
270mb, 400m
1.5Gb, 200m
3Gb, 140m

Input/Output Return Loss (BNC)
>15db, 270Mb – 3Gb

Optical Outputs
Wavelength: 13 10 nm
Output Power: -2dBm typical

Size
4.6″ x 1.71 ” x.85″ (117 x 43.5 x 21.6mm)

Power
+5-20 VDC
1.5 watts (FiDO-T, FiDO-R, FiDO-T-ST, FiDO-R-ST, FiDO-T-SC, and FiDO-R-SC)
2.5 watts (FiDO-2R, FiDO-2T, FiDO-TR)
Requires Power Supply (AJA power supply model DWP-U-R1 included)

$1,620.00

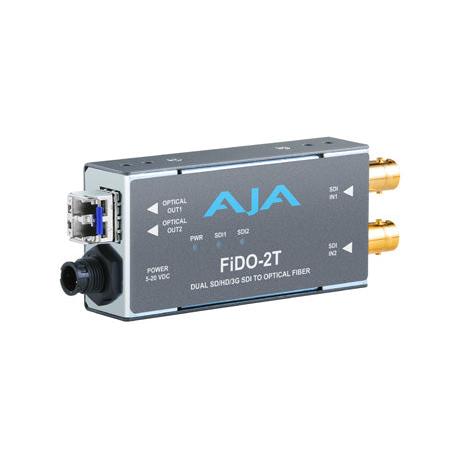

FiDO is a family of SDI/Optical Fiber converters. FiDO allows the transport of SDI, HD-SDI, and 3G SDI over distances up to 10km using standard single- mode fiber optic cable, with your choice of LC, ST, or SC connectors, depending on the converter model.

SKU: AJA-FiDO-2T Category: Brand:
