ChamSys GeNetix GN10

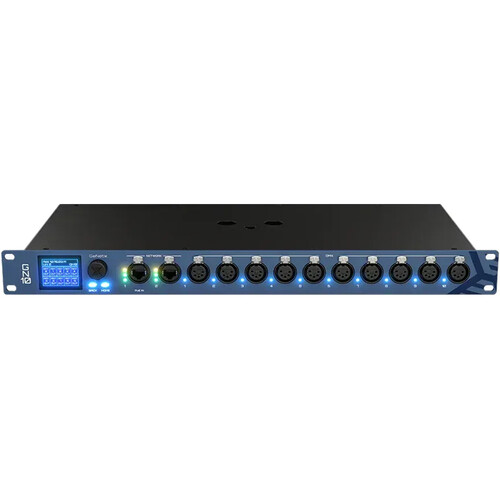

10 Configurable Ports: Ten 5-pin XLR ports that can be individually set as DMX inputs or outputs with configurable timings.
Protocol Support: Full support for Art-Net (v1–4), sACN, and RDM.
Advanced Synchronization: Supports LTC (Linear Timecode) and MIDI notes over Ethernet/ChamNet, ideal for syncing shows across long distances.
MagicQ PC Unlock: Unlocks MagicQ software into Full Unlocked Mode via USB or unlocks up to two instances via a network connection.
10Scene Support: Includes a dedicated 10Scene port for connecting ChamSys wall plates, allowing for simple scene recall without a console.

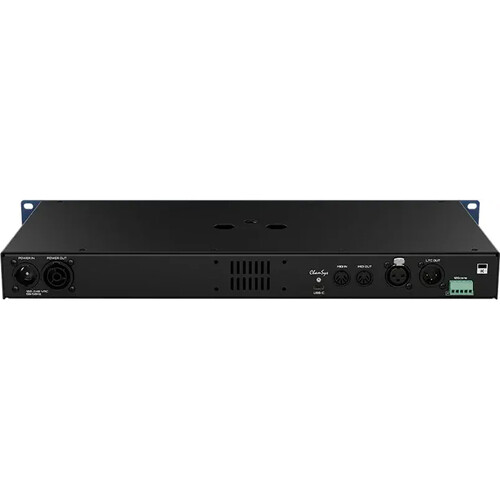

Power Redundancy: Can be powered via PoE (Power over Ethernet) or through its Neutrik powerCON TRUE1 input.
Flexible Mounting: 1U 19-inch rackmount design, but also includes an M12 thread for truss mounting and a DIN rail mount clip.
Local & Remote Control: Features an onboard display and encoder for quick local setup, or can be configured via an internal web server.
$2,829.59
The GeNetix GN10 is a multipurpose node that supports industry-standard protocols like Art-Net, sACN, and RDM. Beyond simple DMX distribution, it acts as a gateway for Timecode (LTC), MIDI, and 10Scene data. When connected via USB, it serves as a “dongle” that fully unlocks MagicQ PC software (Windows, Mac, or Linux), making it a powerful tool for both touring rigs and permanent installations.
