Data and DMX distribution

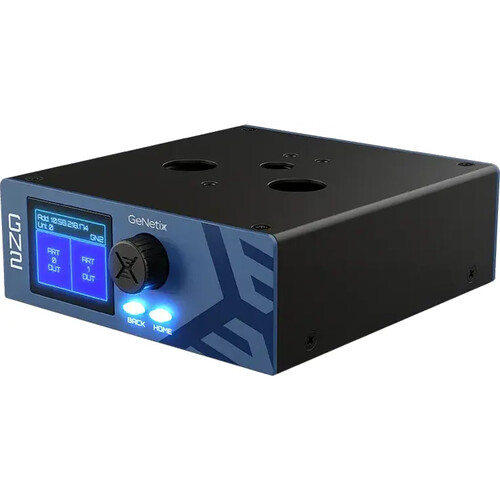

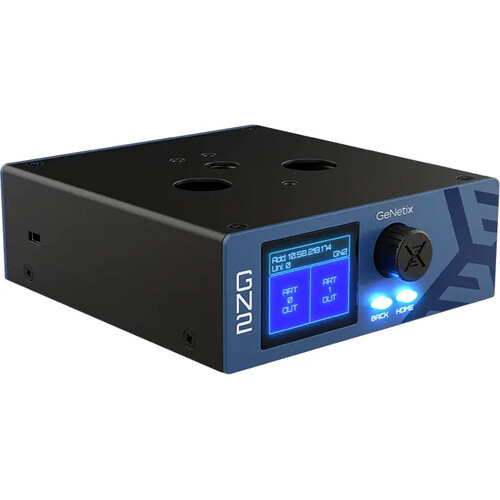

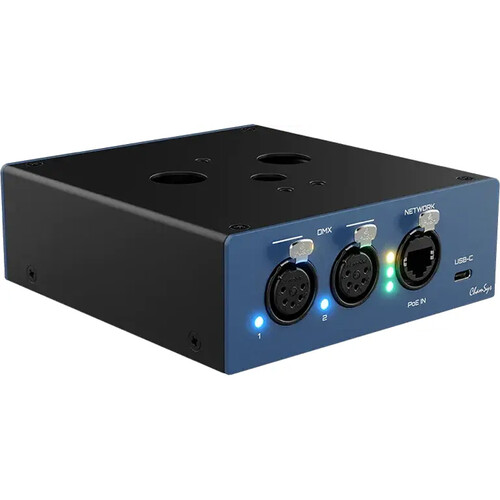

ChamSys Genetix GN2
Dual Mode Connectivity: Operates as a network node (Ethernet) or a USB interface for PC/Mac.

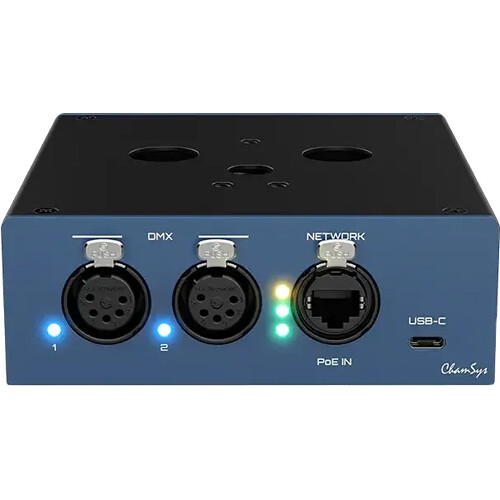

DMX Versatility: 2 RDM-enabled 5-pin XLR ports that can be individually configured as Input or Output.
Protocol Support: Full support for Art-Net (V1-V4), sACN, RDM, and ChamNet.
Flexible Power: Can be powered via Power over Ethernet (PoE) or through its USB-C port.

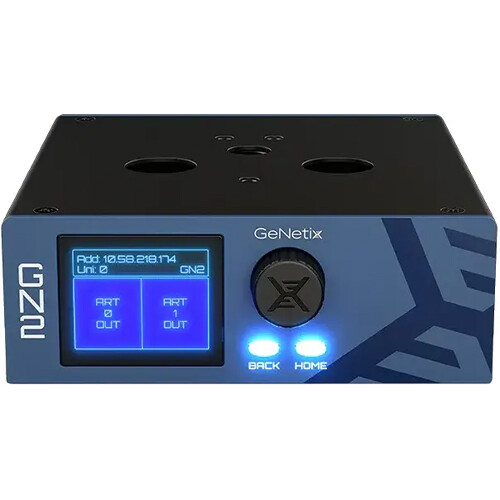

Local & Remote Control: Features an onboard display and encoder for quick local setup, or a built-in webserver for remote configuration.
Advanced Redundancy: Supports DMX Fallback and various merging options (HTP, LTP, Highest IP, etc.).
Stand-alone Scenes: Capability to store up to 10 static scenes for playback without a console.
$1,545.30
The GeNetix GN2 is a compact, multi-functional node compatible with any lighting console that supports Art-Net or sACN. It is particularly valuable for ChamSys users as it acts as a MagicQ PC interface, unlocking the software from “Demo Mode” into “Core Mode” (Reduced Mode) when connected via USB-C or Network. Its rugged design allows for versatile deployment?it can be used as a desktop unit, truss-mounted using its M12 receiver, or installed in a rack or cabinet via the included DIN rail clip.
Related products
-
Data and DMX distribution
TecArt RDM Toolbox in a Pelican Case
The TecArt RDM Toolbox is a diagnostic tool for professional lighting technicians.
FEATURES
• DMX Transmit and Receive (512 channels).
• DMX Testing.
• Remote DMX Addressing (with compatible luminaires).
• RDM Discovery.
• RDM Query and Device Configuration.
• RDM Monitoring.
• Rugged Pelican™ Water and Dust-resistant Case.
• Battery-powered.SPECIFICATIONS
• Supply: 240VAC.
• Internal Battery: Rechargeable.
• DMX In/Out: 5-pin XLR.SKU: n/a -
Data and DMX distribution
TecArt ArtNode 1 – 1 Universe
The ArtNode 1 is a Wi-Fi ArtNet to dual-purpose DMX node for architectural and entertainment lighting control applications.
FEATURES
• Multi mode: ArtNet to DMX, DMX to ArtNet.
• External power supply 9-24VDC (supplied separately).
• Robust housing.
• 2 main indication LEDs.SPECIFICATIONS
• Input Voltage: 9–24VDC.
• Power: 6VA (at 24VDC).
• Dimensions (mm): 117 L x 115 W x 53 H.
• Mounting Options: Desk-mount.
• DMX Input/Output: 5-pin XLR.
• Operating Temperature: 0 – +40°C.SKU: n/a -
Data and DMX distribution
TecArt Splitter DIN Rail RDM 4 way
The TecArt range of data splitters are available as DIN Rail mountable units.
Each output has a separate driver and opto-isolator to ensure the highest possible level of protection.
The unit is available as a standard DMX splitter or with the option of RDM.
RDM compliant device “ANSI/ESTA E1.20 Entertainment Technology – Remote Device Management over USITT DMX512”.
RDM or Remote Device Management is a protocol enhancement to DMX512 that allows Bi-directional communications between light fixtures and lighting consoles or RDM specific software over a standard DMX line.
DMXS4DR can be supplied with an external 12 – 48VDC power supply.
FEATURES
• DMX-512 In/Out/Thru.
• External Power Supply 12 – 48VDC.
• Terminal Strip Output and Input Connector.
• 2 Main indication LEDs.SPECIFICATIONS
• Input voltage: 12 – 48VDC.
• Power supply: External.
• Total power: 6W @ 24VDC.
• Dimension: 105mm (L) 85mm (W) 60mm (H).
• Mounting method: DIN Rail.
• DMX signal input: Terminal block.
• DMX signal output: Terminal block.
• Outputs: 4 Opto isolated.
• Temperature: 0 – 40 degree Celsius.SKU: n/a -
-
Data and DMX distribution
TecArt Splitter Truss Mount RDM 4 way
The TecArt range of data splitters are available as truss mount units.
The units are available with a choice of 3 or 5 pin connectors and have 4 outputs. Each output has a separate driver, opto-isolator and power supply to ensure the highest possible level of protection.
The unit is available as a standard DMX splitter or with the option of RDM.
RDM compliant device “ANSI/ESTA E1.20 Entertainment Technology – Remote Device Management over USITT DMX512”.
RDM or Remote Device Management is a protocol enhancement to DMX512 that allows Bi-directional communications between light fixtures and lighting consoles or RDM specific software over a standard DMX line.
SKU: n/a
