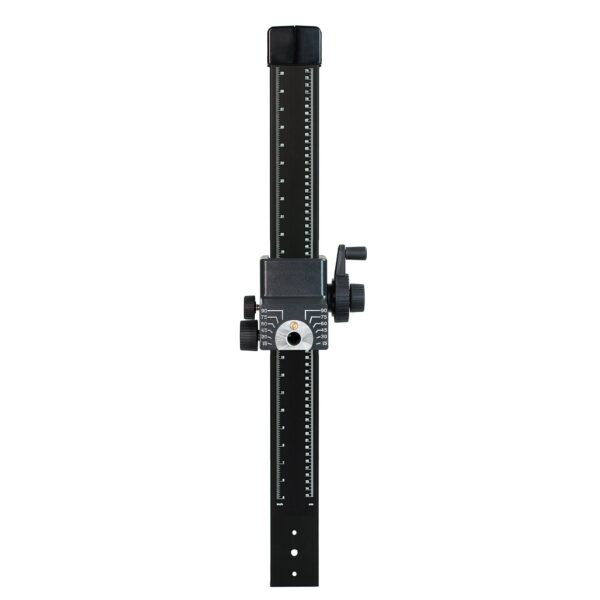

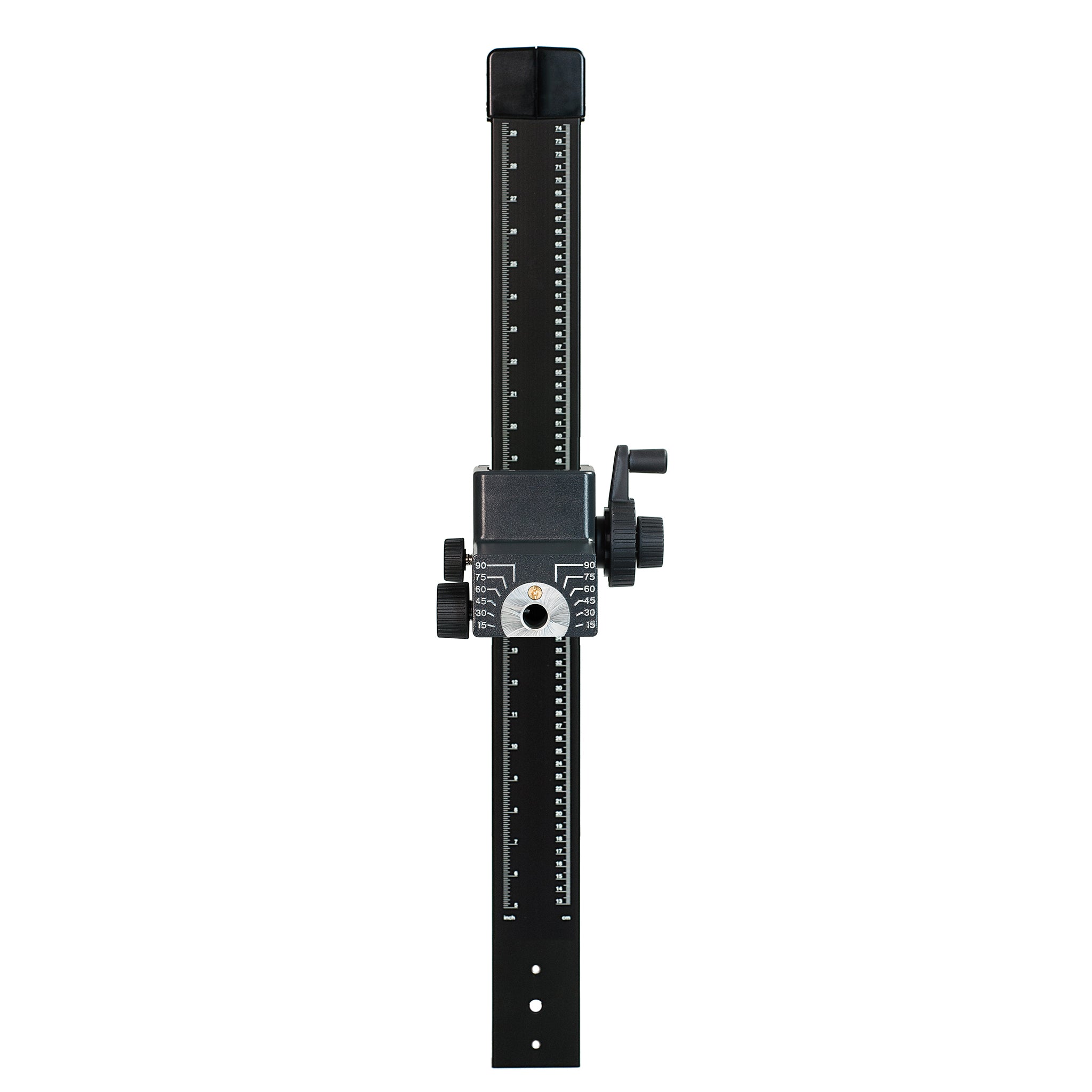

Kaiser Fototechnik 4407 Column 0.8m
Wide and extremely vibration-resistant column of aluminium tubing with dull black anodized surface and cm and inch scales.
- With mount and fastening mechanism for camera arms and for lower part enlarger head 4568.
- Height adjustment by hand crank.
Cross-sectional dimensions of the column: 70 x 35 mm (2.8 x 1.4 in. - Height adjusted by gear rack, with weight compensation by built-in roller spring, additional 1:6 fine drive.
- Locking screw for fixing height adjustment. Height: 80 cm (31.5 in.)
$2,155.00
Related products
-
Enlargers and copy stands
Kaiser Fototechnik 4472 Base Board 450 x 500 mm
Matt-gray base board with column base fixed for attaching column.
Spirit level in column base. Individually height-adjustable feet.
Dimensions (WxHxD):
4472: approx. 450 x 28 x 500 mm (17.7 x 1.1 x 19.7 in.)
4413: approx. 600 x 32 x 500 mm (23.6 x 1.3 x 19.7 in.)
4414: approx. 800 x 32 x 600 mm (31.5 x 1.3 x 23.6 in.)
(Dimensions without base and feet)SKU: KFO-KF-4472 -
Enlargers and copy stands
Kaiser Fototechnik 5771 Book Holder 44/41
Holding device with glass pressure plate for the exact positioning when doing copy work from books, magazines and newspapers.
In the photo lab the book holder is also suitable for making contact prints from negatives on photographic paper and for alternative photographic processes using contact printing.
Solid base plate with non-slip coating on top and non-slip feet underneath. 6 mm (0.2 in.) thick glass pressure plate, foldable and variable in height. To work more ergonomically, more efficiently and original-friendly at a particular height, you can lock the glass pressure plate into a position between 0 and 145 mm (5.7 in.).
Several 28 x 18 cm (11 x 7.1 in.) preformed foam elements of various thickness are used to compensate for the height of an open book.
Black cardboard sheets can be placed under the page you want to copy so that the print on the back side or subjacent side cannot shine through the paper. ?
5771: Book Holder 44/41
With high-quality, color-neutral crystal glass pressure plate.- For formats up to: 44 x 41 cm (17.3 x 16.1 in.)
- Maximum height of original (book etc.): 145 mm (5.7 in.)
- Dimensions (WxHxD): 52.9 x 22.6 x 44.4 cm (20.8 x 8.9 x 17.5 in.)Comes with 8 preformed foam elements (2 x 20 mm / 0.8 in., 2 x 10 mm / 0.4 in., 4 x 5 mm /0.2 in. thick) and 2 black A4 cardboard sheets (29.7 x 21 cm / 11.7 x 8.3 in.).
5774: Book Holder 69/50 AR (with anti-reflective coating)
With extra white glass pressure plate with anti-reflective coating on both sides. The optical interference coating ensures high color neutrality and minimum residual reflection (< 0.5 %).- For formats up to:? 69 x 50 cm (27.2 x 19.7 in.), e.g. also for Berlin or Swiss format newspapers (opened size 630 x 470 mm / 24.8 x 18.5 in. resp. 640 x 475 mm / 25.2 x 18.7 in.)
- Maximum height of original (book etc.): 145 mm (5.7 in.)
- Dimensions (WxHxD): 76.9 x 22.6 x 55.4 cm (30.3 x 8.9 x 21.8 in.)
- Comes with 16 preformed foam elements (4 x 20 mm / 0.8 in., 4 x 10 mm / 0.4 in., 8 x 5 mm /0.2 in. thick) and 4 black cardboard sheets: 2 x A4 (29.7 x 21 cm / 11.7 x 8.3 in.) and 2 x A3 (42 x 29.7 cm / 16.5 x 11.7 in.).
Subject to errors and technical changes.
SKU: KFO-KF-5771 -
Enlargers and copy stands
Kaiser Fototechnik 4474 Column 1 m
Wide and extremely vibration-resistant column of aluminium tubing with dull black anodized surface and cm and inch scales.
- With mount and fastening mechanism for camera arms and for lower part enlarger head 4568.
- Height adjustment by hand crank.
- Cross-sectional dimensions of the column: 70 x 35 mm (2.8 x 1.4 in.)
SKU: KFO-KF-4474 -
Enlargers and copy stands
Kaiser Fototechnik 5244 Illumina base plate exe.cutive LED
Can be combined with components of the Kaiser R1 system.
- Trans-illuminator with 270 SMD LEDs, 5600 Kelvin daylight, color rendering index (CRI) = 95, serviceable illuminated area 50.6 x 36 cm (19.9 x 14.2 in., > tabloid format), illuminance approx. 8300 cd/m_, brightness continuously dimmable, flicker-free operation.
- Mounting fixtures for optional RB 5270 DX (5278) and RB 525 AS (5284) surface lighting units.
- Height-adjustable feet.
- Column base with spirit level for 70 mm (2.8″) wide column.
- Dust hood for column included.
- Outside dimensions (WxD): approx. 63 x 55 cm (24.8 x 21.6 in.)
SKU: KFO-KF-5244 -
Enlargers and copy stands
Kaiser Fototechnik 4478 Column, 1 m
Wide and extremely vibration-resistant column of aluminium tubing with dull black anodized surface and cm and inch scales.
- With mount and fastening mechanism for camera arms and for lower part enlarger head 4568.
- Height adjustment by hand crank.
- Cross-sectional dimensions of the column: 70 x 35 mm (2.8 x 1.4 in.)
4407: Height adjusted by gear rack, with weight compensation by built-in roller spring, additional 1:6 fine drive. Locking screw for fixing height adjustment. Height: 80 cm (31.5 in.)
In combination together with the?Metal Plate?5504?and the camera arm 5523 also useable as a Kaiser?Vertical Stand (see image no. 2, 3, 4).
4474: Height adjusted by friction gear with plastic bearings, weight compensated by built-in roller spring, height 1 m (40 in.)?4475: Height adjusted by gear rack with weight compensation by built-in roller spring, additional 1:6 fine drive. Locking screw for fixing height adjustment. Height 1 m (40 in.)?
In combination together with the?Metal Plate?5504?and the camera arm 5523 also useable as a Kaiser?Vertical Stand (see image no. 2, 3, 4).4476: same as 4475, but without fine drive.?
4478: With 2 mounts for camera arms. Height adjusted by gear rack, upper mount with weight compensation by built-in roller spring, both mounts with locking screw for fixing height adjustment. Height: 1 m (40 in.)
4408: Height adjusted by gear rack, weight compensated by built-in roller spring, locking screw for fixing height adjustment. Height 1.2 m (47 in.)?
4409: Height adjusted by friction gear with plastic bearings, weight compensated by built-in roller spring, locking screw for fixing height adjustment. Height: 1.5 m (60 in.)
?
SKU: KFO-KF-4478
