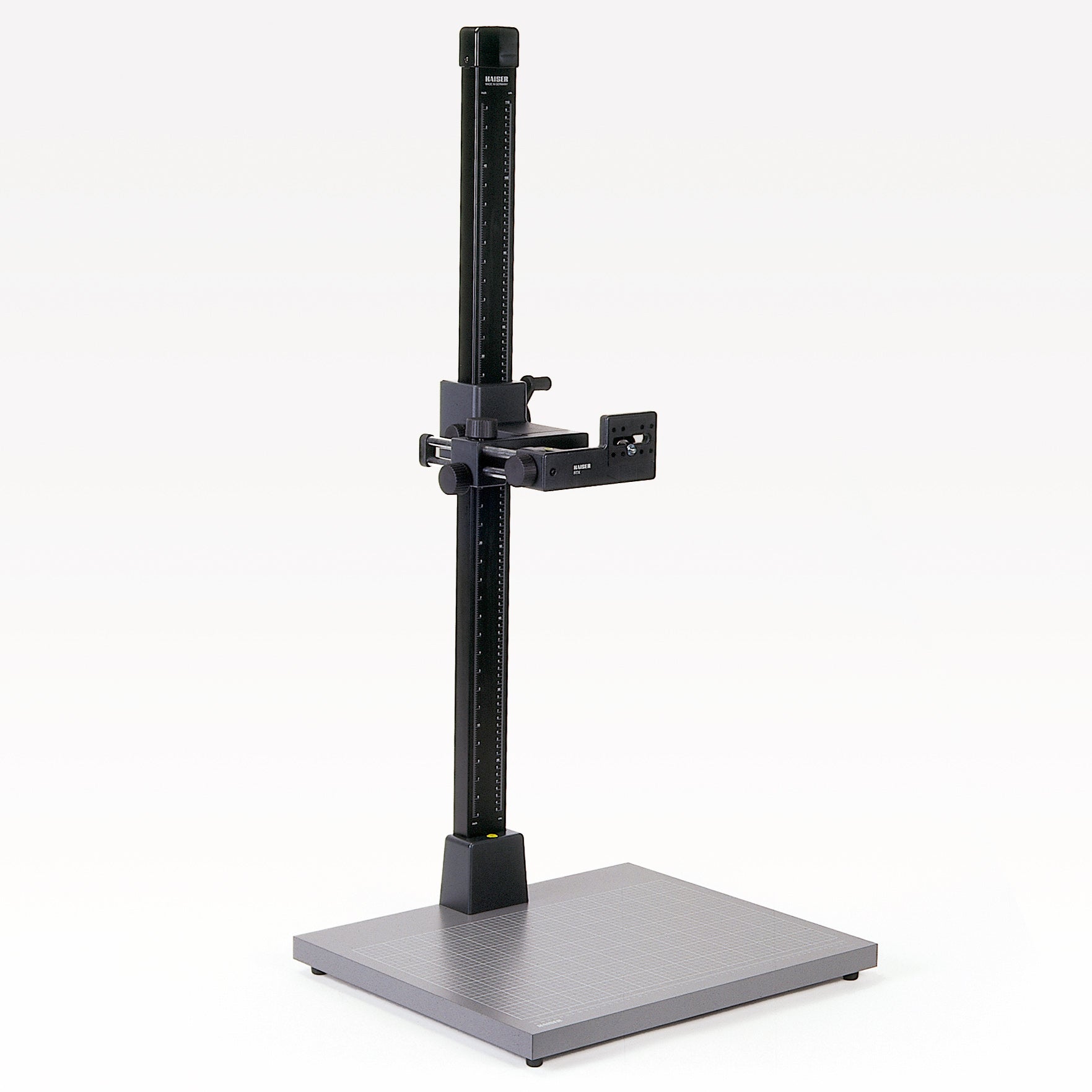

Kaiser Fototechnik 5512 Copy Stand RSX

Big non-reflecting matt grey baseplate with printed grid, cm and inch scale.

Feet adjustable in height.
Spirit level in column base.
Especially wide and low-vibration column made of matt black anodized aluminium tubing with cm and inch scale.
Height adjustment with hand crank and rack with extra weight compensation by integrated coil spring.
Blocking screw to stop accidental changing of height.
Column can be mounted rotated 180?.

With RTX camera arm (5522):

Camera carrier turns ? 90? and can be blocked in every position. With spirit level for fine adjustment.
Camera mount horizontally adjustable via parallel guides with fine adjustment.
Camera can be mounted on the inside or outside of the camera carrier. Mounting the camera on the inside of the camera carrier for landscape format produces images which are not upside-down. This is very convenient for comic, animation and stop-motion films.
The entire copy and titling arm is tiltable to allow for reproductions of vertical subjects.
With interchangeable 1/4″/ 3/8″ connecting thread.
Base board (WxHxD): approx. 600 x 500 x 32 mm (23.6 x 19.7 x 1.3 in.)
Height of column: approx. 1.20 m (4 ft.)
Maximum load: 3.5 kg (7.7 lbs.)

$2,800.00
