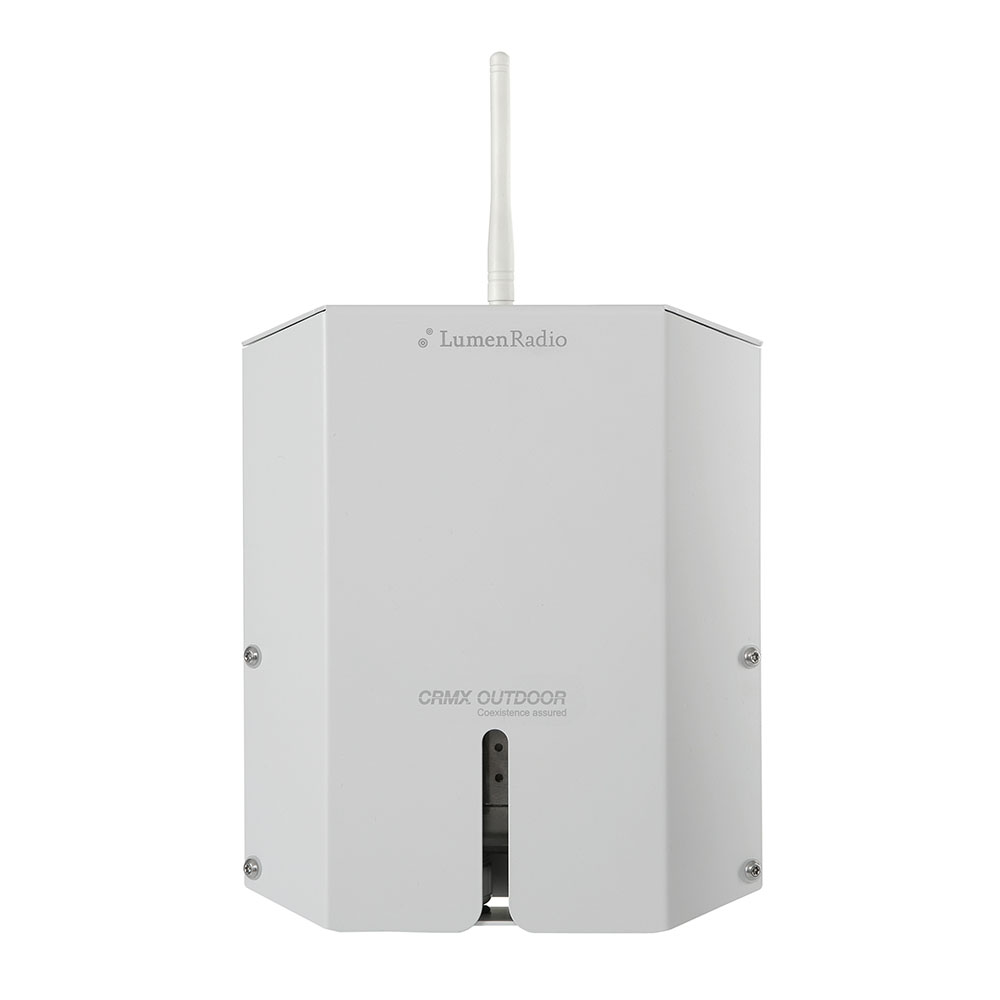

LumenRadio CRMX Outdoor RX IP67 RDM Receiver
CRMX Outdoor™ Receiver is an IP67 outdoor receiver for one (1) DMX universe being transmitted by a CRMX transmitter (indoor or outdoor). It supports one full RDM/DMX universe of up to 512 channels at maximum refresh rate.
CRMX Outdoor is an adaptation of the CRMX Nova™ product line for outdoor use and is compatible with other CRMX DMX/RDM products. CRMX Outdoor is the first RDM enabled wireless light control product both waterproof and vandal proof making it suitable for any outdoor installation.
CRMX Outdoor is the world’s first wireless DMX and RDM receiver for outdoor use that is designed to withstand many years of weather forces thanks to its unique combination of an IP67 rated housing and the vandal proof mounting cover.
$1,900.00
To fit in to old wireless systems with legacy equipment CRMX Outdoor Receiver is compatible with W-DMX™ transmitters. However when using it in this way you won’t get the benefits of the advanced CRMX technology.
Use the CRMX Outdoor Receiver together with a CRMX Outdoor Flex, CRMX Nova TX, CRMX Nova TX2, CRMX Nova TX2 RDM or any other CRMX transmitter.
CRMX Outdoor utilized the international license free ISM band (2.4GHz).
Supported protocols
USITT DMX512, DMX512(1990) & DMX512-A
RDM ANSI E1.20
Power
High voltage input: 85-264VAC / 47-70Hz / 3W
Overvoltage and ESD protected power input
Physical
Enclosure: IP67 vandal proof housing
Dimensions (W x H x D): 201 x 244 x 78 mm (7.9″ x 9.6″ x 3″)
Weight: 1.6kg, 3.5lbs
RF characteristics
Operational frequency range: 2402-2480 MHz
Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm)
Tested link range: 500m in urban area using 100mW output power mode
Connectors
DMX: Pluggable terminal strip, Phoenix® MSTB 2,5
Antenna: N female
AC: 13AWG Pluggable terminal block
