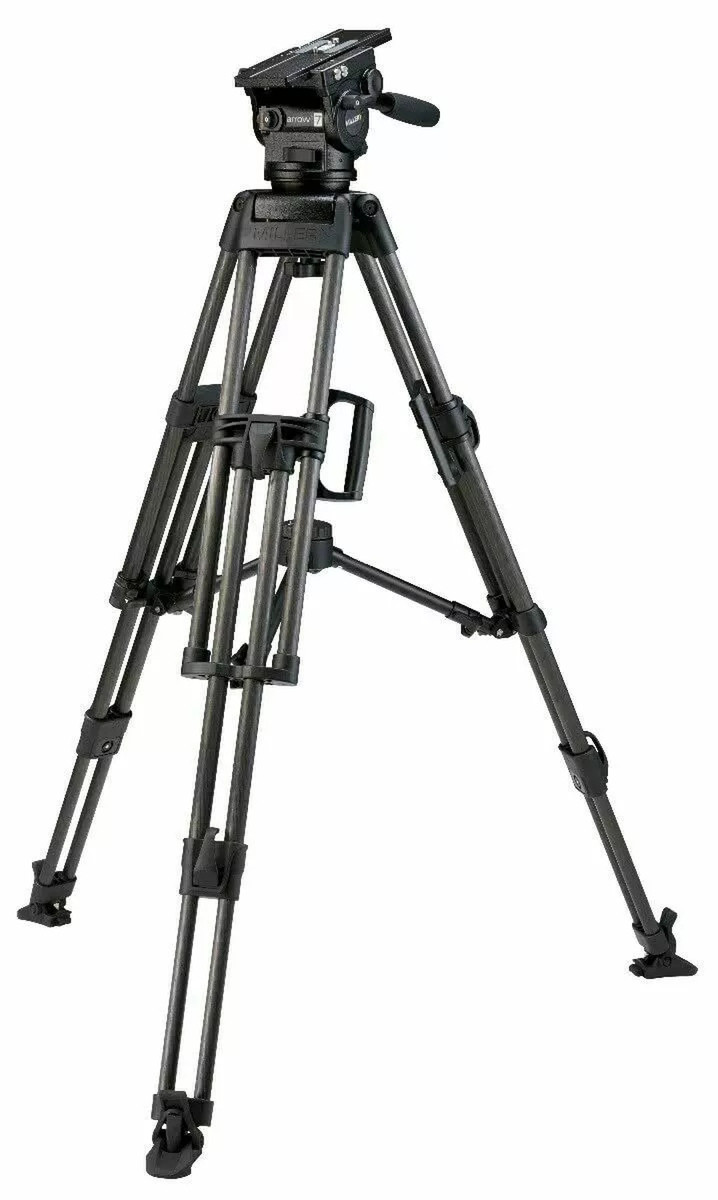

Miller 3179 ArrowX 7 HD 2-Stage Carbon Fibre Tripod System


The 3179 Carbon Fibre, Heavy Duty 2-stage Arrowx 7 system, fitted with mid-level spreader is designed for speed of setup, high level of stability, height range and flexibility of payloads, The mid-level spreader makes this system suitable for all terrains.
Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 7 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
6-25kg (13.2-55.1lbs) payload range and 7 + 0 selectable pan-tilt fluid drag positions make Arrowx 7 ideal for EFP, Studio and Field OB enabling it to be used with a wide range of cameras, lenses and accessories and offering.
The Arrowx 7 is matched with the HD 2 stage (carbon fibre) tripod and mid-level spreader which makes for one of the most solid system packages in the Miller range. The system can support EFP and OB applications and the mid-level spreader means system can be set up in all terrains.


Specification – Arrowx 7 HD 2 Stage Carbon Fibre

Payload Range 6.0-25.0kg (13.2-55.1lbs)
Weight 9.6kg (21.1lbs)
Height Range 642-1752mm(25.3-69.0″)
Transport Length 912mm (35.9”)
Counterbalance Positions 16 selectable positions
Pan Tilt Drag 7 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release camera plate (Euro)
Sliding Range 120mm (4.7″)
Mounting Base Ø100mm (3.9″) ball levelling
Height Above Bowl 162mm (6.4″)
Illuminated Controls Bubble level, pan-tilt drag controls
Pan Handle Telescopic 390-590mm (15.4-23.2″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage
Lock Type Flip lock
Leg Material Carbon fibre
1076 Arrowx 7 fluid head
925 HD 2-stage tripod (carbon fibre)
993 Mid-level spreader
475 Rubber feet (set of 3)
696 Pan handle – telescopic with clamp

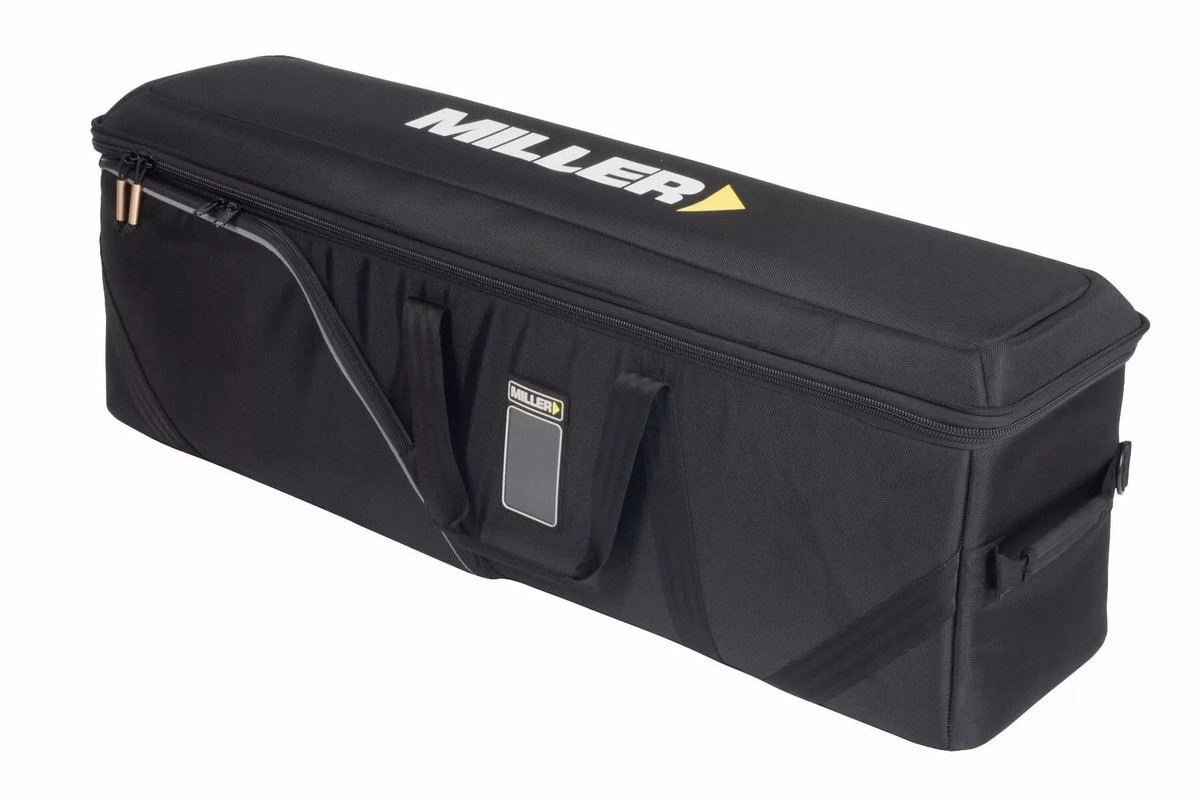

3534 Arrowx shell case on wheels
