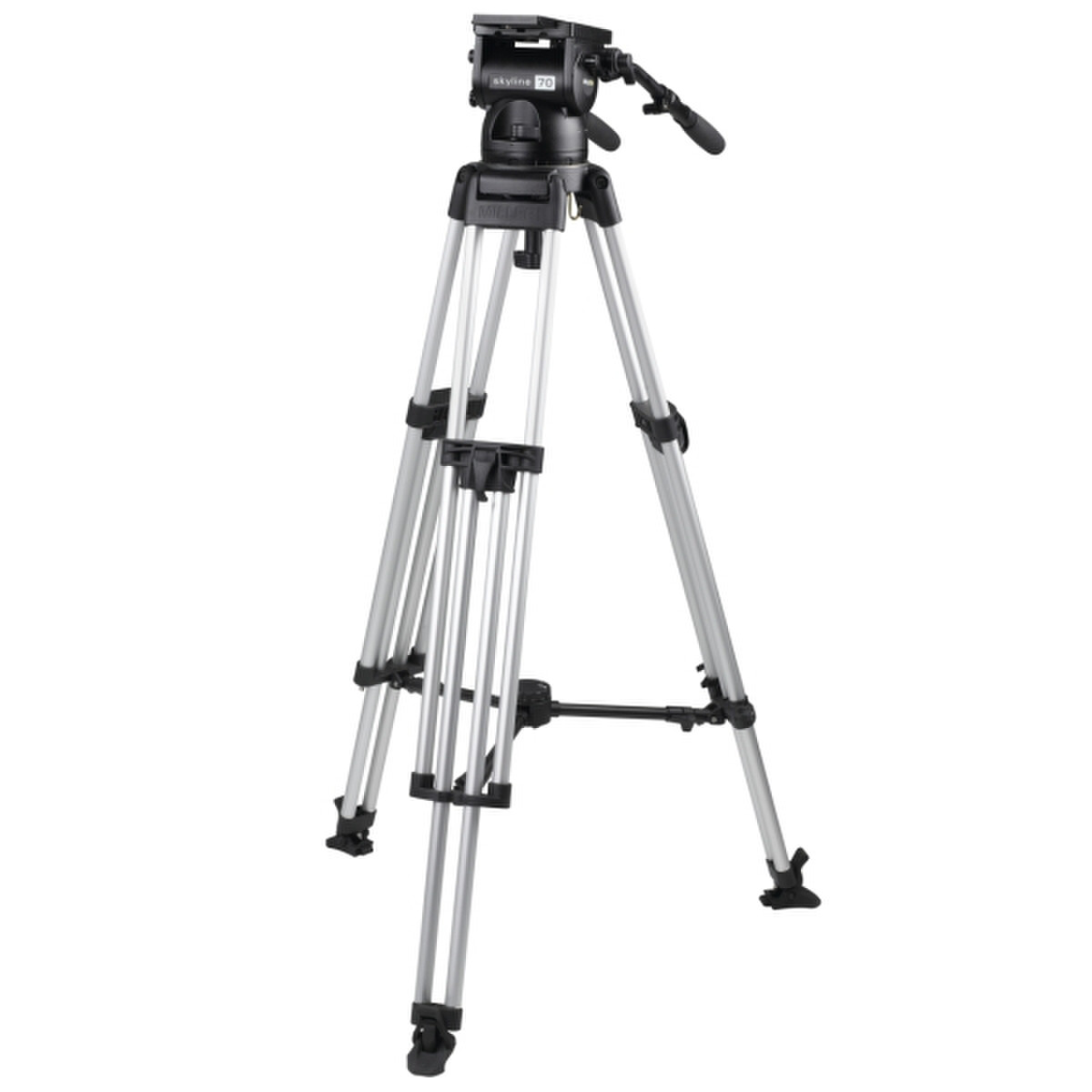

Miller Skyline 70 1STG AL Tripod System


The 2070 Skyline 70 Heavy Duty 1-Stage Alloy tripod system, with Mid level spreader, consists of Miller’s innovative 150mm fluid head and robust HD tripod, features include advanced precision drag and counterbalance systems controlled through a rear mounted illuminated ‘all in one location’ operating layout together with the strength and torsional rigidity of Alloy HD tripod make the skyline 70 system the most desirable system for professional Sports, Studio, EFP and Outside Broadcast production crews.
With an extended 7+0 position fluid drag system employing smooth start and soft stop technology, well balanced diagonal drag transition, 8 counterbalance settings plus 120mm camera plate balance travel, the Skyline 70 offers a fast reliable set up you can trust and is versatile enough to use over a wide array of camera configurations. It is built to deliver consistent performance and drag resistance with no variation over a wide range of temperatures and environments.


Specification – Skyline 70 HD 1 Stage Alloy

Payload Range 4.5-37.5kg (9.9-82.5lbs)
Weight 13.1kg (29.1lbs)
Height Range 990-1780mm (39-70.1″)
Transport Length 1130mm (44.5”)
Counterbalance Positions 8 selectable positions
Pan Tilt Drag 7 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release camera plate (large Euro)
Sliding Range 120mm (4.7″)
Mounting Base Ø150mm (5.9″) ball levelling
Height Above Bowl 190mm (7.5″)
Illuminated Controls Bubble level, pan-tilt drag & counter balance controls
Safety Lock Quick release tilt lock pin
Pan Handle 2 x HD Telescopic 430-630mm (16.9-24.8″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 1-stage
Lock Type Fliplock
Leg Material Alloy
1050 Skyline 70 fluid head
943 HD 150 1-stage tripod (alloy)
993 Mid-level spreader
475 Rubber feet (set of 3)
698 2 x Pan handle HD – telescopic with clamp
SKU: MIL-2070 Category: Brand:
