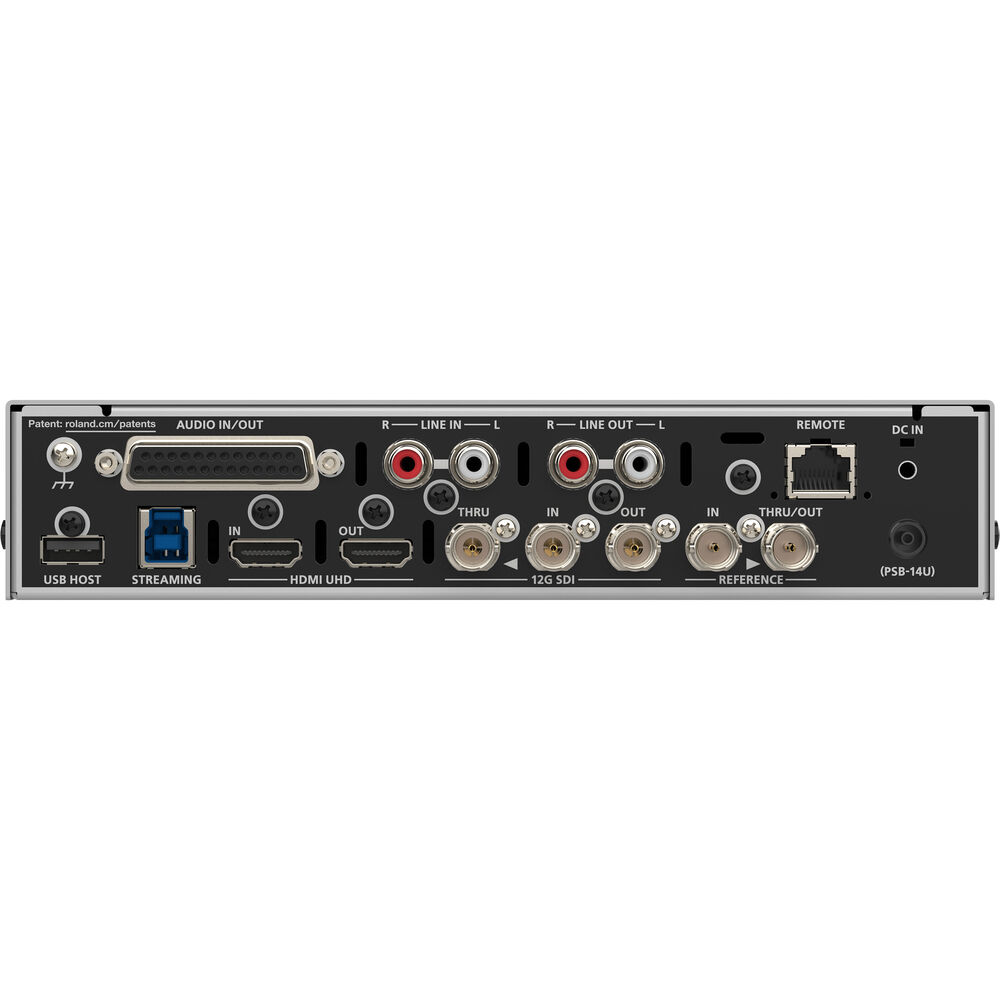

| Inputs/Outputs | 1 x USB-B |
| Video Inputs | 1 x BNC (12G-SDI) 1 x HDMI (HDMI 2.0b) 1 x USB-A |
| Audio Inputs | 1 x 2RCA Stereo 1 x DB-25 Stereo |
| Video Outputs | 1 x BNC (12G-SDI) (Program) 1 x BNC (12G-SDI) (Pass-Through) 1 x HDMI (HDMI 2.0b) (Program) 1 x USB-B (USB Video) |
| Audio Outputs | 1 x 2RCA Stereo 1 x DB-25 |
| Other I/O | 1 x BNC Blackburst, Reference, Sync Input 1 x BNC Blackburst, Reference, Sync Output 1 x USB-A Service 1 x RJ45 Control |
| Expansion Slots | None |
| Input Video Format | SDI (10-Bit 4:4:4) DCI 4K at 23.98/24/29.97/30/50/59.94 fps UHD 4K 23.98/24/29.97/30/50/59.94 fps 1080p 29.97/30/50/59.94 fps 1080i 50/59.94 fps HDMI (10-Bit 4:4:4) DCI 4K at 23.98/24/29.97/30/50/59.94 fps UHD 4K 23.98/24/29.97/30/50/59.94 fps 1080p 29.97/30/50/59.94/120/240 fps 1080i 50/59.94 fps WUXGA (1920 x 1200) 60 fps |
| Input Audio Format | Analog |
| Output Video Format | SDI (10-Bit 4:4:4) DCI 4K at 50/59.94 fps UHD 4K 50/59.94 fps 1080p 50/59.94 fps 1080i 50/59.94 fps HDMI (10-Bit 4:4:4) DCI 4K at 50/59.94 fps UHD 4K 50/59.94 fps DCI 2K 1080p 50/59.94 fps 1080i 50/59.94 fps WUXGA (1920 x 1200) SXGA (1280 x 1024) USB-B (8-Bit 4:2:2) 1080p 720p 480p |
| Embedded Audio | SDI/USB: 16-Channel HDMI: 8-Channel |
| Video Standard Compliance | SMPTE 259M/292M/424M/425M-A/425M-B/ST-2081/ST-2082 |
| HDCP Support | , Version 2.2 |
| EDID Support | Auto-Detect |
| HDR Compatibility | Not Specified by Manufacturer |

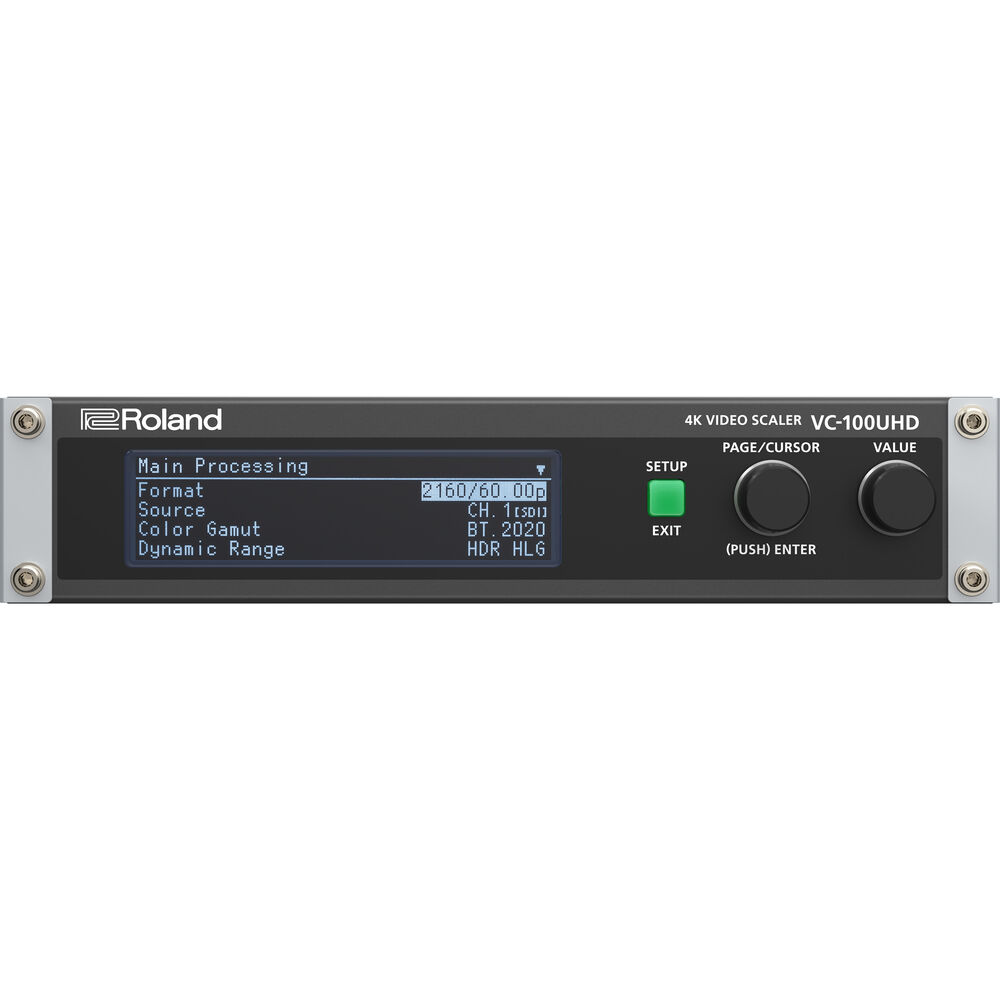

| Screen Resolution | 256 x 64 |
| Wi-Fi | Yes |
| Power I/O | 1 x Barrel Input |
| Power Consumption | 24 VDC at 2.3 A |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Dimensions | 11.2 x 8.3 x 1.7″ / 284.5 x 210 x 43 mm |
| Weight | 4.9 lb / 2.2 kg |
