Rycote Hyper Cardioid Shotgun Microphone 22cm, Long Directional Mono Mic 3 Pin XLR Connection

The Rycote HC-22 is a hypercardioid shotgun microphone designed for a wide range of applications in cinema, TV, ENG, live broadcast, sound design, studio and field recording.

The HC-22 combines a highly directional polar pattern with extremely low self-noise. This provides solid off-axis rejection and isolation with a precise sound quality to match, making the HC-22 a great all around mic for recording environments which may require a more focused recording approach.

FEATURES

Capsule:
• Professional broadcast quality and individually fine-tuned back electret capsule

Preamp:
• Compact design
• Ultra low noise circuitry
• Sophisticated RF shielding
• Low power consumption

Connector:
• Gold-plated Neutrik XLR connector

RF-Protection:
• Active in-line filtering
• Fine-tuned mechanical RF shielding
• Thoroughly tested against digital wireless systems and walkie talkies

Materials:
• Preamp made from non-corrosive machined brass – low impedance to ensure best possible and longest lasting RF shielding
• Capsule / Interference tube made from lightweight machined aluminium
• Weight balanced to help keep center of gravity further back to provide improved handling when using Rycote Lyre shock mounts and slip-on wind protection

PRODUCT CODE: RYC079002

SPECIFICATIONS:

Frequency Range:  50 Hz – 20 kHz
Self Noise:  8.5 dB A (+/- 2 dB)

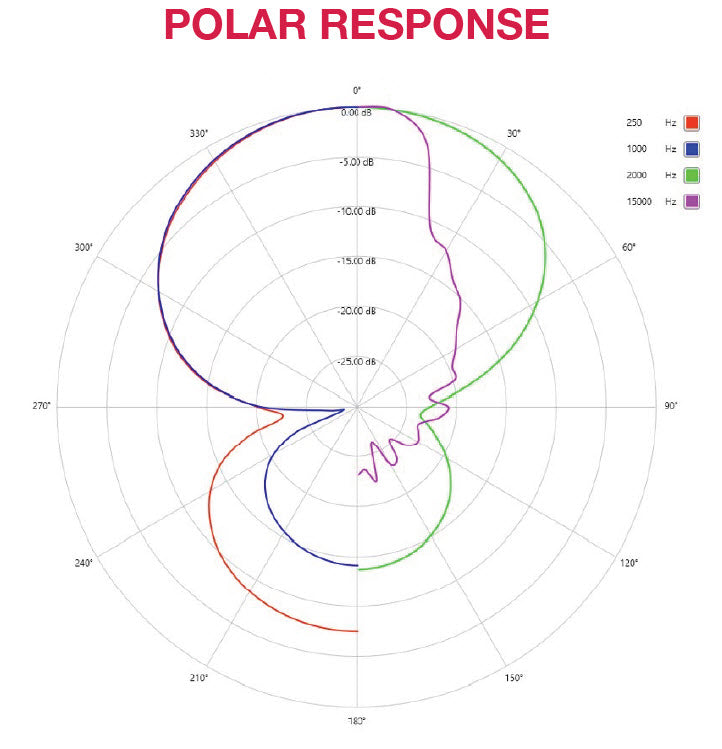

Polar Pattern:  Hyper cardioid
Capsule Type:  Back Electret Condenser
Output Sensitivity:  48.0 mV/Pa (-26.3 dB)
Max. Output Voltage: 5 V (if relative load is < 2kΩ)
Output Impedance:  100 Ω
Min. Recommended Load:  1 kΩ
Signal / Noise Ratio:  85 dB typical (@ 1 kHz/Pa A-weighted)
CMRR (@ 1 kHz): > 60 dB
Max. Cable Length: 100 m
Powering: P-48
Powering Valid Range: 48-24V (Max SPL reduced at 24V)
Current Consumption:  ~ 3.0 mA
Max. SPL:  133 dB SPL (@ 1 kHz (1.0% THD typical)
RFI Shield:  Yes
Connector:  XLR-3M
Weight:  100 g
Colour:  Matte Black w/ Red Accent
Dimensions: Length 221mm x Diameter 19mm

COMPATIBLE RYCOTE WINDSHIELDS
• 18cm SGM Foam
• 18cm Classic Softie
• 18cm Short Fur Softie
• 18cm Super Softie
• Nano Shield Kit NS4-DB
• Cyclone Windshield, Medium
• Modular Windshield Kit 3
