Ultralight BA-DB-ARRI Dovetail Base Plate With Arri Anti-Twist Locating Pins
Ultralight BA-DB-ARRI dovetail base plate with ARRI anti-twist locating pins
$45.00

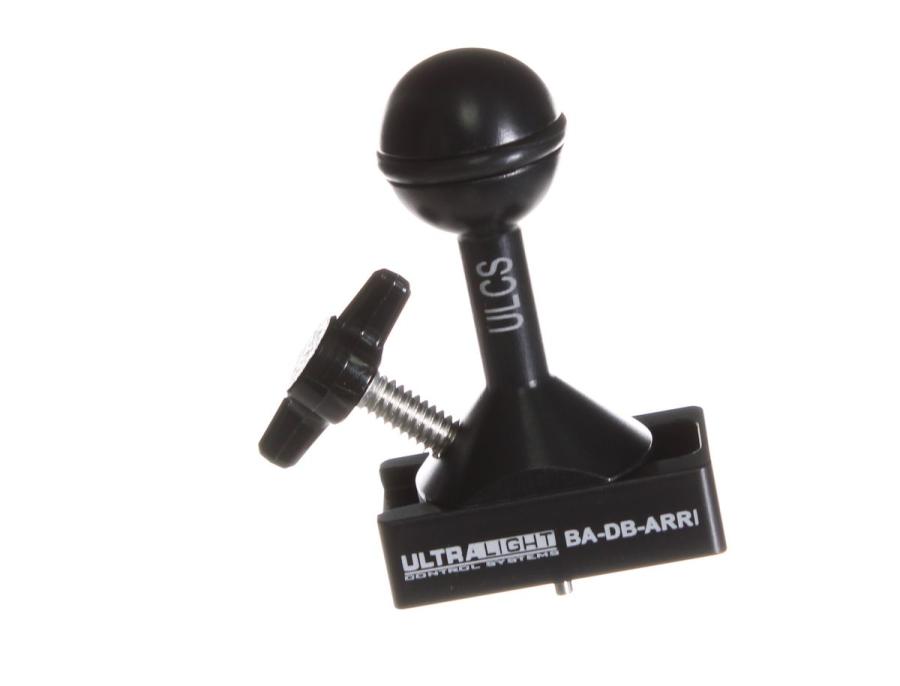

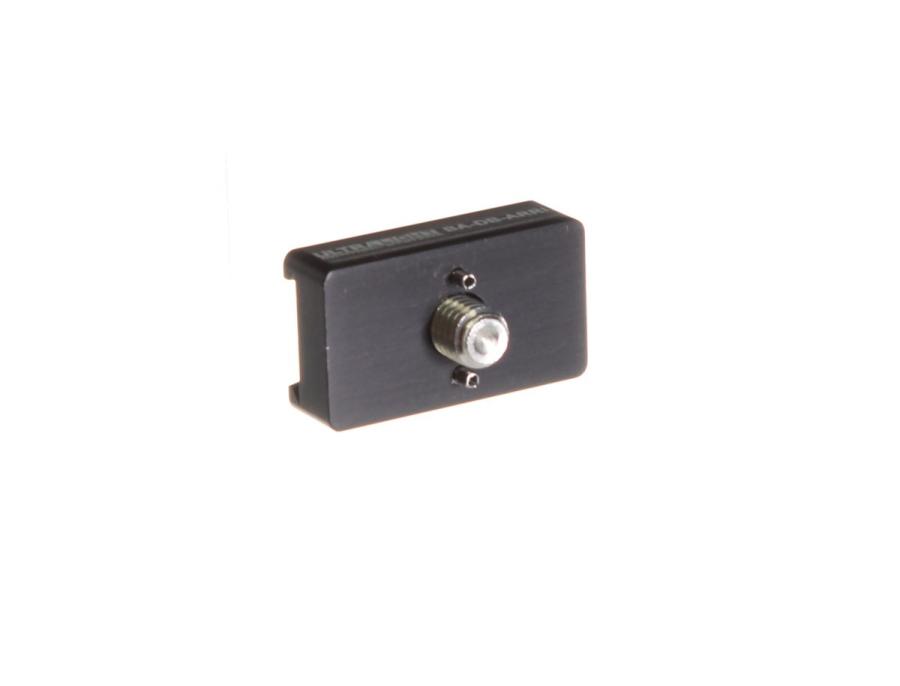

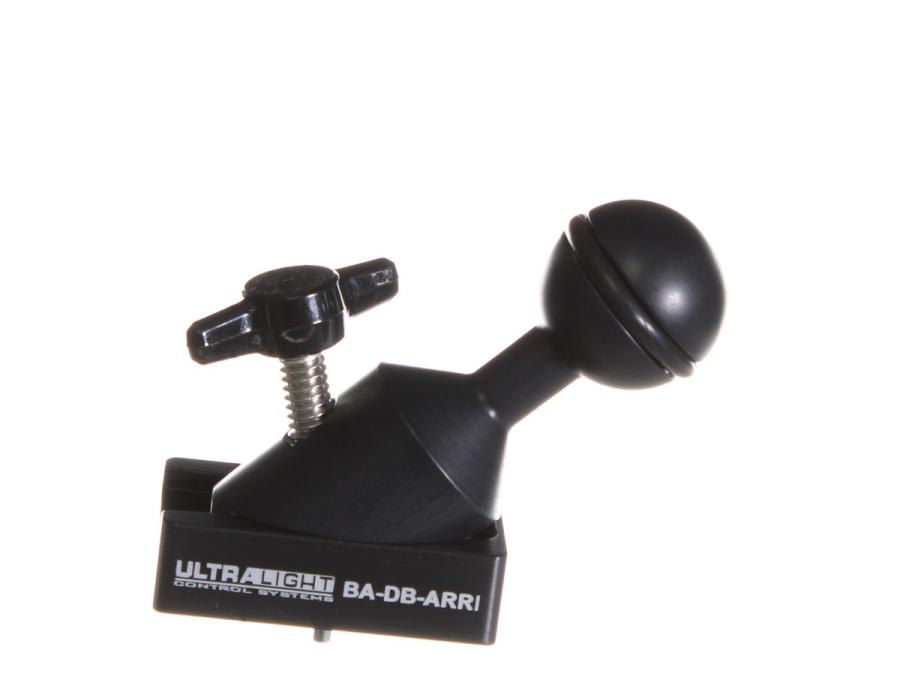

The BA-DB-ARRI was designed from our BA-DB dovetail plate but made with ARRI anti-twist locating pins and one mounting hole that uses a 3/8″-16 x 1/2″ allen head bolt. The dovetail plate is made to fit our BA-AD and BA-DT ball adapters. This is a great option to other cinema style ARRI quick disconnects such as the Cinelock 16×9 and Kondor Blue because when the ball mount is tightened into place it wedges the two parts against each other making it super solid. It’s black in color, made out of 6061 T6 aircraft-grade aluminum with Type III anodizing and the included hardware is 316 stainless steel. Included is a 3/16″ allen key.
