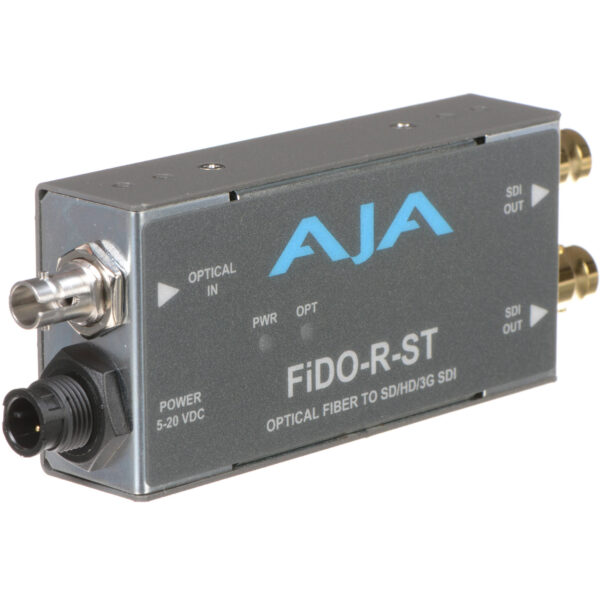

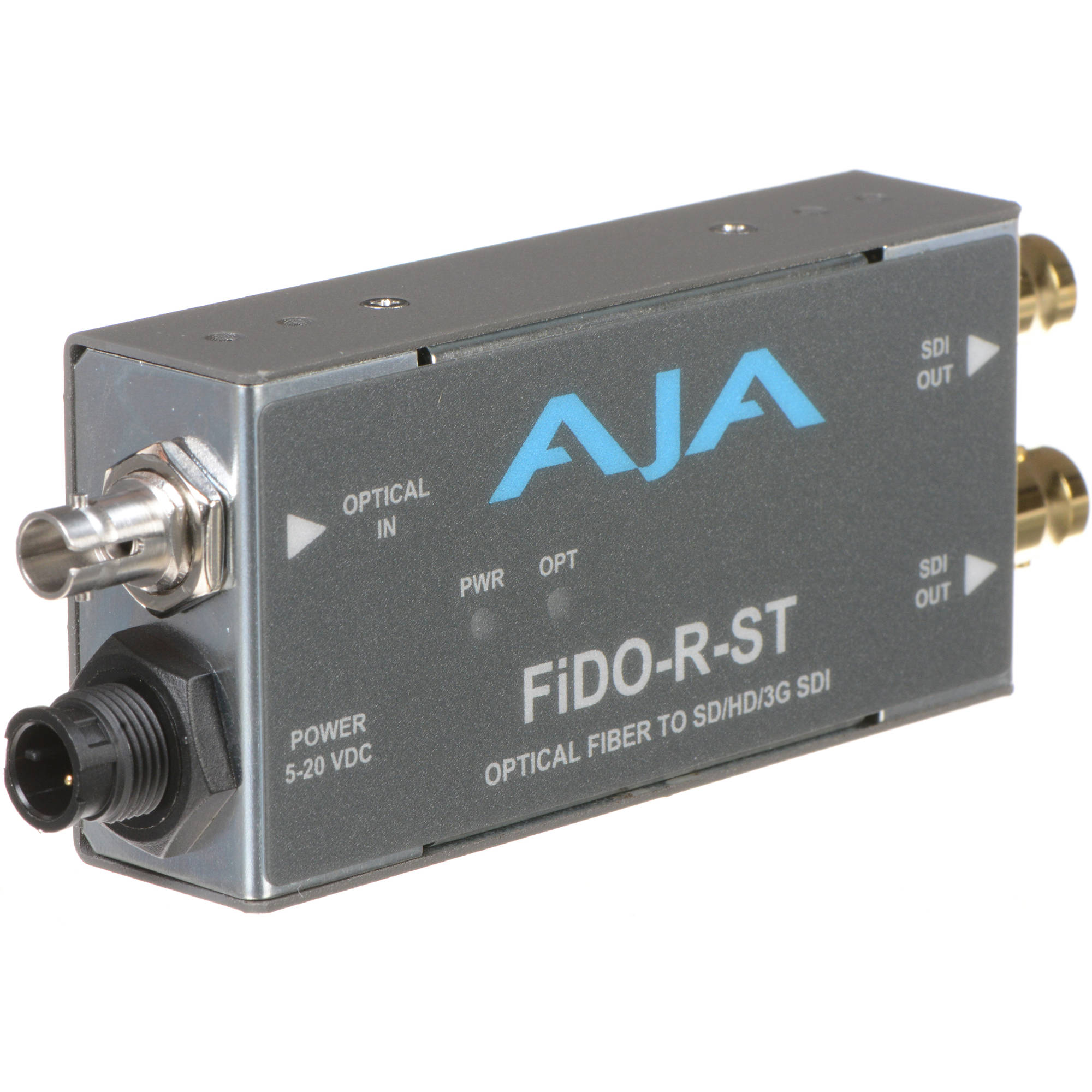

AJA FiDO 1-Channel Single Mode ST Fiber to 3G-SDI with Dual Outputs Receiver

AJA

Convert an ST fiber signal to two simultaneously active 3G-SDI outputs in resolutions up to 1080p. Transmit the input signal from up to six miles away at the max resolution over a single-mode fiber cable. AJA’s FiDO-R-ST features one ST optical fiber input and two 3G-SDI outputs, in a compact body suitable for indoor and outdoor use. Use it with compatible devices, or pair it with a corresponding FiDO Mini Converter.

Key Features

  • Small enough to fit behind a monitor, back of a rack, or directly on a camera rig
  • Autodetection of video format
  • Equalized and reclocked input
  • ASI compatible
  • Meets all relevant SMPTE specifications
  • Locking power connector
  • 1.5W power consumption
    Includes 5-20V worldwide power supply with four interchangeable plug adapters

$1,462.00

Specs

  • Formats: 3 Gbps, 1.5 Gbps, 270 Mbps (automatically selected based on input)
  • Input: 1 x ST optical fiber
  • Output: 2 x 3G/HD/SD-SDI on BNC
  • Supported Resolution: Up to 1920 x 1080p
  • Power: 5-20 VDC
  • Power Consumption: 1.5 W
  • Dimensions: 12 x 4.3 x 2.4 cm (4.6 x 1.7 x 0.9″)
SKU: AJA-FiDO-R-ST-R0 Category: Brand:
