AJA U-TAP USB 3.0 Powered SDI Capture Device

AJA

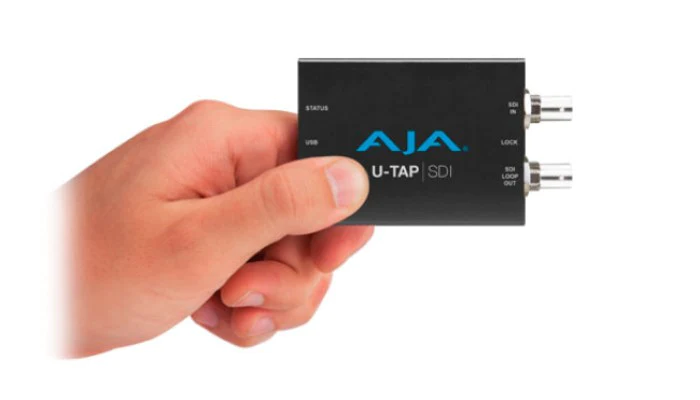

The AJA U-TAP USB 3.0 Powered SDI Capture Device from is suitable for use in the field, on set, or at a studio where USB connectivity provides a quick and easy way to obtain SDI sources for capture, without the need to install additional software drivers. This compact capture device is bus-powered and supports frame rates up to 1080p60. This frame rate makes it useful for HD High Frame Rate (HFR) projects, live events, and fast moving subjects. U-TAP also provides an SDI looping output, allowing you to loop through the source SDI signal to monitors, switchers, and more.

$762.00

Connections

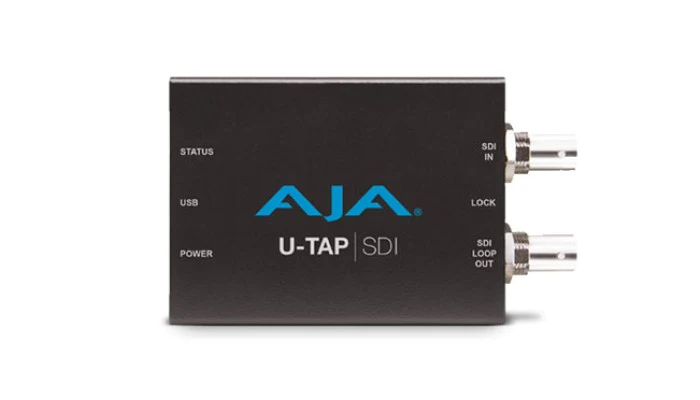

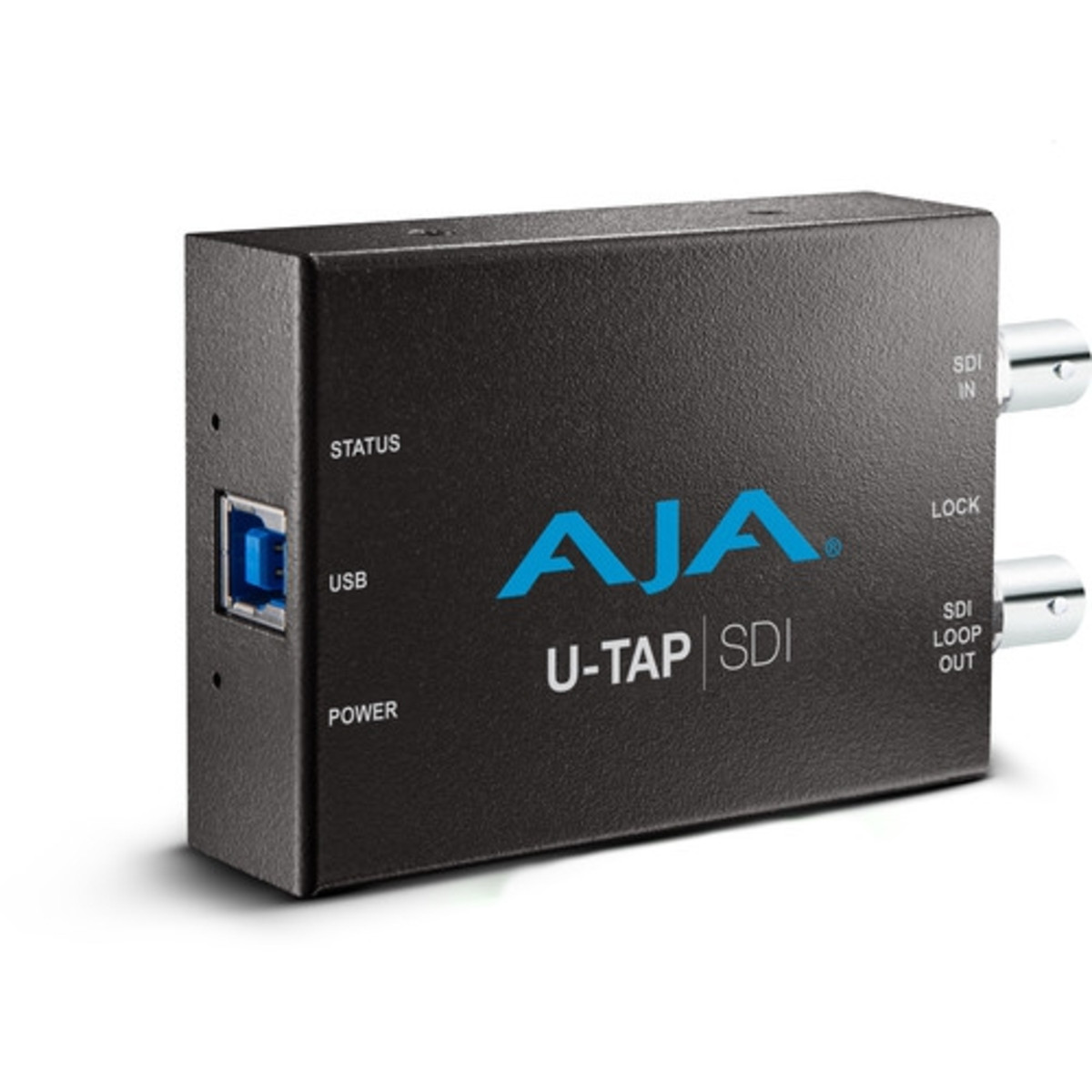

U-TAP SDI features USB 3.0 host interface, HD-SDI input, and SDI out (looping output)

Software Compatibility
U-TAP SDI is UVC and UAC compatible on Mac, Windows and Linux, negating the need for additional drivers. This ensures compatibility with a wide range of professional software applications and a seamless integration between the native software.

Video Formats Video:
HD: 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
HD: 1920 x 1080i 25, 29.97, 30
HD: 1280 x 720p 50, 59.94, 60
SD: 625i 25
SD: 525i 29.97

Scaled:
1920 x 1200p 25, 29.97, 30, 50, 59.94, 60
1920 x 1080p 25, 29.97, 30, 50, 59.94, 60
1280 x 720p 25, 29.97, 30, 50, 59.94, 60
1024 x 576p 25, 29.97, 30, 50, 59.94, 60
856 x 480p 25, 29.97, 30, 50, 59.94, 60
768 x 576p 25, 29.97, 30, 50, 59.94, 60
720 x 576p 25, 29.97, 30, 50, 59.94, 60
720 x 480p 25, 29.97, 30, 50, 59.94, 60
640 x 480p 25, 29.97, 30, 50, 59.94, 60
640 x 360p 25, 29.97, 30, 50, 59.94, 60

Video Input Digital 1 x BNC; 3G-SDI, SMPTE-259/292/424, 4:2:2
Video Loop Output 1 x 3G-SDI via BNC
Audio Input Digital 2-channel, SDI embedded audio, 48 kHz sample rate
Host Interface USB 3.0/2.0 UVC/UAC compliant
Software Compatibility PC/Mac:
Skype, Adobe Connect, GoToMeeting, Webex, Wirecast, TwitchTV, Ustream, YouTube Live, Flash Media Live Encoder, TeamViewerMac Only:
FaceTime, QuickTime, and ScreenflowPC Only:
Microsoft Lync, vMix, ProPresenter, and XSplitPC/Mac/Linux:
VLC, OBS, Google Hangouts
Power 5 V USB bus powered; 6.5 W maximum
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -40 to 140°F (-40 to 60°C)
Relative Humidity 10 to 90% non-condensing
Operating Altitude Up to 10,000′ (3,000 m)
Dimensions 4.1 x 2.4 x 1.0″ (10.3 x 6.1 x 2.5 cm)
Weight 0.3 lb (0.2 kg)
SKU: AJA-U-TAP-SDI-R0 Category: Brand:
