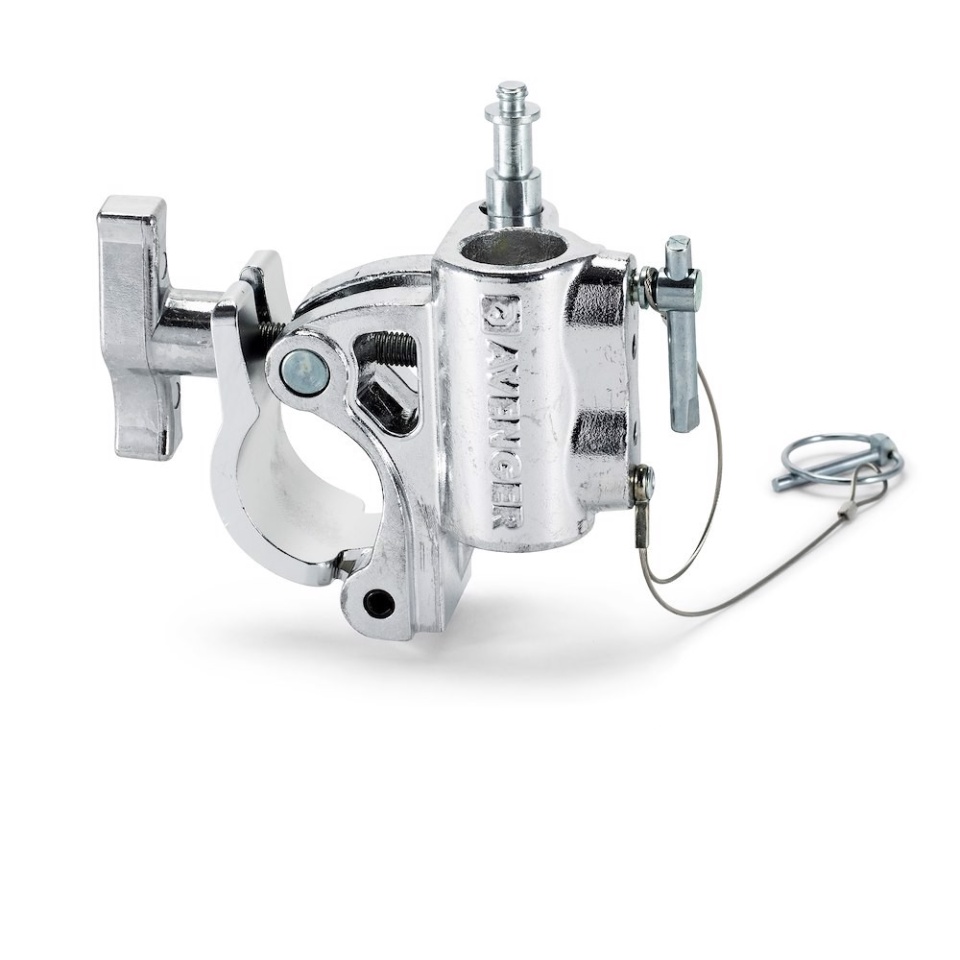

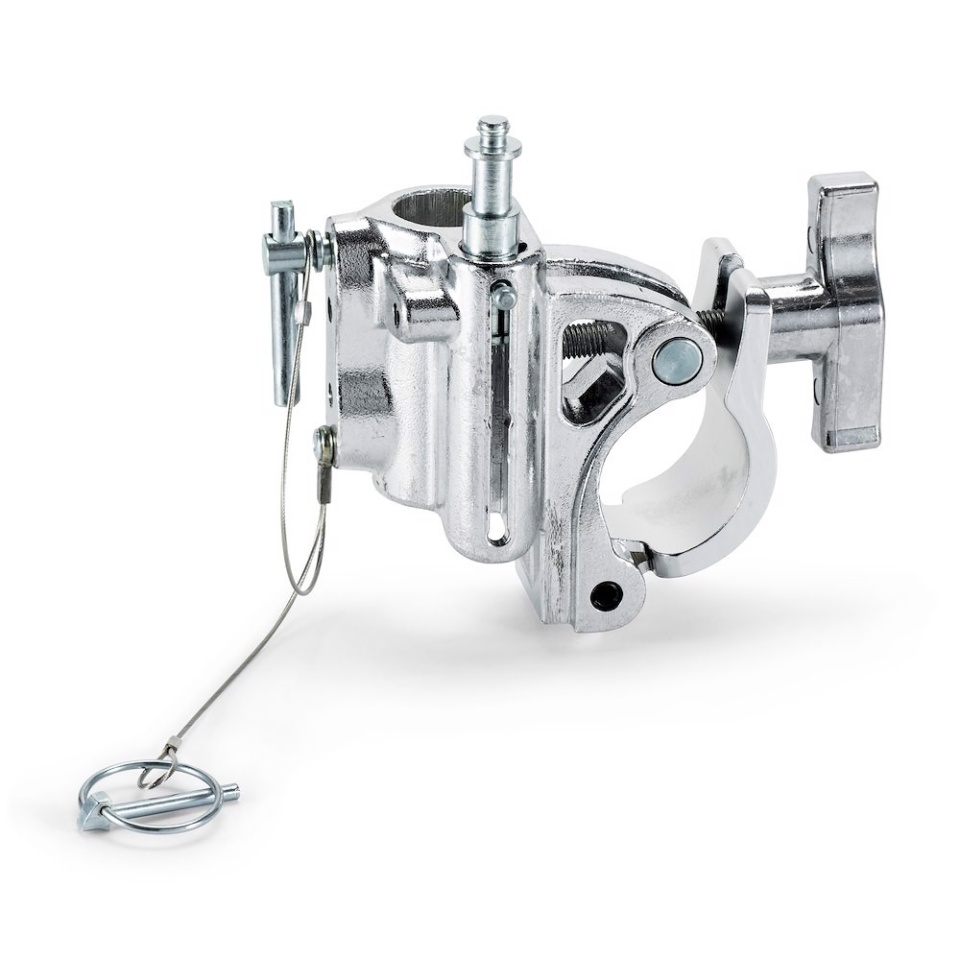

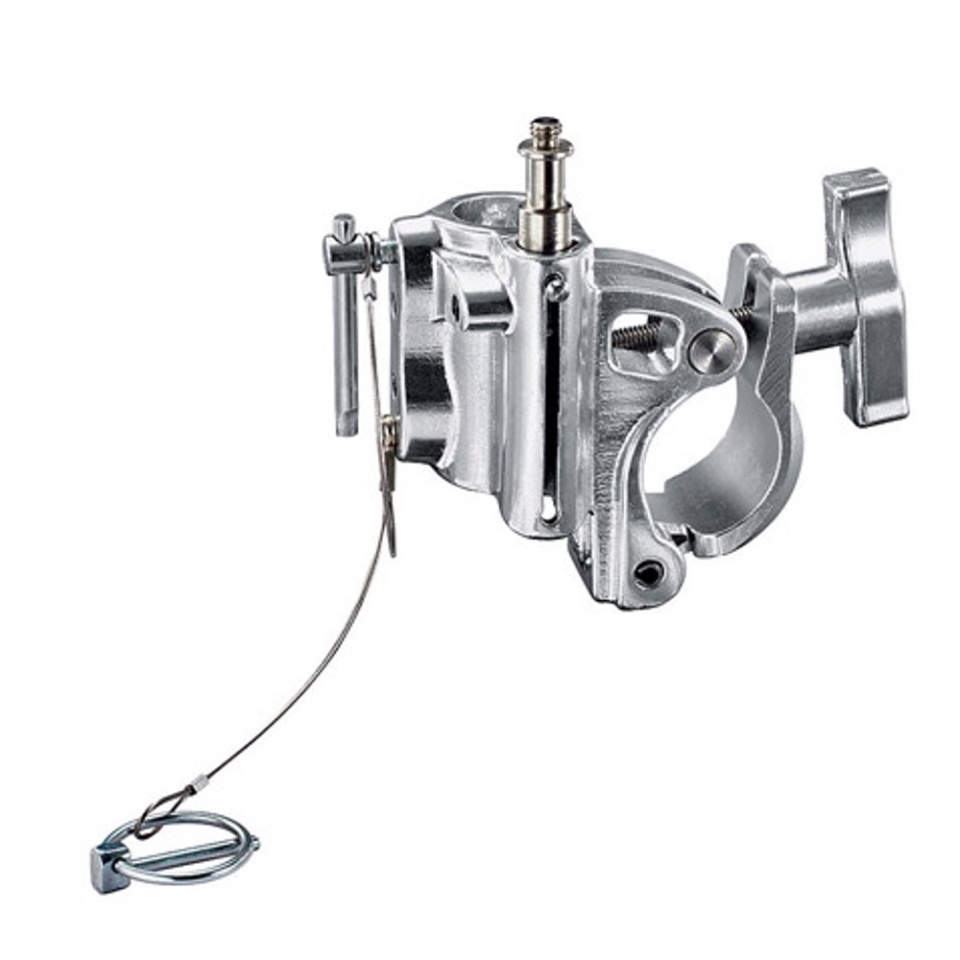

Avenger C345K-1 Clamp Barrel T-Knob TUV Silver 40-300Kg Payload 16/28mm M Gravity Casting w Safety Cable
The Avenger C345K-1 Barrel Clamp in silver is made with gravity cast aluminum, has a built in 28 mm/ 1 1/8 inch junior receiver, a 16 mm/ 5/8 inch baby pin with a 1/4” threaded top and a 16 mm/5/8 inch receiver. This barrel clamp is capable of mounting pipes or tubes ranging from 42 – 52 mm/1.65 – 2.05 inch and easily locks into place using a T-Knob. The baby attachment can support loads up to 40 kg while the junior receiver can take capacities up to 300 kg/661.4 lb. The C345K-1 includes a safety cable with locking pin to secure attachments that are mounted in the junior receiver. TÜV SÜD certified. Recommended Accessories: C155, C155-01, C155-02 E200, FF3276, A2029, C590, C626.
$176.00
Related products
-
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C465-1 Coupler LP Eye 28mm Bushing 220kg payload Aluminum
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C465-1 Coupler LP Eye 28mm Bushing 220kg payload Aluminum
The Avenger C465-1 LP Eye Coupler grid clamp comes supplied with a 28 mm (1 1/8”) junior receiver. This popular clamp is ideal for many rigging systems, truss and entertainment configurations. The LP Eye Coupler uses a wing nut with washer locking design and is able to clamp down on round tubes, truss or grids ranging from 48 mm (1.9”) to 52 mm (2.04”) and is 50 mm (1.96”) wide. Capable of holding up to 300 kg/661.4 lb loads this clamp will perform in many demanding environments. TÜV and SÜD certified. Recommended Accessories: E390, C155, C460-1, C461-1, C463-1, C4460-1, C464-1, E200, C4465-1.
SKU: AVN-C465-1 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C4482 Clamp MP Eye Couple Swivel 300kg Payload 42-52mm Wide Rotates 360Deg
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C4482 Clamp MP Eye Couple Swivel 300kg Payload 42-52mm Wide Rotates 360Deg
The Avenger C4482 Swivel MP Eye Coupler is made from 2 connected couplers that are free to rotate 360°. Designed for quick and easy connecting of trusses, bars or pipes. This swivel coupler is capable of clamping diameters ranging from 42 mm(1.65”) to 52 mm(2.04”) and each coupler is 50 mm(1.96”) wide.
Recommended Accessories: E390, C155, C460-1, C461-1, C463-1, C4460-1, C464-1, E200, C4465-1, C464-1.
SKU: AVN-C4482 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C461-1 Eye Coupler LP 28mm TV Spigot Range 48-52mm 220kg Payload Alum Alloy Spigot 28mm
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C461-1 Eye Coupler LP 28mm TV Spigot Range 48-52mm 220kg Payload Alum Alloy Spigot 28mm
Avenger C461-1 Eye Coupler LP 28mm TV Spigot Range 48-52mm 220kg Payload Alum Alloy Spigot 28mm.
- Made from aluminium alloy
- Can be tightened with a wingnut and has a 28mm TV spigot for TV broadcasting luminaries.
- Support a payload up to 500kg
- Works on pipes ranging from 48mm to 52mm.
SKU: AVN-C461-1 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C100 Clamp Piper Jr 20 – 50mm 250Kg. 28mm Socket and Safety Cable Lock
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C100 Clamp Piper Jr 20 – 50mm 250Kg. 28mm Socket and Safety Cable Lock
The C100 Junior Pipe Clamp has a built-in 28 mm/1 1/8 in receiver. Capable of handling all junior pins, this gravity cast aluminum clamp has a Tommy Bar locking handle and requires no tools when attaching to truss or pipe grids. This clamp has a capacity of 250 kg, The jaws clamping range is from 20 mm – 55 mm/0.78 – 2.16 in and has an added safety cable with pin to secure junior pins. Recommended Accessories: C155, E200, C4461-1, C590, C4485, C822, C820, C888UH, C500, C150.
SKU: AVN-C100
