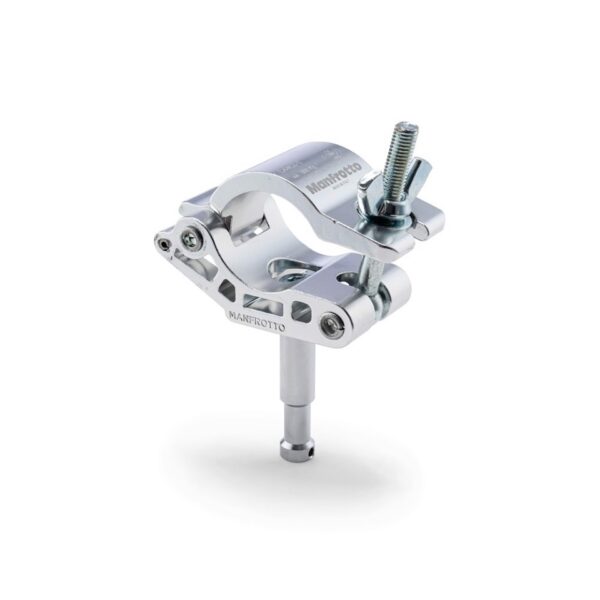

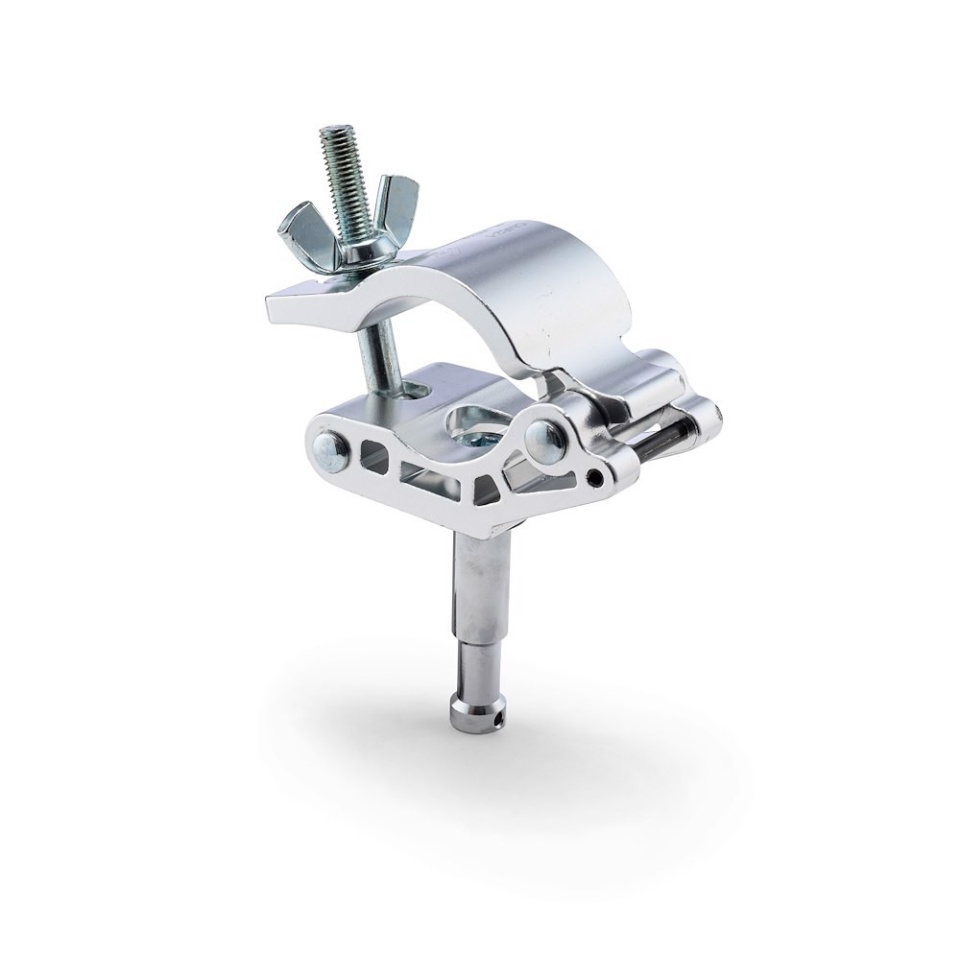

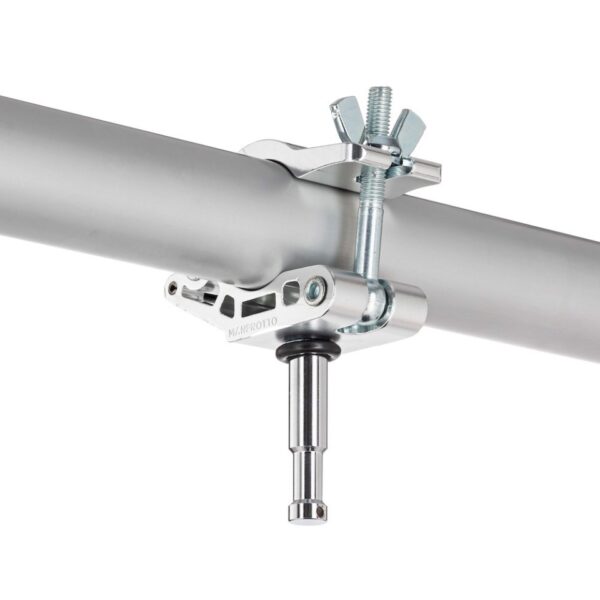

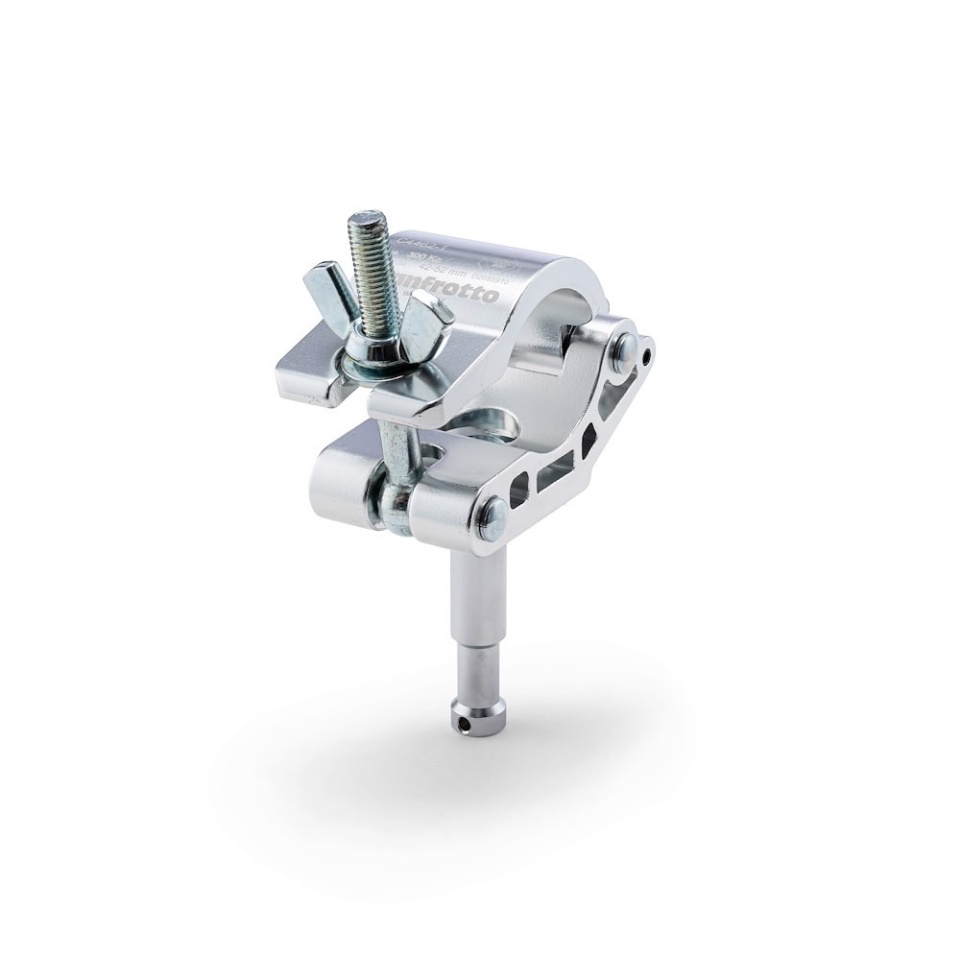

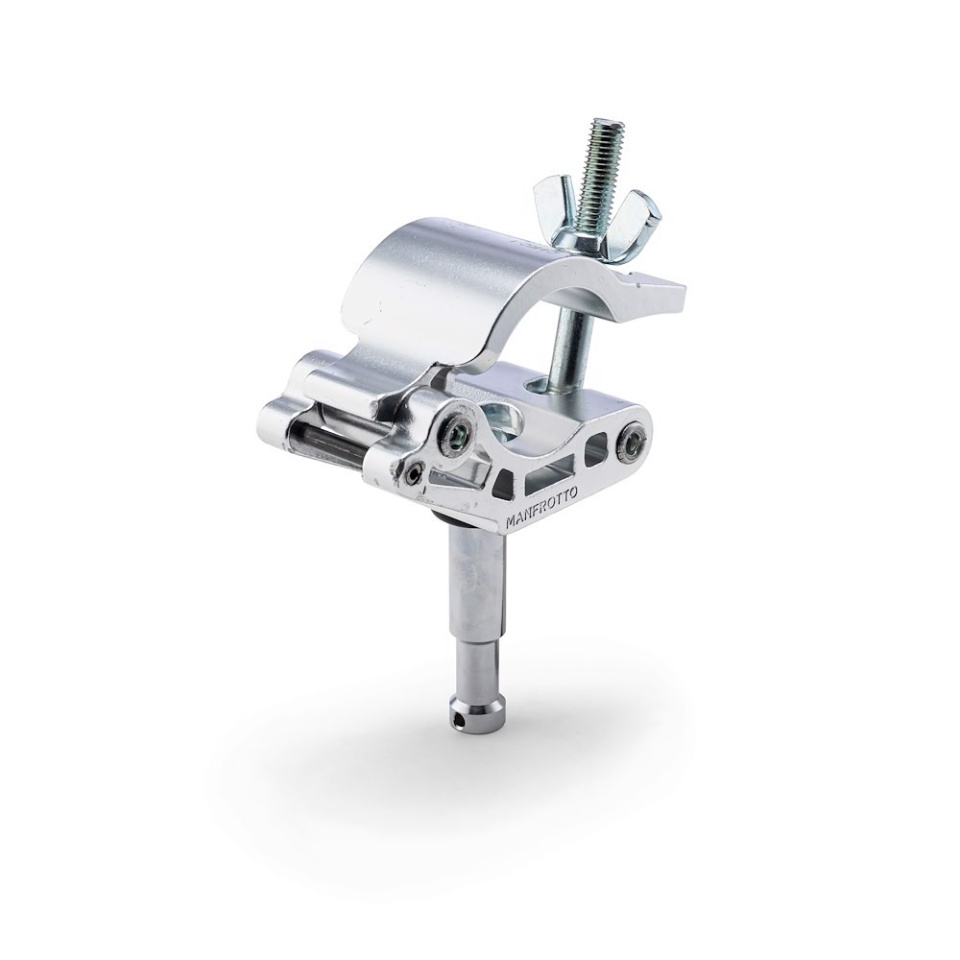

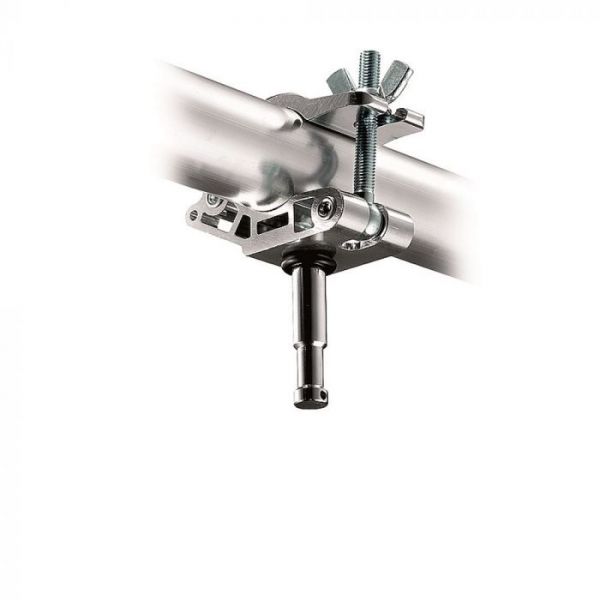

Avenger C4462-1 Clamp Eye Coupler 16mm Spigot 300kg Payload 42-52mm Wide TUV SUD Certified

Avenger C460-1 Clamp Lp Eye Coupler TUV 220Kg Payload 42-52mm Wide 13mm Unthreaded Hole.

The base model of LP eye coupler is a regular clamp to use on pipes or trusses. Made from aluminium alloy, it can be tightened with a wingnut and has a 13mm hole for mounting lights and other accessories. It can support a payload up to 500kg and works on pipes ranging from 48mm to 52mm

The C100 Junior Pipe Clamp has a built-in 28 mm/1 1/8 in receiver. Capable of handling all junior pins, this gravity cast aluminum clamp has a Tommy Bar locking handle and requires no tools when attaching to truss or pipe grids. This clamp has a capacity of 250 kg, The jaws clamping range is from 20 mm – 55 mm/0.78 – 2.16 in and has an added safety cable with pin to secure junior pins. Recommended Accessories: C155, E200, C4461-1, C590, C4485, C822, C820, C888UH, C500, C150.

The Avenger C4560-1 MP Slim Eye Coupler grid clamp is a base model eye coupler designed for user customization. This slim version MP cheeseboro clamp has a wider clamp range than the LP clamp and is ideal for many rigging systems, truss and entertainment configurations. The lower jaw has a special flattened shape which helps in the sizing of this clamp and the increased flexibility to clamp down on different types of tubing. It offers the user complete customization and flexibility for any application where a grid clamp is needed. The MP Slim Eye Coupler uses a wing nut with washer locking design and is able to clamp down on round tubes, truss or grids ranging from 42 mm(1.65”) to 52 mm(2.04”) and is 30 mm(1.18”) wide. The attachment hole is 12.5 mm(.5”) and is located on the base of the clamp. Capable of holding up to 180 kg loads this clamp will perform in many demanding environments. TÜV and SÜD certified. Recommended Accessories: E390, C155, C460-1, C461-1, C463-1, C4460-1, C464-1, E200, C4465-1, C464-1.
