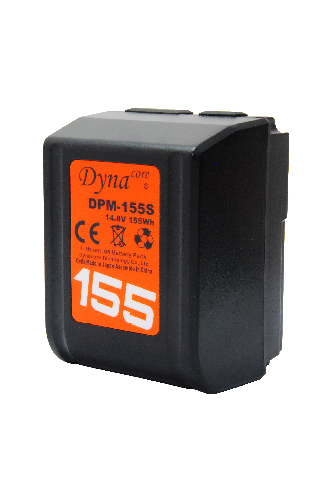

Dynacore DPM-155S Battery V-Lock Tiny 14.8V 155Wh
- Voltage: 14.8V
- 155Wh/10.5Ah capacity
- -30°C ～ +50°C operating temperature
- Tiny V-mount battery, Pocket fit
- 1x D-tap output & charging input
- 1x USB 5V/2A output
- 4-step LED power indicator
- Multiple circuit protections
$469.00
Introducing Dynacore TINY series of V-Lock batteries, so small they fit in your pocket.
The Dynacore DPM series are a highly portable and pocketable V-Lock battery perfect for powering your Camera cage or rig.
It is also the most economical V-Lock option in Australia today.
The tiny batteries are designed for applications where a compact size is important for power, such as BMPCC or DSLR, handheld stabilisers, focus puller monitor, portable LED panel etc.
These batteries also include the convenience of both D-Tap & USB outputs to power your camera and on-set accessories.
Specification:
|
Model |
DPM-155S |
|
|
Battery Type |
V-Mount |
|
|
Voltage |
14.8V |
|
|
Capacity |
155Wh/10.5Ah |
|
|
Max Output |
Total |
150W,12A |
|
Pins |
150W,12A |
|
|
D-Tap |
120W,10A |
|
|
USB |
10W,2A |
|
|
Dimension |
102 x 75 x 65.6(mm) |
|
|
Weight |
0.70Kg |
|
|
Operating temperature |
-30°C ～ +50°C |
|
