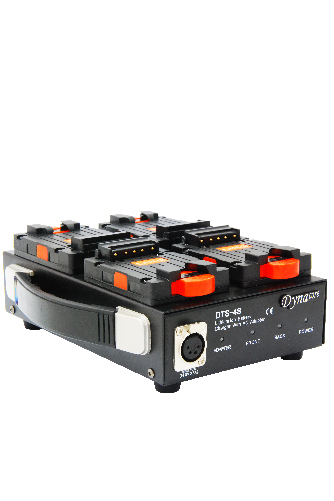

Dynacore DTS-4S Tiny Battery Charger/Adaptor
Simultaneous 4-channel charger for tiny V-mount style batteries.
The charger (16.8V/ 1.3A per channel) and 4-pin XLR power output (14.8V/3.3A) can work simultaneously.
The charging time for DPM-98S is around 4.5 hours.
The charger also can charge the normal size Dynacore batteries, DTS-4S can charge two pcs normal size batteries, and the current is 3A.
$370.70
Specification:
|
Input |
AC 90V~240V/47Hz~63Hz |
|
Charger Output |
DC 16.8V/1.3A |
|
Adapter Output |
DC 14.8V/3.3A |
|
Dimension |
215x168x87mm |
|
Weight |
1.70Kg |
