Lifting rope: 2 mm wire rope
Safety factor rope: 12
Self weight: 4.6 kg – 10.1 Lbs
Max working load: 18 kg – 39.7 Lbs
Closed length: 27 cm – 10.7”
Max extension: 200 cm – 79”

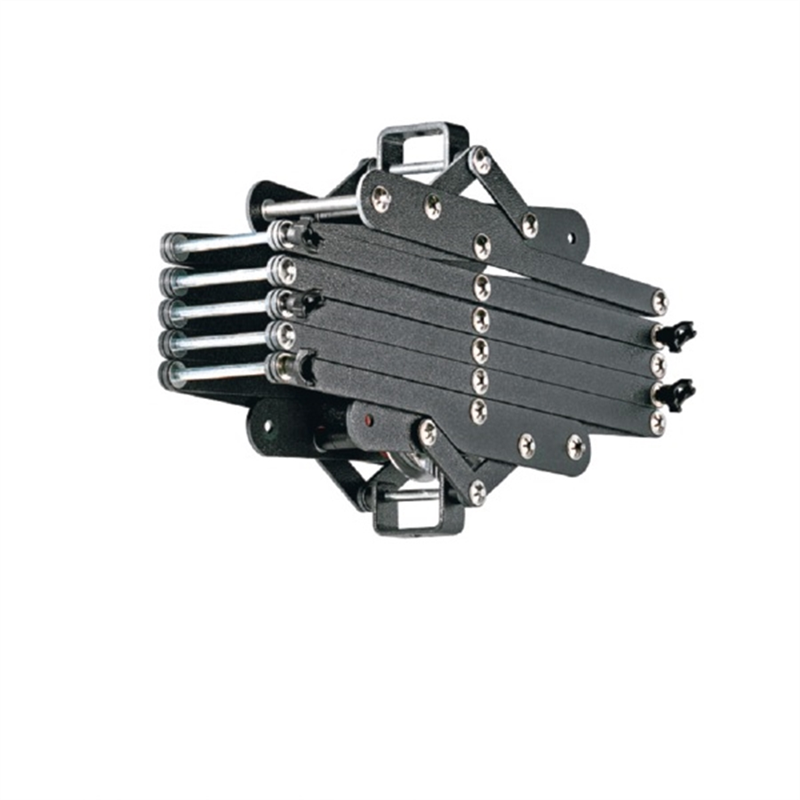

IFF Friction Pantograph Top 2.0m w 16mm attachment
The TOP 2C is a manual operated friction pantographs for single loads of up to 18 kg (39.7 Lbs). TOP 2C extends 2 m.
The innovative design of the pantograph allows lights to be placed closer to the ceiling than ever before. A complete new range of top and bottom attachments have been designed to reduce at minumum the closed length. Entirely produced in Aluminum (P-Al MgSi UNI3569) and according to DIN 15560-46. The load is supported by a steel cable of 2 mm diameter (safety factor 12). Loads up to 12 kg (26.4 Lbs) can be supported by the patented friction device, while loads up to 18 kg (39.7 Lbs) require the use of optional springs.
$1,034.00
