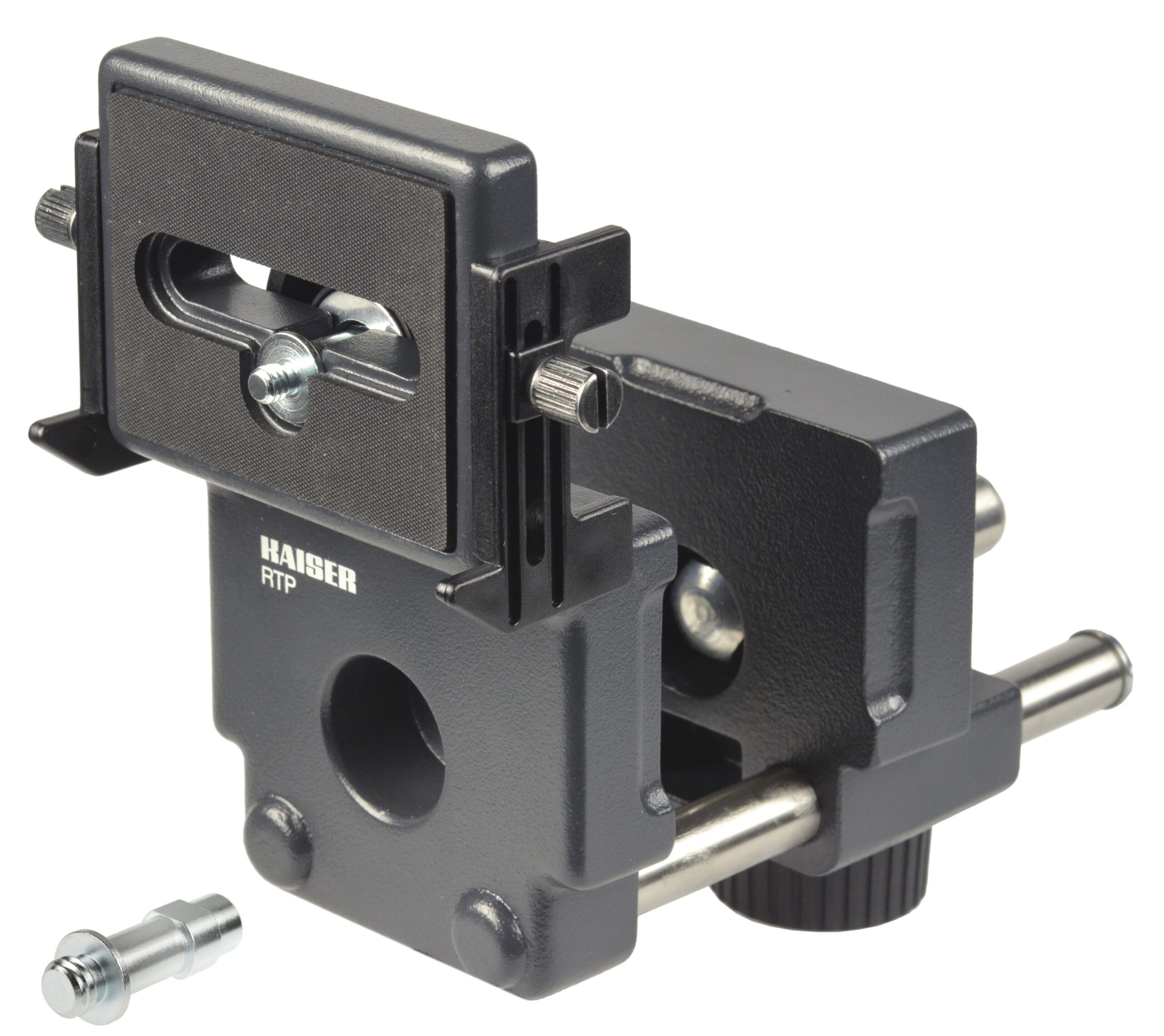

Kaiser Fototechnik 5524 Camera Arm RTP

Specially suitable for cameras with large distance between tripod hole and optical axis of lens.

Device for adjusting the camera, settable to different camera bodies.
Interchangeable 1/4″/, 3/8″ mounting thread.

For use with all negative masks and glass inserts size 100 x 72,5 mm (3.9 x 2.9 in.). Suitable for all SYSTEM-V enlargers made from 10/94 on (05 series).

• Adjustable guide pins for film widths 61.5 mm (rollfilm 120), 41 mm (rollfilm 127) and 35 mm film.
• Four steplessly adjustable masking strips for selecting the desired detail.
• Two grid pins at standard hole intervals.
• Dimensions: approx. 142 x 37 x 123 mm (5.6 x 1.4 x 4.8 in.)

Camera carrier turns ? 90? and can be blocked in every position. With spirit level for fine adjustment.

Camera mount horizontally adjustable via parallel guides with fine adjustment.

Camera can be mounted on the inside or outside of the camera carrier. Mounting the camera on the inside of the camera carrier for landscape format produces images which are not upside-down. This is very convenient for comic, animation and stop-motion films.

The entire copy and titling arm is tiltable to allow for reproductions of vertical subjects.

With interchangeable 1/4?/ 3/8? connecting thread.
