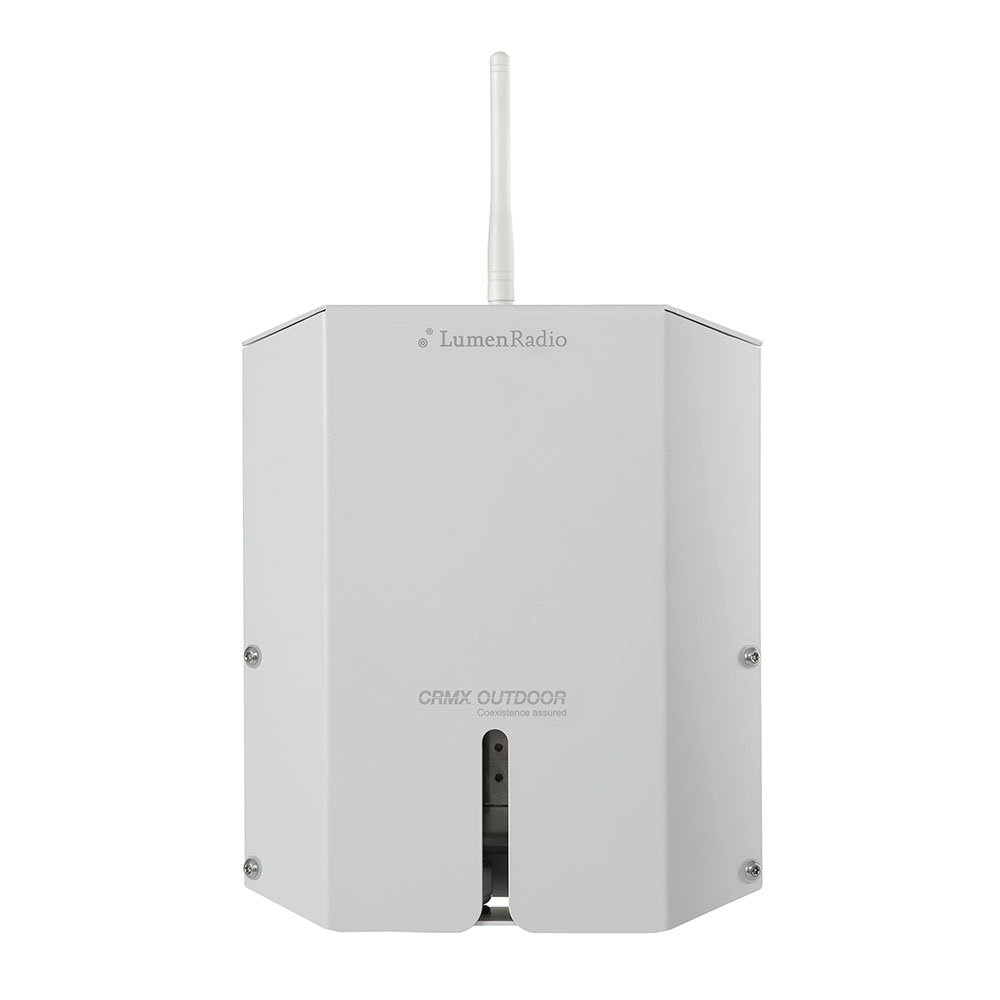

LumenRadio CRMX Outdoor Flex IP67 RDM/Ethernet Flex

LumenRadio

CRMX Outdoor™ Flex is the ultimate wireless DMX and RDM product for any installation. User configurable as either transmitter, repeater or receiver for one (1) DMX/RDM universe in full refresh rate with up to 512 channels.

CRMX Outdoor is an adaptation of the CRMX Nova™ product line for outdoor use and is compatible with other CRMX DMX/RDM products. CRMX Outdoor is the first RDM enabled wireless light control product both waterproof and vandal proof making it suitable for any outdoor installation.

CRMX Outdoor is the worlds first wireless DMX and RDM receiver for outdoor use that is designed to withstand many years of weather forces thanks to its unique combination of an IP67 rated housing and the vandal proof mounting cover.

$2,800.00

To fit in to old wireless systems with legacy equipment CRMX Outdoor Flex is compatible with W-DMX™ transmitters when configured in receiver mode. However when using it in this way you won’t get the benefits of the advanced CRMX technology.

CRMX Outdoor Flex have three modes of operation:

Transmitter mode. Ethernet enabled DMX/RDM transmitter with support for Streaming ACN, ArtNet, ETCNet 2 & 3, Pathport, etc.
Repeater mode. The CRMX Outdoor Flex will repeat the wireless DMX and RDM signal making it possible to extend the link range, and enabling more complex network structures.
Receiver mode.
Use the CRMX Outdoor Flex together with any other CRMX wireless RDM and wireless DMX products.

CRMX Outdoor utilized the international license free ISM band (2.4GHz).

Supported protocols

USITT DMX512, DMX512(1990) & DMX512-A
RDM ANSI E1.20
Streaming ACN (Draft and Final)
ArtNet I, II & 3
Pathport
Strand ShowNet
ETCNet 2 & 3
Power

High voltage input: 85-264VAC / 47-70Hz / 3W
Overvoltage and ESD protected power input
PoE. Power over Ethernet
Physical

Enclosure: IP67 vandal proof housing
Dimensions (W x H x D): 201 x 244 x 78 mm (7.9″ x 9.6″ x 3.1″)
Weight: 1.6kg, 3.5lbs
RF characteristics

Operational frequency range: 2402-2480 MHz
Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm)
Tested link range: 500m in urban area using 100mW output power mode
Connectors

DMX: Pluggable terminal strip, Phoenix® MSTB 2,5
Antenna: N female
AC: 13AWG Pluggable terminal strip
Ethernet: standard RJ45
