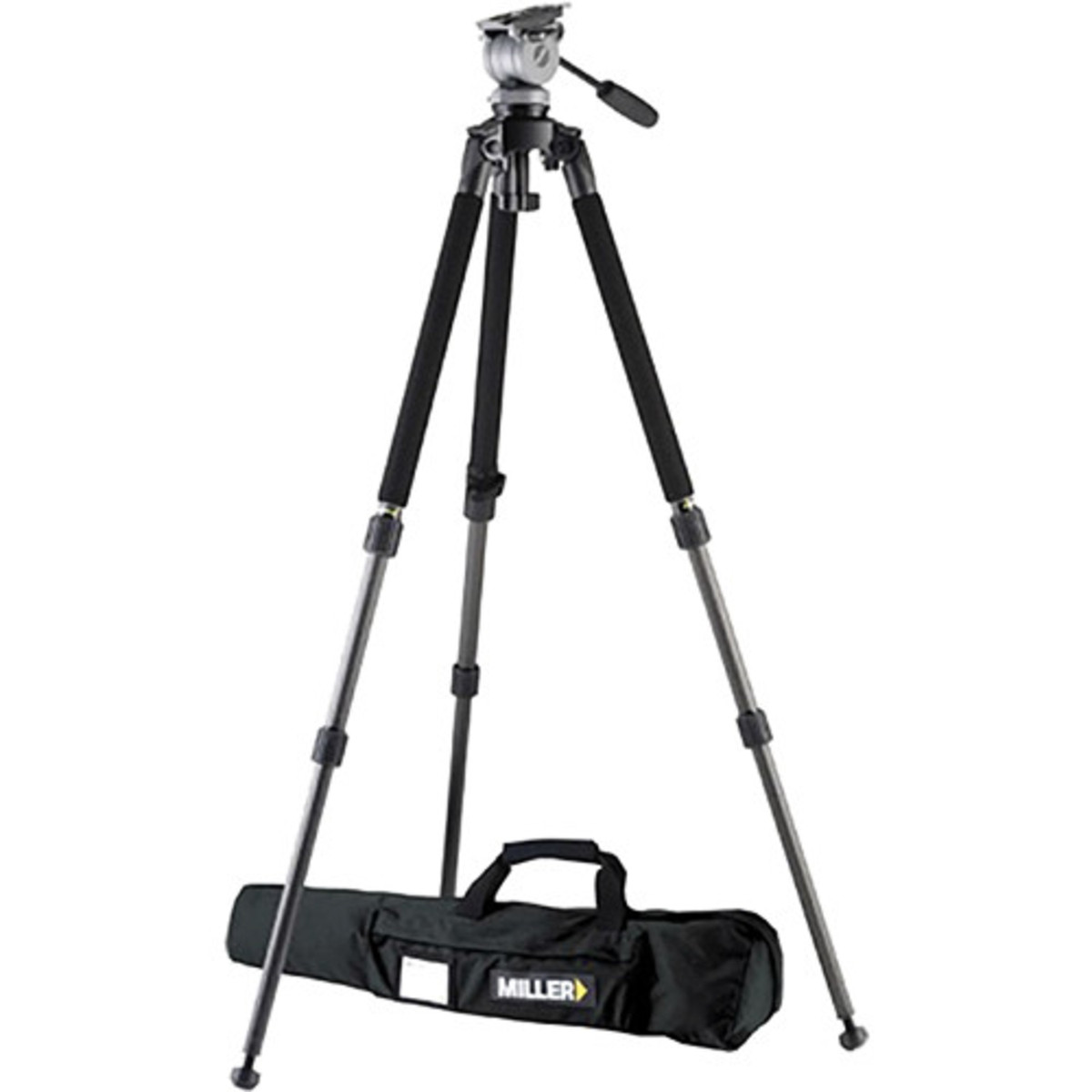

Miller 1640 DS10 Solo DV Alloy Tripod System


The 1640 Solo DS10 system combines the ultra-rigid alloy Solo 1630 tripod with the versatile DS10 75mm ball levelling head & selectable counterbalance.
The DS10 fluid head has earned a reputation for providing professional fluid drag movement for camera operators working solo in the field. DS10 is an all in one solution for payloads up to 5kg (11lbs).
Whether you are in the field or configured for production use, the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations.
The DS10 is matched with the 2 stage Solo (alloy) tripod resulting in a working height range of 371-1762mm (14.6-69.4″), and offering rapid action twist locks on independent stages with the versatility to set up system across all terrains.


Specification – DS10 Solo 75 2 Stage Alloy

Payload Range 2.5-5.0kg (5.5-11.0lbs)
Weight 4.8kg (10.7lbs )
Height Range 371-1762mm (14.6-69.4″)
Transport Length 837mm (33”)
Counterbalance Positions 2 selectable positions
Pan Tilt Drag Adjustable fluid drag, temperature resistant
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Sliding camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 137mm (5.4″)
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage telescopic
Lock Type Concentric Rapid Lock
Leg Material Alloy
182 DS10 fluid head
1630 Solo 75 2-stage tripod (alloy)
681 Pan handle – fixed with clamp
3516 Solo 75 2-stage tripod bag
