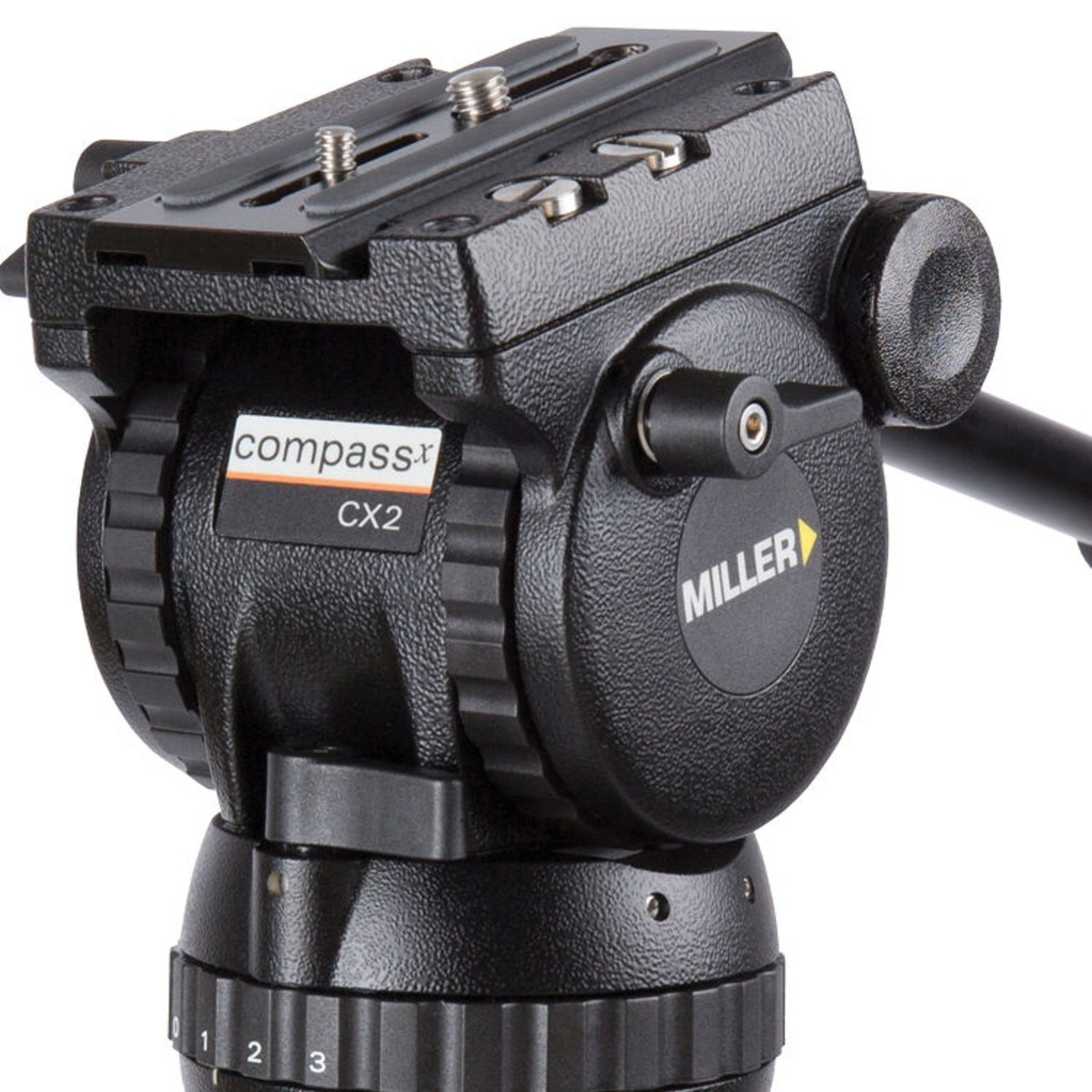

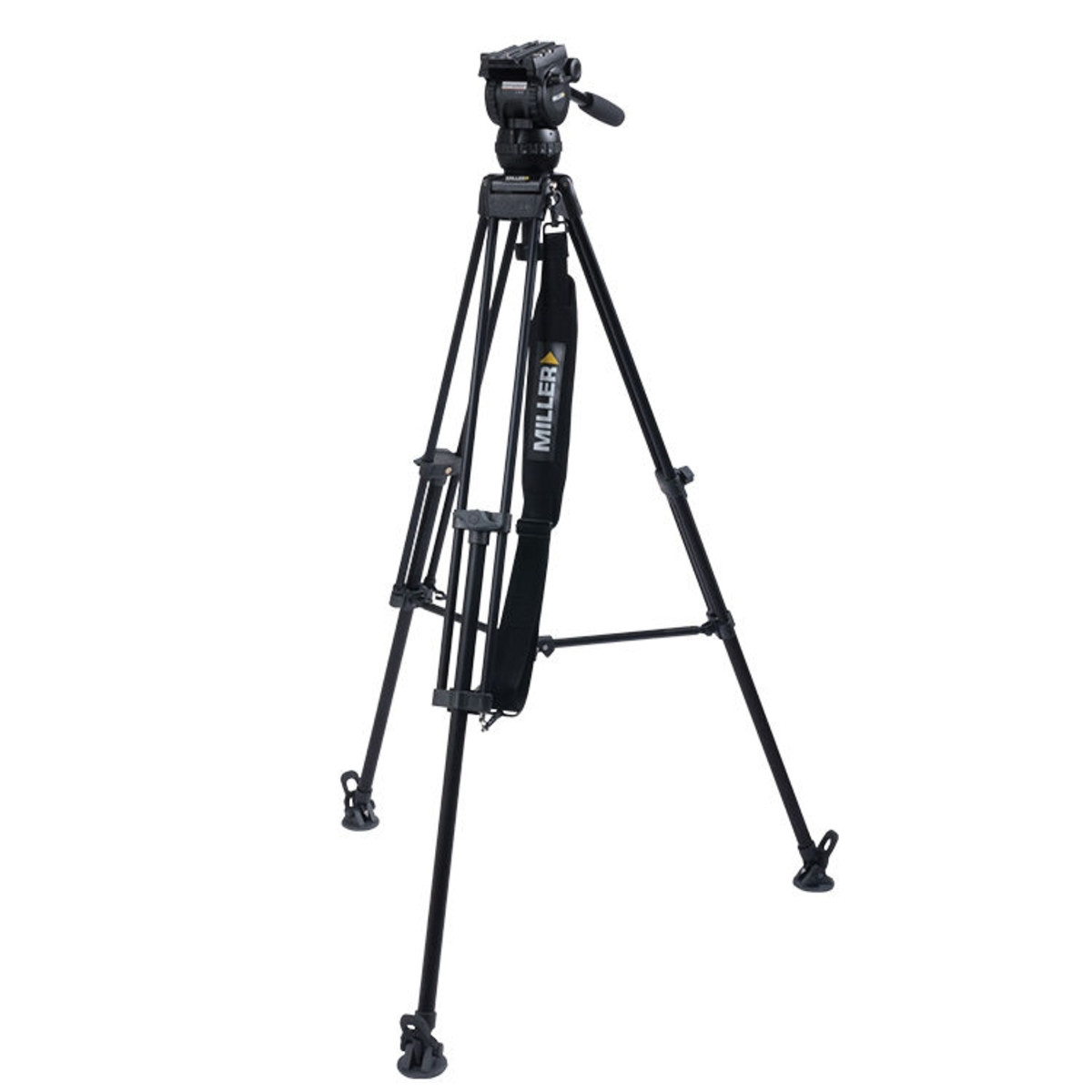

Miller CompassX CX2 Fluid Head With Toggle 1-Stage LW Alloy Tripod


The 3702 CX2 Toggle LW 1-stage (alloy) tripod system is designed for “on the go” creative professionals needing a versatile and affordable solution with uncompromised performance. Whether you shoot with a mirrorless camera, DSLR, mid-sized cine-rig or an ENG camera, CX2 is capable of balancing payloads from 0kg to 8kg. It features advanced precision fluid drag, intuitive controls, and fast set-up.

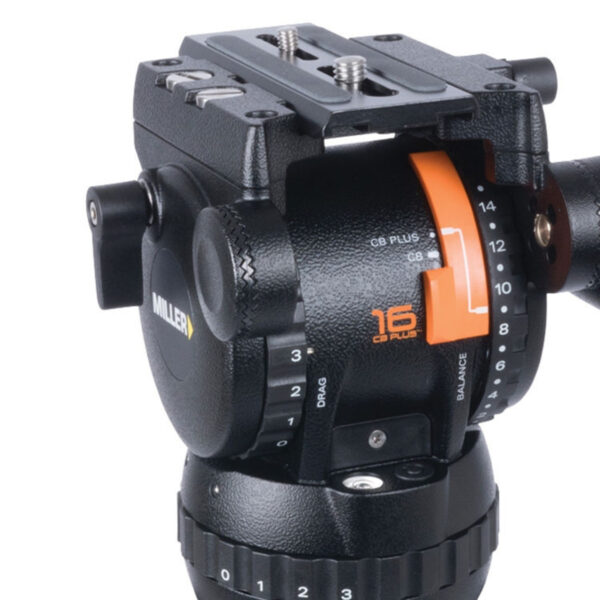

The CX2 employs CB Plus technology providing 16 positions of counterbalance and, with 3+0 settings of Miller’s unrivalled fluid drag coupled with 60mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.
The CX is matched with the LW Toggle tripod (alloy) with above ground spreader, where the positive Toggle locks mean quick set-ups while the rubber feet mean the system can be used over any terrain.


Specification – CX2 Toggle LW 1 Stage Alloy

Payload Range 0-8.0kg (0-17.6lbs)
Weight 5.9kg (13.0lbs)
Height Range 790-1500mm (31.1-59″)
Transport Length 1000mm (39.4″)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 3 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 167mm (6.6″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 1-stage
Lock Type Toggle
Leg Material Alloy
1090 CX2 fluid head
440 Toggle 75 LW tripod (alloy)
835 DS tripod spreader
679 Pan handle – fixed with clamp
550 Rubber feet (set of 3)
554 Shoulder strap (padded)

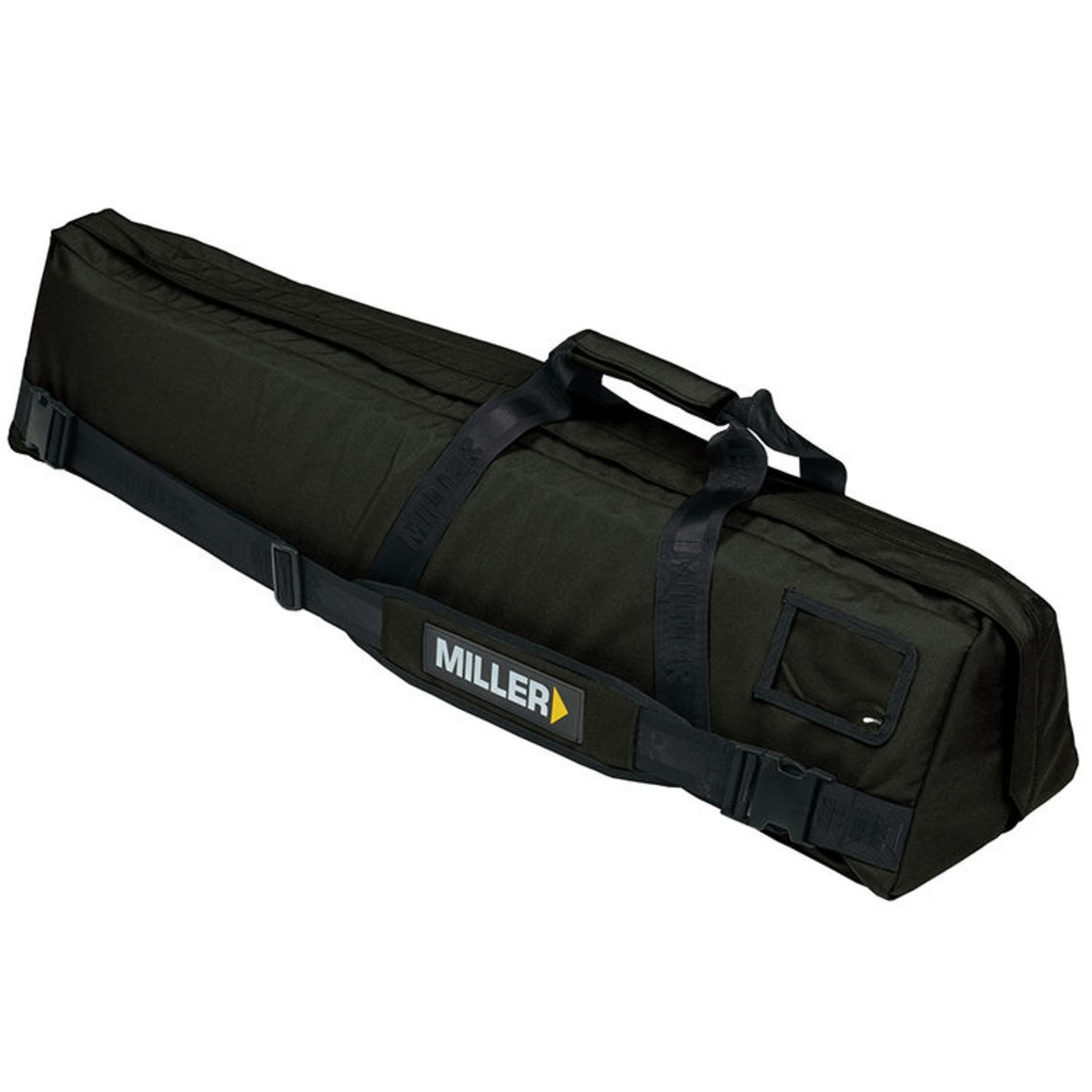

3512 Softcase 1-stage
