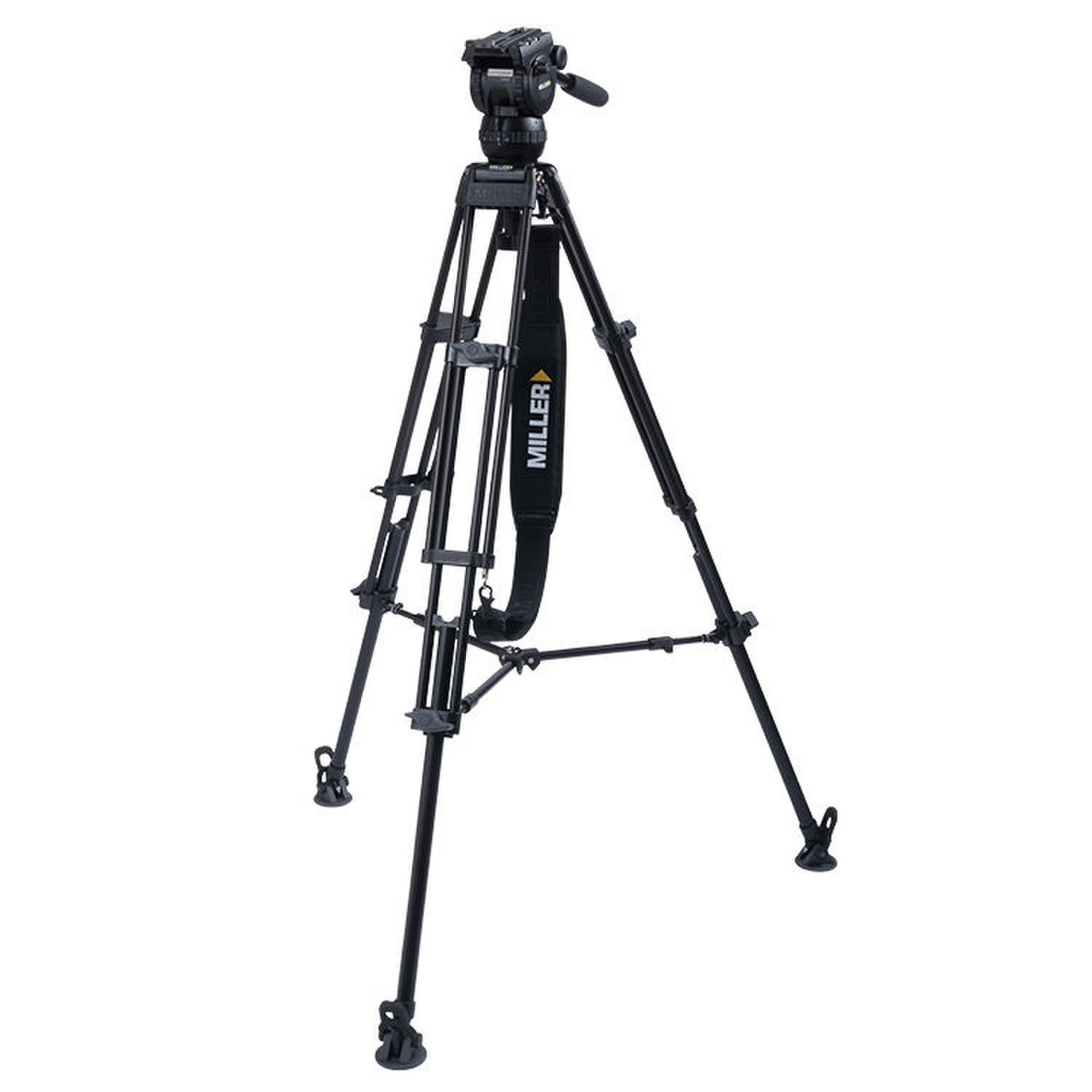

Miller CompassX CX6 Toggle 2-Stage Alloy Tripod System (Mid-Level Spreader)

Miller

The 3721 CX6 Toggle 2-stage (alloy) tripod system combines with CX6 fluid head and cost-effective yet extremely stable 420 Toggle tripod with above ground spreader. Designed to adapt to your shooting needs for camera rigs from 0kg to 12kg. Whether it’s ENG, soft news, documentary or filmmaking, the CX6 is a versatile, powerful head with outstanding performance. With advanced fluid drag, radial control rings and quick release side loading platform the CX6 is fast to set up, smooth and precise.
The CX6 employs CB PlusTM technology providing 16 positions of counterbalance and, with 3+0 levels of Miller’s unrivalled fluid drag, 60mm of camera plate travel, you can quickly tune to your tripod configuration for perfect camera control.
The CX6 is matched with the 2-stage Toggle (alloy) tripod and above ground spreader to yield a large height range 560-1730mm (22-68″), offer positive leg toggle locks and the versatility of using the system across all terrains.

$3,163.00

Specification – CX6 Toggle 2 Stage Alloy


Payload Range 0-12kg (0-26.4lbs)
Weight 6.7kg (14.8lbs)
Height Range 560-1730mm (22-68.1″)
Transport Length 860mm (33.9″)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 3 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 167mm (6.6″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage
Lock Type Toggle
Leg Material Alloy
Components
1092 CX6 fluid head
420 Toggle 75 2-stage tripod (alloy)
508 Above ground spreader
550 Rubber feet (set of 3)
679 Pan handle – fixed with clamp
554 Shoulder strap (padded)
3514 Softcase 2-stage
