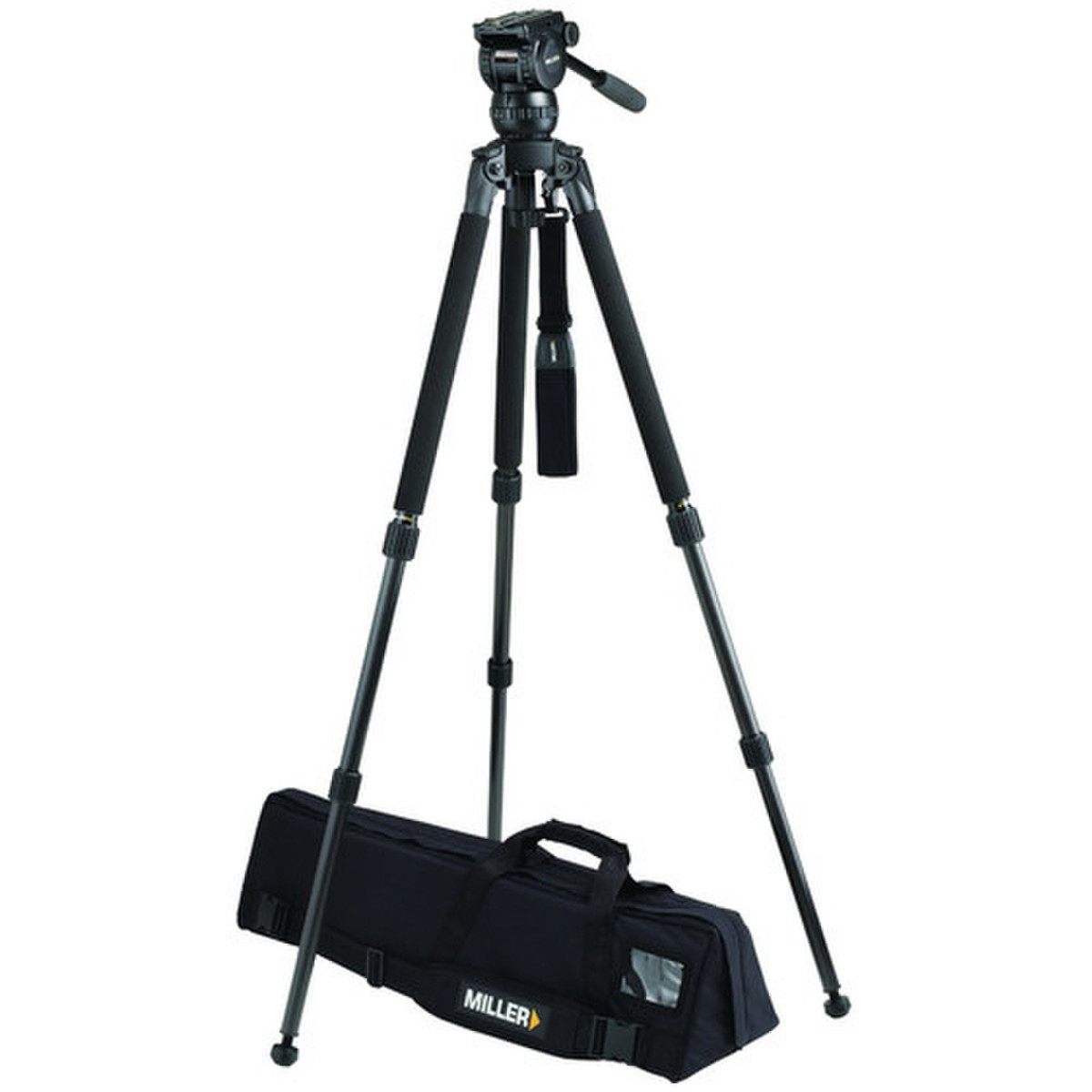

Miller CompassX CX8 Solo 75 2-Stage Carbon Fibre Tripod System


The 3744 CX8, Solo-Q 75 2-stage (carbon fibre) tripod system combines with the innovative lightweight 2500 Solo-Q CF tripod and CX8 fluid head. An ideal tripod system for cinematic and documentary, where the payload and centre of gravity changes frequently due to lens or accessories swapping.
CX8 is the premium head in the 75mm ball levelling Compassx series. Designed for camera rigs from 0kg to 12kg, with CB Plus™ 16 balance positions and 5 levels of fluid drag, it sets the standard in professional compact camera supports.
The CX8 is matched with the 2-stage Solo-Q (carbon fibre) tripod resulting in a working height range of 422-1810mm (16.6-71.3″), and offering rapid action twist locks, versatility of Q-Lock and Solo-Q leg angles with the added benefit of carbon fibre construction.


Specification – CX8 Solo-Q 75 2 Stage Carbon Fibre

Payload Range 0-12.0kg (0-26.4lbs)
Weight 5.6kg (12.4lbs)
Height Range 422-1810mm (16.6-71.3″)
Transport Length 870mm (34.3″)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 167mm (6.6″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40 to +65C -40 to +149F
Leg Extension 2-stage telescopic
Lock Type Concentric Rapid Lock
Leg Material Carbon fibre
1093 CX8 fluid head
2500 Solo-Q 75 2-stage tripod (carbon fibre)
679 Pan handle – fixed with clamp
1520 Solo-Q shoulder strap (Aircell)
3514 Softcase 2-stage
SKU: MIL-3744 Category: Brand:
