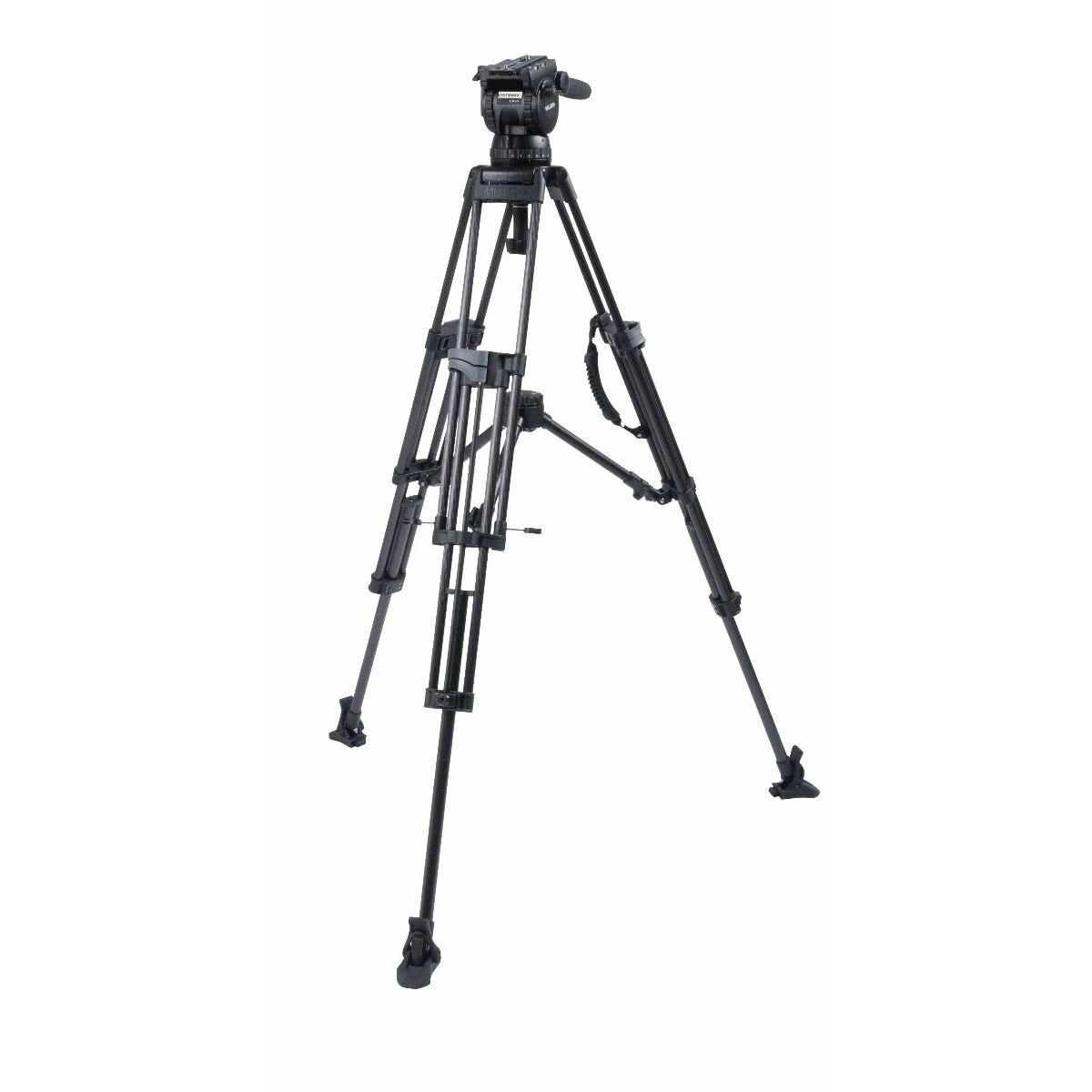

Miller CX14 Sprinter II 2-Stage Carbon Fibre Tripod System


The 3783 CX14 Sprinter II 2-stage (carbon fibre) tripod system combines the 1576 Sprinter II tripod and CX14 fluid head for fast and easy set-ups. Designed for the creative professionals needing a stable, higher capacity solution, it is capable of balancing from a broadcast down to a DSLR camera, thanks to CB PlusTM technology and Miller’s precision fluid drag system.

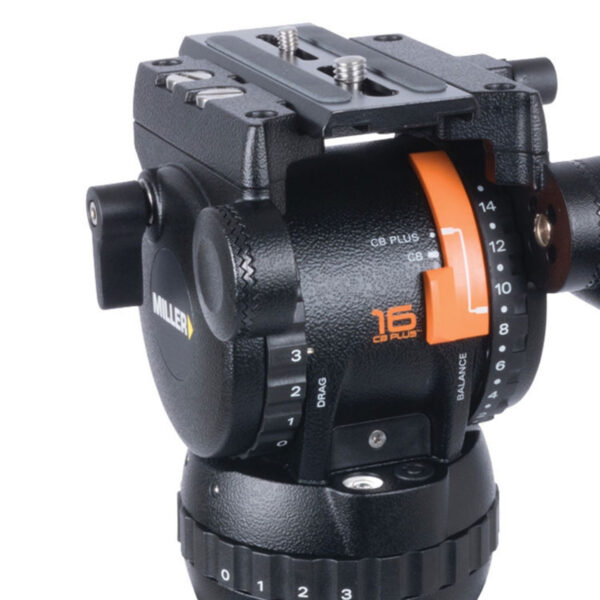

CX14 employs CB Plus™ technology providing 16 positions of counterbalance, 5+0 settings of Miller’s fluid pan and tilt drag. Perfect for payloads to 0-14.0 kg (0-30.9 lbs) and with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.
Matched with the 2-stage Sprinter II (carbon fibre) tripod and mid-level spreader providing speed of set-up and incredible height range all in a light weight carbon fibre system.


Specification – CX14 Sprinter II 2 Stage Carbon Fibre

Payload Range 0-14.0 kg (0 – 30.9 lbs)
Weight 7.2kg (15.9lbs)
Height Range 603-1693mm (23.7-66.6″)
Transport Length 853mm (33.6″)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range +90° / -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4”)
Mounting Base Ø100mm (3.9″) ball levelling
Height Above Bowl 150mm (6.0″)
Illuminated Controls Bubble level
Pan Handle Fixed 390 mm (15.4”)
Temperature Range -40° to +65°C (-40° to +150°F)
Leg Extension 1-stage
Lock Type HS dual action
Leg Material Carbon fibre
1097 CX14 fluid head
1576 Sprinter II 2-stage tripod (carbon fibre)
993 Mid-level spreader
475 Rubber feet (set of 3)
679 Pan handle – fixed with clamp

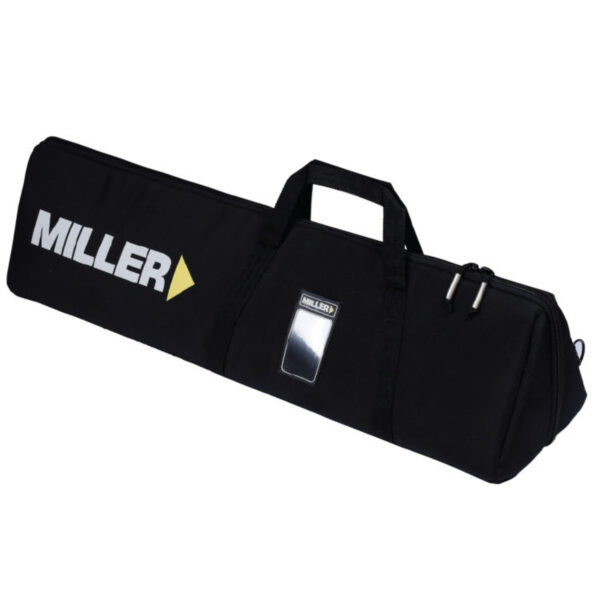

3502 Arrowx softcase 2-stage
