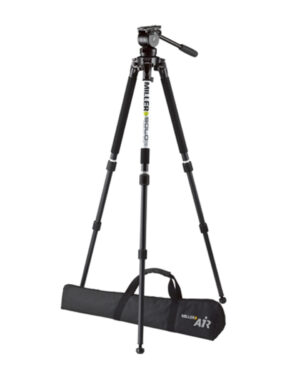

Miller DS10 Solo DV Carbon Fibre Tripod System (1511)


The 1511, DS10 Solo-Q 75 system combines the ultralight, ultra-rigid carbon fibre Solo-Q tripod with the versatile DS10 75mm ball levelling head & selectable counterbalance.
The DS10 fluid head has earned a reputation for providing professional fluid drag movement for camera operators working solo in the field. DS10 is an all in one solution for payloads up to 5kg (11lbs).
Whether you are in the field or configured for production use, the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations.
The DS10 is matched with the 2 stage Solo-Q carbon fibre tripod offering a workingheight range of 379-1767mm (14.9-69.5″), rapid action twist locks, versatility of the Solo leg angles with the added benefit of carbon fibre construction.


Specification – DS10 Solo-Q 75 2 Stage Carbon Fibre

Payload Range 2.5-5.0kg (5.5-11.0lbs )
Weight 4.5kg (10.0lbs )
Height Range 371-1751mm (14.6-68.9″)
Transport Length 831mm (32.7″)
Counterbalance Positions 2 selectable positions
Pan Tilt Drag Adjustable fluid drag, temperature resistant
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Sliding camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 137mm (5.4″)
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2 Stage Telescopic
Lock Type Concentric Rapid Lock & Q-Lock
Leg Material Carbon fibre
SKU: MIL-1511 Category: Brand:
