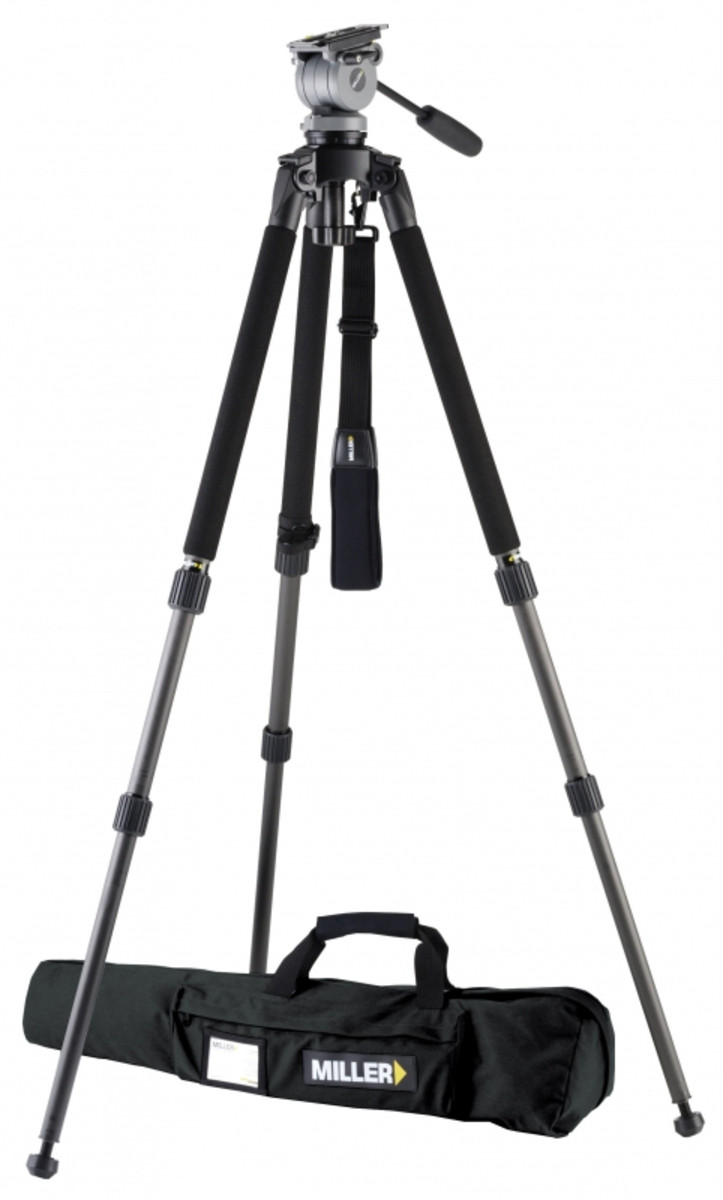

Miller DS20 Solo DV Carbon Fibre Tripod System (1514)


The 1514 DS20, Solo-Q 75 system offers an ideal price to performance ratio and ultra-light carbon support for payloads between 5-10kg (11-22lbs).
The DS20 provides a perfect lightweight solution for those who want a smaller fluid head but need more capacity than the DS10. An economical solution for payloads up to 10kg (22lbs).
Whether you are in the field or configured for small studio use, the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations. Whatever your application the DS20 will impress your clients.
The DS20 is matched with the 2 stage Solo carbon fibre tripod offering a working height range of 379-1767mm (14.9-69.5″), rapid action twist locks, Q-Lock speed and versatility of the Solo leg angles with the added benefit of carbon fibre construction.


Specification – DS20 Solo-Q 75 2 Stage Carbon Fibre

Payload Range 5.0-10.0kg (11.0-22.0lbs)
Weight 4.5kg (10.2lbs )
Height Range 379-1767mm (14.9-69.5″ )
Transport Length 831mm (32.7″)
Counterbalance Positions 2 selectable positions
Pan Tilt Drag Adjustable fluid drag, temperature resistant
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Sliding camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 137mm (5.4″)
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2 Stage Telescopic
Lock Type Concentric Rapid Lock & Q-Lock
Leg Material Carbon fibre
184 DS20 fluid head
2500 Solo-Q 75 2-stage tripod (carbon fibre)
681 Pan handle – fixed with clamp
1520 Solo-Q shoulder strap (Aircell)
3516 Solo-Q 75 2 Stage tripod bag
