Obsidian EN12i

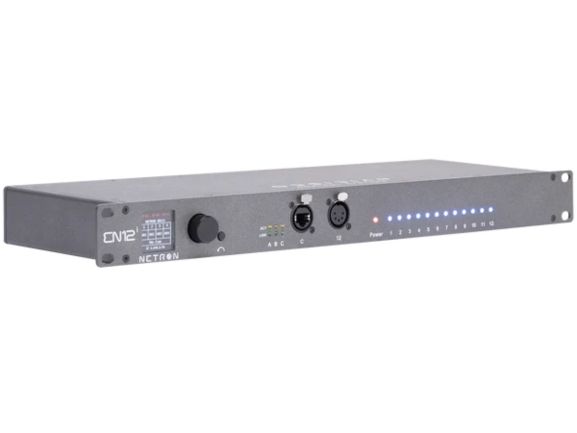

The Netron EN12i is a powerful high-density Art-Net and sACN to DMX gateway with twelve RDM compatible wire terminal or RJ45 outputs.

Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for permanent installations requiring a lot of physical DMX ports. Analog contact closures or an optional remote button station allow for recall of presets, routings, mergers or any of the internal cues.

A simple but effective cue system allows recall of full device snapshots of static DMX values. Cues can be basic static scene playback with fade timings, or can be linked together to create simple cue loops. Cue playback takes over all DMX ports, and cue data can be transmitted as sACN or Art-Net streams at the same time. Cues are recalled by the display menu, contact closures, web commands or the BS10 Station. While not a full architectural lighting control system the EN12i offers a simple cue structure and that can be appropriate for many applications.

The innovate wiring configurations allow the NETRON EN12i to be configured with RJ45, screw-terminals or IDC (Insulation displacement connectors). All options are included through exchangeable backplates.

Additionally, the EN12i provides convenient front access ports to the internal gigabit switch and a single 5pin DMX output.
