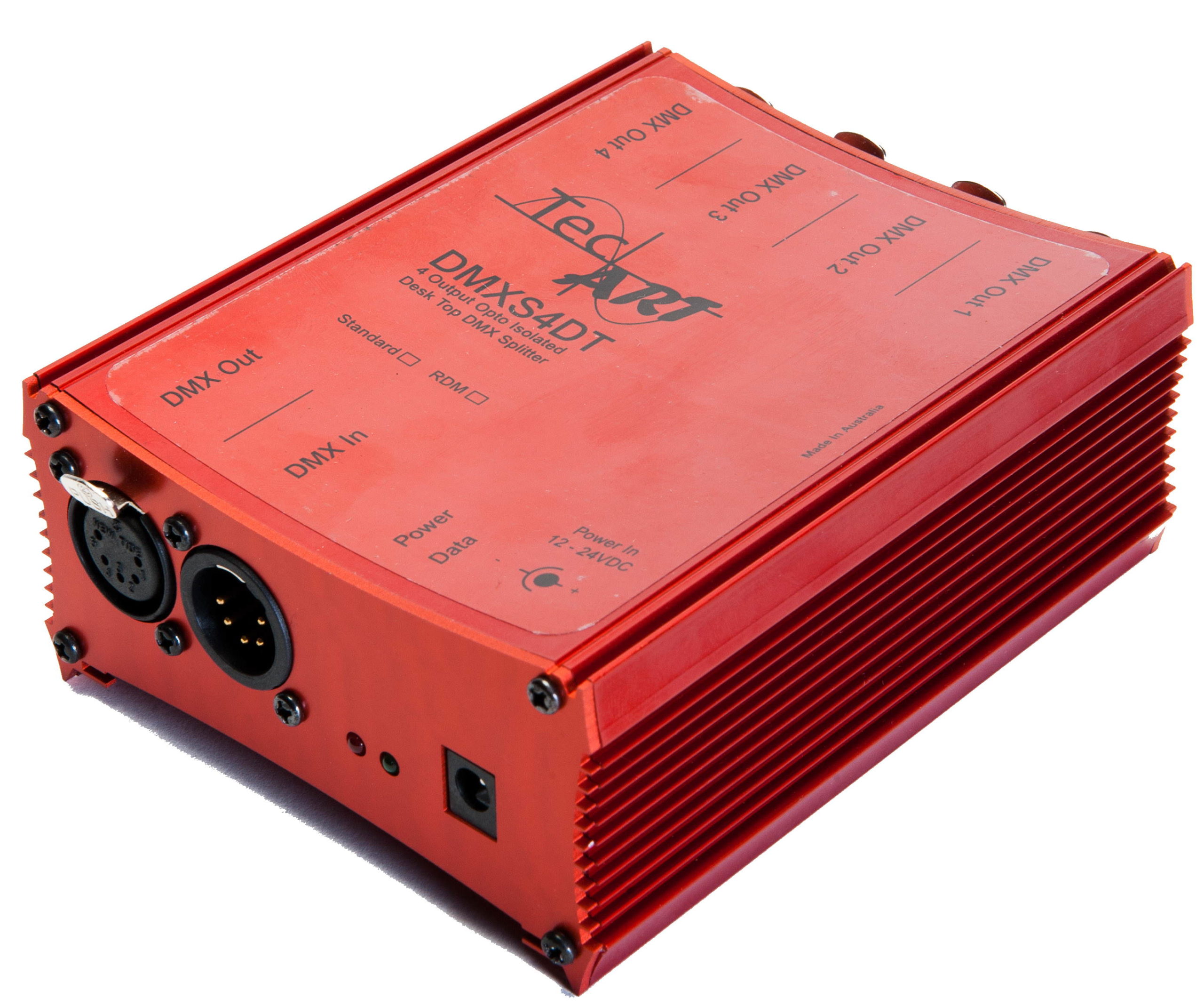

TecArt Splitter Desktop RDM 4 way

TecArt

The TecArt range of data splitters are available as desktop units.

Each output has a separate driver and opto-isolator to ensure the highest possible level of protection.

The unit is available as a standard DMX splitter or with the option of RDM.

RDM compliant device “ANSI/ESTA E1.20 Entertainment Technology – Remote Device Management over USITT DMX512”.

RDM or Remote Device Management is a protocol enhancement to DMX512 that allows Bi-directional communications between light fixtures and lighting consoles or RDM specific software over a standard DMX line.

DMXS4DT can be supplied with an external 12 – 48VDC power supply.

FEATURES
• DMX-512 In/Out/Thru.
• External Power Supply 12 – 48VDC.
• 2 Main indication LEDs.

SPECIFICATIONS
• Input voltage: 12 – 48VDC.
• Power supply: External.
• Total power: 6W @ 24VDC.
• Dimension: 105mm (L) 85mm (W) 60mm (H).
• Mounting method: Desktop.
• DMX signal input: XLR.
• DMX signal output: XLR.
• Outputs: 4 Opto isolated.
• Temperature: 0 – 40 degree Celsius.
