Portkeys HD7T – 7-Inch Touchscreen Monitor with Professional Tools

PortKeys
  • 7″ HDMI 1280 x 800 Touchscreen
  • Up to DCI 4K24/UHD 4K30 Video Input
  • 1000 cd/m² Brightness
  • HDMI & Coax A/V Input, Headphone Jack
  • Professional Built-In Imaging Tools
  • 3D LUT Support, L-Series Battery Plate

$219.00

Add pro monitoring tools to your camera rig with the HD7T 7″ Touchscreen Monitor with Professional Tools from PORTKEYS. This bright, 7″ on-camera touchscreen display offers 1280 x 800 resolution, 1000 cd/m² brightness, and the ability to input up to DCI 4K24 or UHD 4K30 video via HDMI and NTSC/PAL formats via a coax A/V input.

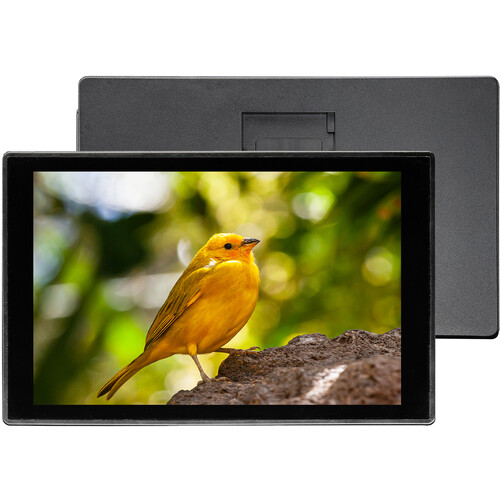

Bright 7″ Touchscreen Monitor
This 7″ IPS LCD on-camera monitor features 1000 cd/m² and a 1000:1 contrast ratio for daylight visibility. It has a wide viewing angle and reproduces accurate colors with 8-bit depth in the Rec. 709 color gamut from any angle. The UI has a simplified, clear layout, and it’s controllable using simple touch gestures. It is easy and natural to use for both beginners and professionals.

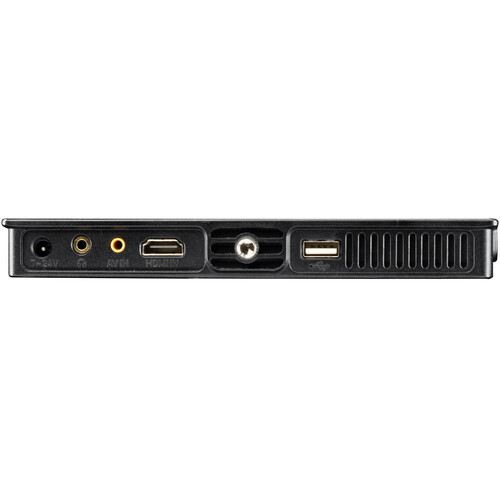

HDMI and A/V Inputs
The monitor features HDMI input up to DCI/UHD 4K resolution, and it also features a coax A/V input for lower resolution NTSC/PAL input formats for viewing video for older applications.
3D LUTs
The USB-A input provides the ability to upload custom 3D LUTs from a flash drive, and you can store up to 20 LUT files on the monitor itself. When utilizing video from the HDMI input, this allows you to color grade on the fly with effects and adjustments to speed up your post-production workflow.
Sun Hood
The included sun hood easily snaps onto the front of the monitor using the included bracket, and it keeps all controls accessible.By reducing glare, the image can be viewed more accurately in bright lighting situations.

Power Options

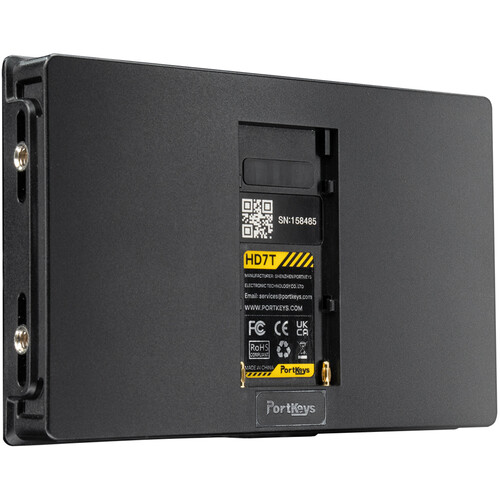

You can power the monitor using the built-in L-series battery plate, or you can provide power using the power adapter with the DC barrel input.
Physical Design
The monitor is designed with a durable yet lightweight plastic chassis that features a 1/4″-20 thread on the bottom and both sides for mounting onto stands, riggings, or the included ball head shoe mount. There are also customizable tactile shortcut keys on the top for when you want to keep your hands free of the screen to prevent accidental touch or access the controls from behind.
Image Tools
  • 3D LUT support with custom LUTs via USB
  • Peaking
  • False color
  • Luma
  • RGB/luma waveform
  • Real-time eye focus
  • Anamorphic de-squeeze
  • Frame guides, crosshairs, grids
  • Color temperature
  • Brightness
  • Sharpness
  • Rectangular cropping
  • Check field
  • Zebra
  • Image flip
  • Luma histogram
  • Audio meters
  • HDR/HLG support
SKU: PKY-PK-HD7T Category: Brand:
