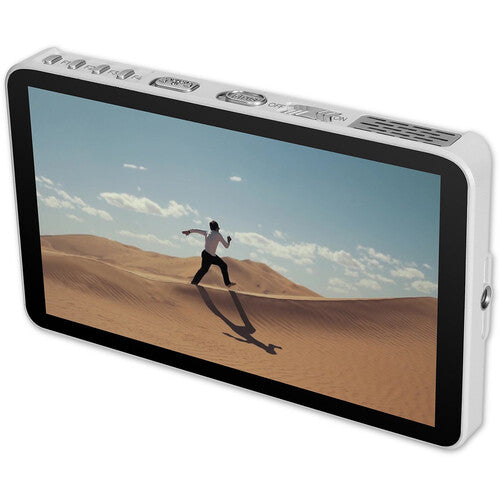

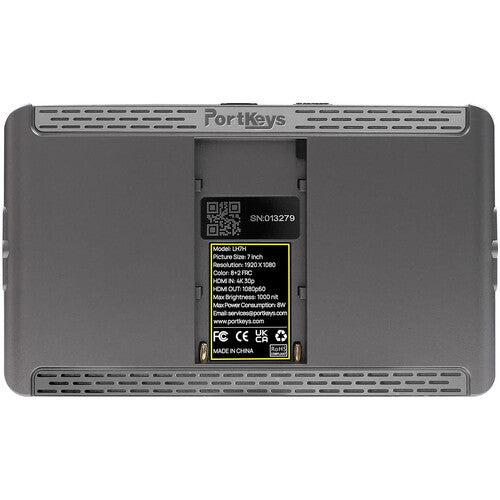

Portkeys LH7H – 7-inch High Brightness Touchscreen Monitor (White)
7 inch touchscreen, 1920 × 1080
Supports DCI 4K24 and UHD 4K30 input
1000 cd/m² brightness with HDR preview

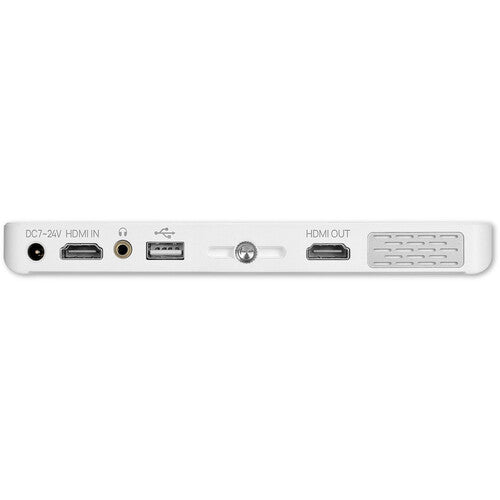

HDMI input and output
3.5 mm headphone monitoring
Responsive touch controls
$565.00
The Portkeys LH7H-W is a 7-inch high-brightness touchscreen monitor designed for on-camera use, offering a 1920 x 1080 resolution, 1000 cd/m² brightness, and HDMI input/output supporting up to DCI 4K24 or UHD 4K30. It includes pro monitoring tools such as waveform, peaking, histogram, and 3D LUT support, making it suitable for daylight shooting and accurate image evaluation.
