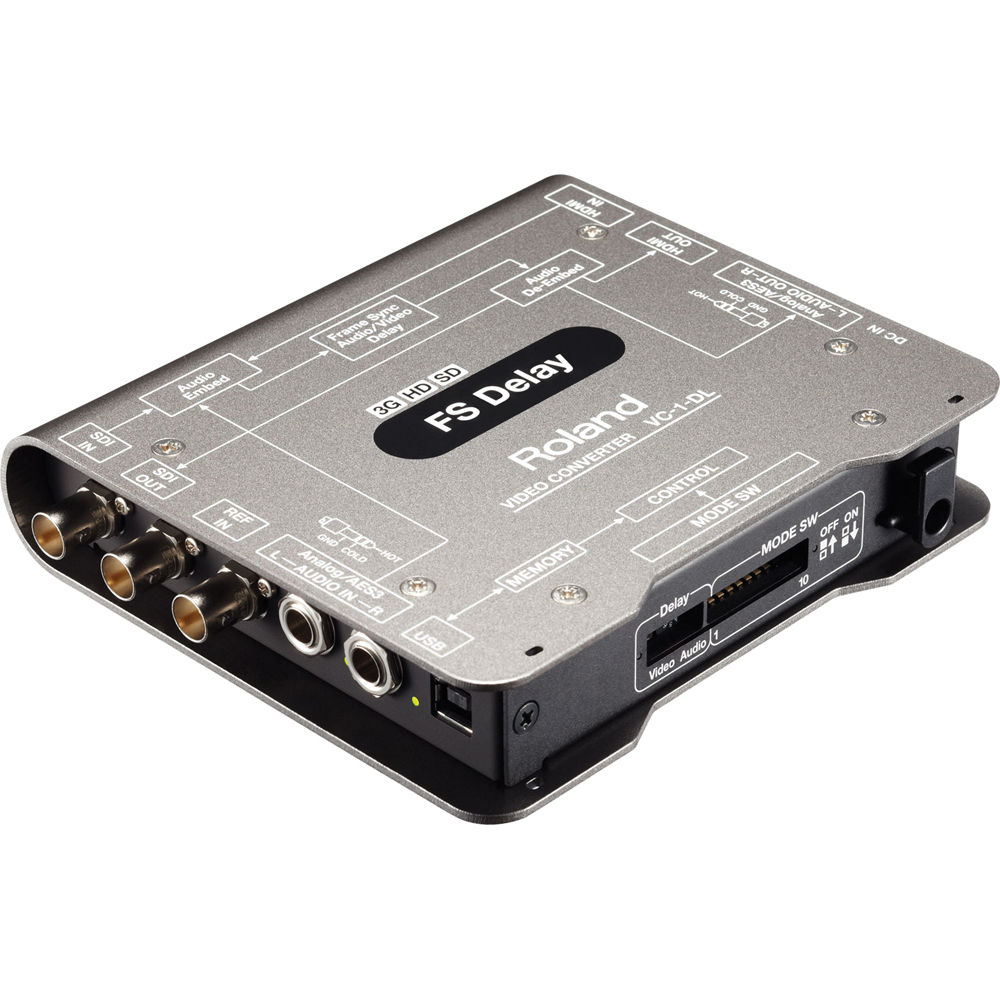

Roland VC-1-DL Video Convertor with Delay & Frame Sync

Roland

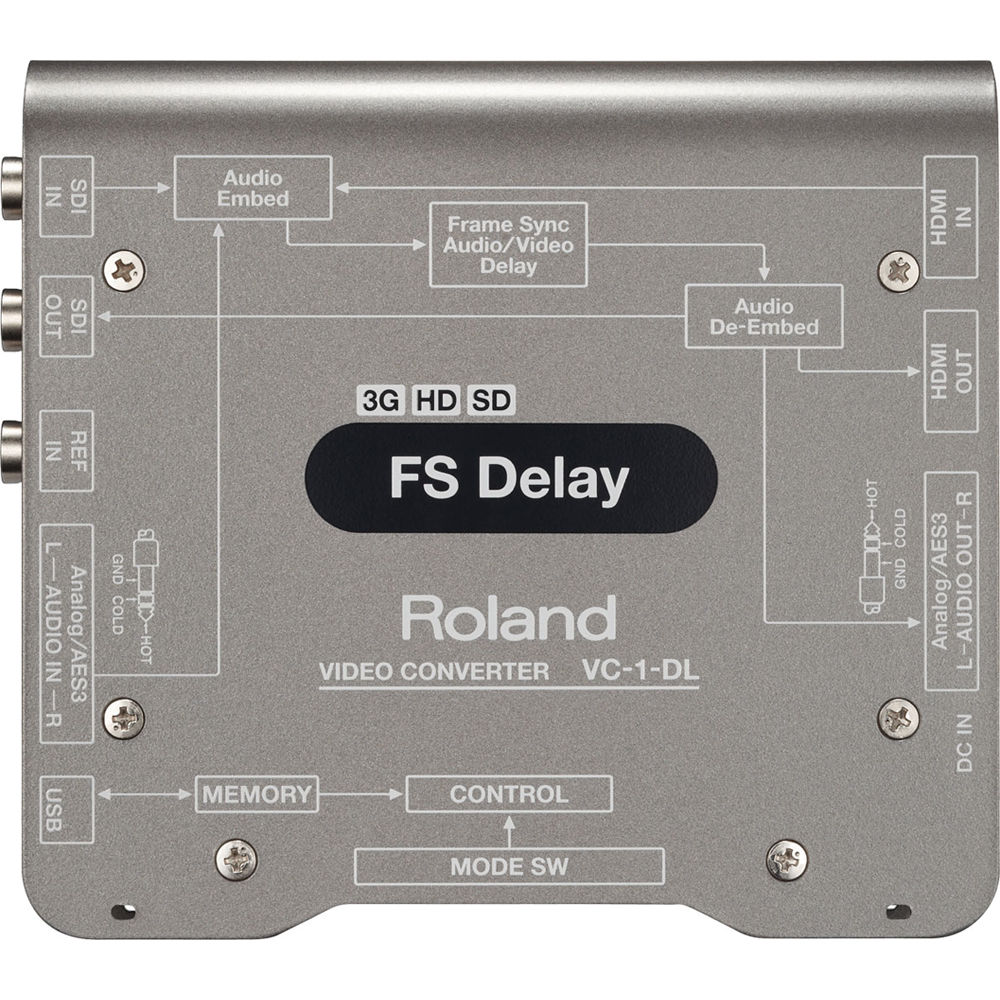

The VC-1-DL is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supported, thereby ensuring that high-quality audio signals can be maintained through the signal flow.

$1,080.00

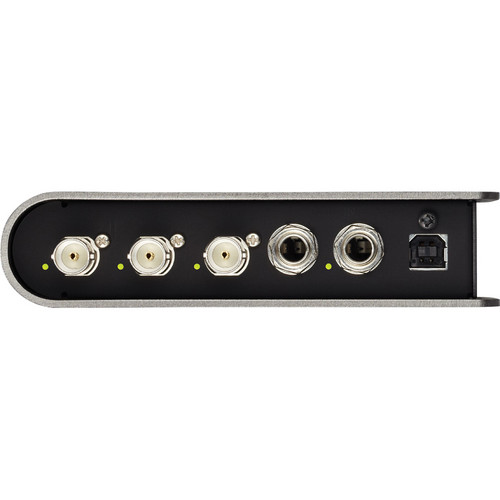

Input SDI Connector: 1 x BNC type

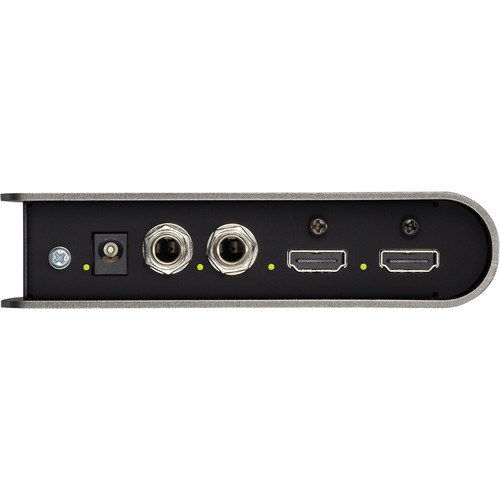

HDMI Connector: 1 x Type A (19 pins)
Analog Audio Connector: 1/4″ TRS phone type (balanced) x 1 pair (L/R)
Digital Audio Connector: 1/4″ TRS phone type (balanced) x 1 (Combined use with Analog Audio R ch Connector)
Reference Connector: 1 x BNC type
Reference Signal Format: Black Burst, Bi-level, Tri-level
Reference Impedance: 75 Ω

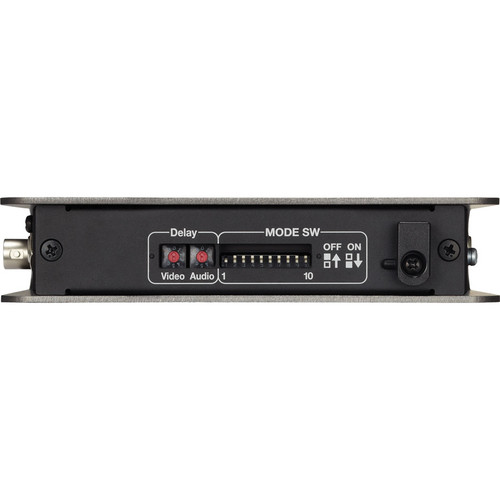

Processing Video delay (0 to 4.5 frames)
Audio delay (0 to 4.5 frames)
Audio embedding
Audio de-embedding
Output SDI Connector: 1 x BNC type
HDMI Connector: 1 x Type A (19 pins)
Analog Audio Connector: 1/4″ TRS phone type (balanced) x 1 pair (L/R)
Digital Audio Connector: 1/4″ TRS phone type (balanced) x 1 (Combined use with Analog Audio R ch Connector)
Input Format SDI Input Signal Standards: SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Input Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M), 1280 x 720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720 x 487/59.94i, 720 x 576/50i (Conforms to ITU-R BT.601-5)
Audio Format: Linear PCM, 24 bits, 48 kHz, 1 x 16 channel (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Input Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280 x 720/60p/59.94p/50p/30p/29.97p/25p, 720 x 480/59.94i, 720 x 576/50i (Conforms to CEA-861-E)
HDMI Input Audio Format: Linear PCM, 24 bit, 48 kHz, 1 x 8 channel
Output Format SDI Output Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Output Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M), 1280 x 720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720 x 487/59.94i, 720 x 576/50i (Conforms to ITU-R BT.601-5)
SDI Output Audio Format: Linear PCM, 24 bits, 48 kHz, 1 x 16 channel (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Output Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280 x 720/60p/59.94p/50p/30p/29.97p/25p, 720 x 480/59.94i, 720 x 576/50i (Conforms to CEA-861-D)
HDMI Output Audio Format: Linear PCM, 24 bit, 48 kHz, 1 x 8 channel
Level Analog Audio Input: 4 dBu
Analog Audio Maximum Input: 24 dBu
Analog Audio Output: 4 dBu
Impedance Analog Audio Input: 110 Ω
Analog Audio Output: 600 Ω
Digital Audio Output: 110 Ω
Signal Format Digital Audio Output: AES3, 16/24 bits, 32/48 kHz, 2 channel
USB 1 x USB Type B (Hi-Speed USB)
Power Supply 9 VDC
Power Consumption 8 W
Operation Temperature 32 to 104˚F (0 to 40˚C)
Dimensions 5.93 x 5.12 x 1.18″ (15.06 x 13.00 x 2.99 cm)
Weight 1.10 lb (0.50 kg)
SKU: ROL-VC1DL Category: Brand:
