SmallHD 1303 HDR Production V-Mount Monitor Bundle

SmallHD

The new SmallHD 1300 Series production monitors are the perfect blend of functionality and portability. With a razor-sharp display and a rugged build quality, the 1300 Series will boldly go where no other production monitor has ever gone before.

$7,650.00

Clarity that produces certainty.

The display size, resolution, and pixel density of the 1303 production monitor make it an invaluable tool for precision focus pulling. When you don’t have the time or proper measurements, a razor-sharp, low latency display will help you hit your marks.

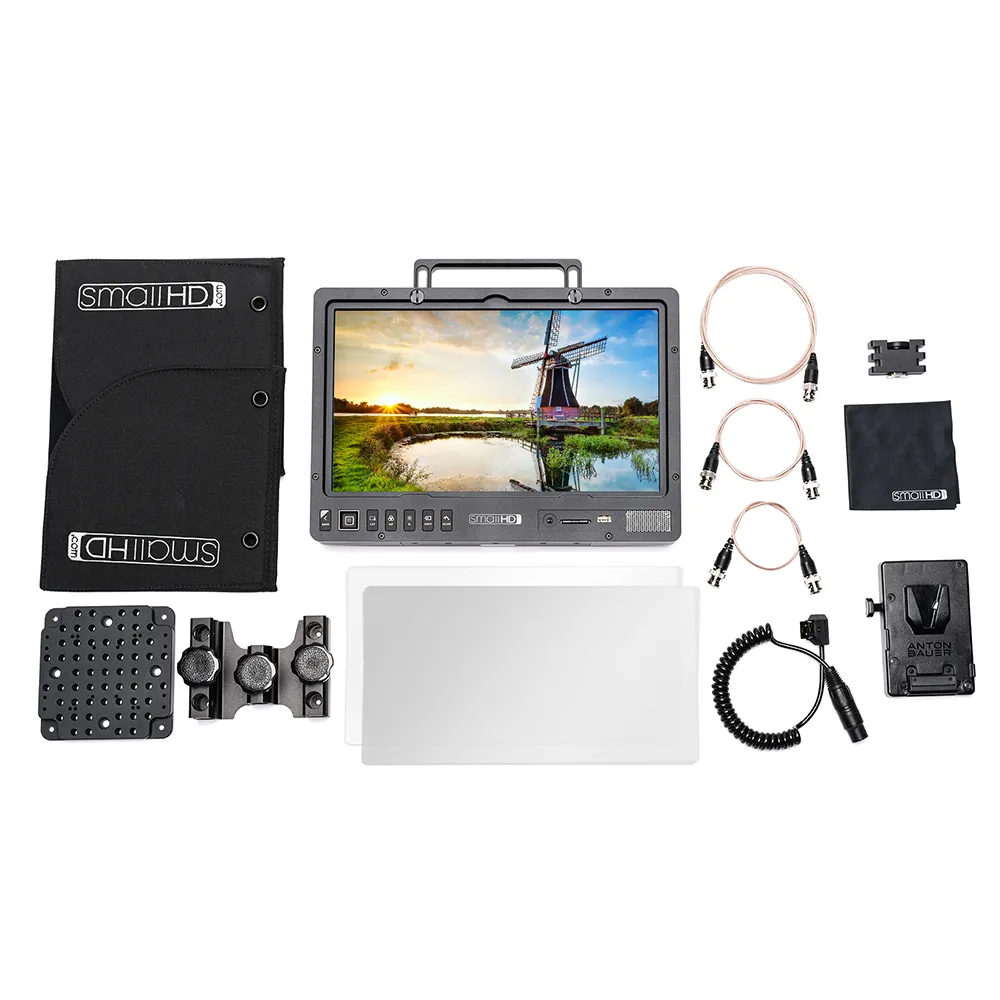

What’s Included in the Bundle:

  • SmallHD 1303 HDR Production Monitor
  • V-Mount Power Kit + Cheesplate
  • C-Stand Mount for 1300 Series
  • 1300 Series Sunhood
  • 1300 Series Screen Impact Protector
  • UltraMatte Screen Protector for 1300 Series
  • RapidRail Mount
  • 30cm Thin SDI Cable
  • 61cm Thin SDI Cable
  • 120cm Thin SDI Cable

Calibrated for collaboration.

Preview what you’re sending downstream using the Output Preview Page, while utilising software features like customisable focus assist and peaking on your 1303 monitor. If it’s the only monitor near by, its colour accuracy (100% REC 709) and broad viewing angle make it easy to share with clients and directors.

Can you see me now? Good.

With a panel roughly 3x brighter than most production monitors, the 1303 is not restrained by ambient light. Its optically bonded LCD combats glare and sunlight, allowing you to pull focus in less than ideal shooting environments.

Proper power options.

Power options for the 1303 monitor are simple and convenient. The 2-pin LEMO out allows for a seamless integration with accessories such as the Teradek Bolt wireless receiver.

Travel made easy: carry-on accessories.

All SmallHD® production monitors are equipped with the Rapid Rail Mounting System; the simplest way to connect, store, and travel with critical monitor accessories.

Smooth is fast.

Transitioning from table to C-Stand happens safely and securely with the 1303’s VESA compatible mounting accessory.

Boldly go.

The 1303 monitor is the perfect blend of functionality and portability. With a razor-sharp display and a rugged build quality, the 1303 will boldly go where no other production monitor has ever gone before.

Specifications:

Display

Panel Type IPS
Size Diagonal 13 Inch
Resolution 1920×1080
Pixel Density (PPI) 170 PPI
Aspect Ratio 16:9
Active Area 15(W) x 8.42(H) Inches
Brightness 1500 nits
Contrast
Colour Gamut 100% Rec.709
Colour Depth 10­ bit
Viewing Angle 178 Deg.
Backlight Type LED
Adjustable Backlight Yes
Temperature Adaptive Colour No

Input Signal Types/Formats

3G-SDI YCC 4:2:2 @ 10 bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI YCC 4:2:2 @ 10 bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Not Supported
HDMI Supports YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50
Component Not Supported
Composite Not Supported
Audio HDMI & SDI ­ Monitor through Speakers in Front Bezel or through Headphone Jack ­ Metering up to 8 channels

Output Signal Types/Formats

3G-SDI YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88,
HD-SDI YCC 4:2:2 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 all at 8 bits
SD-SDI Not Supported
HDMI Supports YCC 4:2:2@ 8 bits, RGB & YCC 4:4:4 @ 8 bits: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i120, 480i119.88, 480i60, 480i59.94, 576i100, 576i50
Component Not Supported
Composite Not Supported
Audio No Audio output (for initial firmware release) ­ to be supported at a later release

Connector Type

SDI 2x 3G Inputs, 2x 3G Outputs
HDMI 1x Input, 1x Output
Component Not Supported
Composite Not Supported
Audio 1x Headphone Jack on Front of Monitor
Power In 1x XLR 4­pin Input 12­-34VDC, 1x Lemo Output 12VDC @ 4A Max
Power Out 1x XLR 4­pin Input 12­-34VDC, 1x Lemo Output 12VDC @ 4A Max
USB 1x Front USB2, 2x Rear USB2

Controls

Primary Control Interface Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: LUT Selection; Backlight Level; Input Switch; Settings Menu; Multi View; Page 1­4 Instant Selection; Tools Menu
Record/Capture Dedicated Capture Button on Front Bezel
User Defined Functions
RF Wireless Remote / External Control
USB Remote / External Control

Data I/O

Storage SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades
USB
Wireless
Wifi

Power

Connector Type XLR 12­34VDC IN for Batteries, 12V Lemo 2­pin OUT 4A Max
Voltage DC Operating Voltage Range: 12-34 VDC AC Operating Voltage Range: 90 – 240 VAC
Power Consumption
Battery Plate Included
Recommended Power Supply
Overload Protection
Smart Battery Compliant
Battery Types Gold Mount / V­Mount via 4­pin XLR Connector
Battery Chemistry
Output Voltage (VDC)
Battery Capacity (mAh)
Battery Charging Time (hours)

Environmental

Compliance FCC, IC, CE, RoHS
Operating Temperature 32F ­ 100F
Storage Temperature 4F-120F
Screen Protection Acrylic Screen Protector Available as an Option
Height
Width
Depth/Length
Weight (Item Only without battery)
Weight (Packaged) 7.62kg
Mount Points VESA Mount, Multiple 1⁄4”­20 & 3⁄8”­16 Threads on Top, Bottom, Left & Right Sides. Cold Shoe Style Rails on Back of Monitor
Note:

Software

Pixel Zoom (type) 2x & 4x Zoom with smooth pan via joystick
Frame Guides Yes: Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate(Manual/Automatic) Yes ­ Automatic
Image Flip (Manual/Automatic) Yes ­ Automatic
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colours) Yes ­ User Adjustable Colour and Intensity
Peaking Yes ­ User Adjustable Intensity
False Colour Yes ­ Rainbow & Arri Style
Zebra Yes ­ Dual ­ User Configurable
Waveform Yes ­ Luma & RGB Style, Fully User Customisable w/ Region of Interest Highlighting
Vectorscope Yes
PIP
RGB Parade Yes ­ Fully User Customizable
Histogram Yes ­ Luma & RGB Style
Horizon Indicator
Image Capture Yes ­ With Dedicated Button
Dailies Recording/Playback
Master Recording
Wifi Streaming
Custom LUTS Yes ­ Loadable by Page or as Systemwide Colour Calibration
LUT Creation
LUT Downstream Yes ­ Available on SDI 1 or HDMI Out
LUT Import via SD Card
Onion Skinning
Image Overlay Yes with Intensity Slider and Blink Setting
Blue Only
Firmware Compatible with 1700 Series Firmware V3.0 and Later
Audio Meters Yes ­ HDMI & SDI up to 8 channel
SKU: SHD-33.1.MON-1303HDR-VM-KIT Category: Brand:
