SmallHD 703 UltraBright V-Mount Directors Kit

SmallHD

The all new SmallHD 703 Ultra Bright is the brightest 7″ monitor available packing a huge 2500+ nits brightness. The 703 Ultra Bright ships as a 10-bit, 1920×1080 resolution monitor with a completely redesigned milled aluminium unibody and optically bonded gorilla glass screen makes the 703 extremely rugged and durable.

New features include HDR Preview, customisable function buttons along with the ability to use the SDI out which doubles as a second SDI input for dual view mode for A/B camera.

$5,450.00

The 703 supports 12v Lemo Power with room for optional accessory plates such as Sony L-Series, V-Mount & AB-Mount available.

What’s Included in the Bundle:

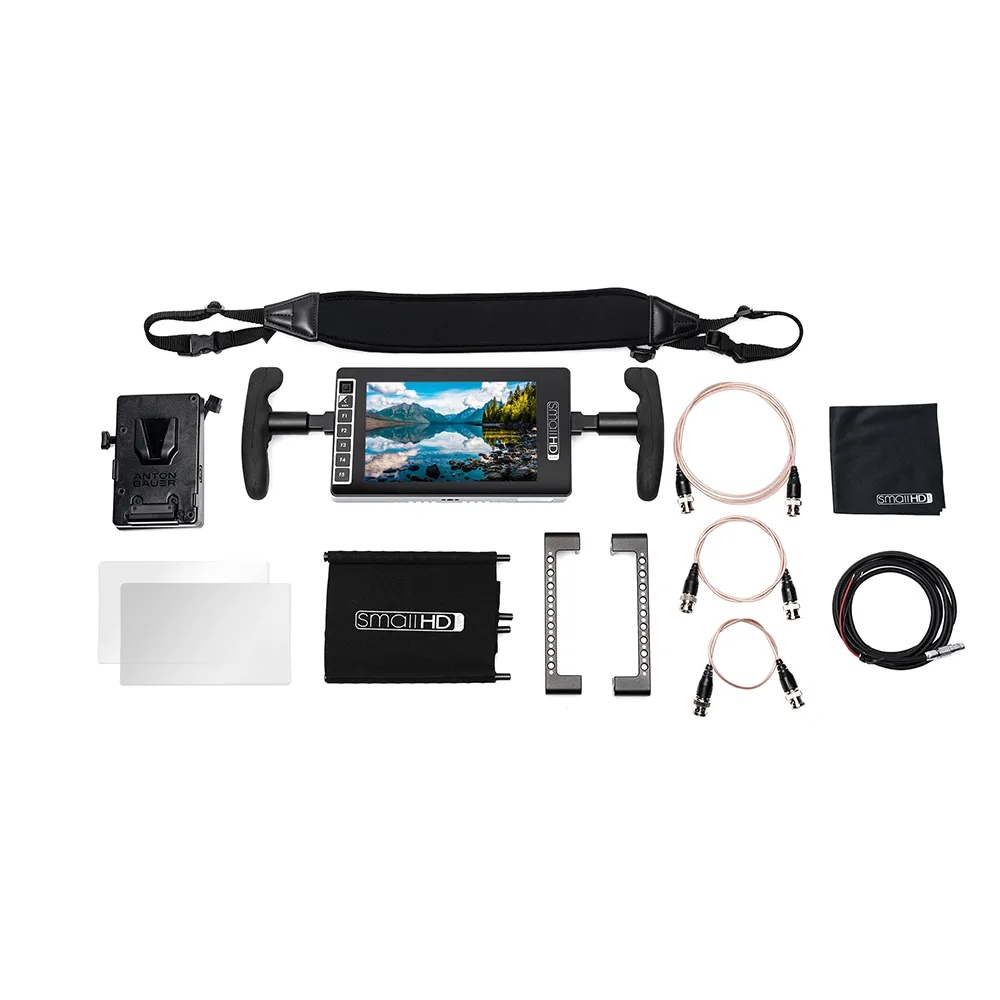

  • SmallHD 703 UltraBright Monitor
  • Neck Strap and Lightweight Monitor handles
  • V-Mount Battery Bracket
  • Sunhood Cage Combo for 703
  • Clear Screen Protector for 703
  • Ultra Matte Screen Protector for 703
  • Lemo to Bare Wire Cable
  • 30cm Thin SDI Cable
  • 61cm Thin SDI Cable
  • 120cm Thin SDI Cable
  • SmallHD Cleaning Cloth



Specifications:

Display

Panel Type LTPS LCD
Size Diagonal 7.02
Resolution 1920 x 1080
Pixel Density (PPI) 323 ppi
Aspect Ratio 16:9
Active Area 7.02
Brightness 2500
Contrast 1200:1 as per data sheet – (requires population sample)
Colour Gamut 70% NTSC
Colour Depth 10-bit
Viewing Angle 178 Degrees (CR<10)
Backlight Type White LED
Adjustable Backlight Yes
Temperature Adaptive Colour

Viewfinder (EVF)

Diopter Range
Effective Viewing Distance
Variable Field of View range
Height
Width
Depth
Weight
Construction Material

Input Signal Types/Formats

3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Component
Composite
Audio HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels

Output Signal Types/Formats

3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Component
Composite
Audio HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type

SDI 1x 3g Input, 1x 3g Output
HDMI 1x Input, 1x Output
Component Not Supported
Composite Not Supported
Audio 1x ⅛” Headphone Jack
Power In 2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input)
Power Out
USB 1x Micro USB

Controls

Primary Control Interface Joystick Navigation, Dedicated Back/Power Button. 5 Additional User Assignable Function Buttons
Record/Capture
User Defined Functions
RF Wireless Remote / External Control
USB Remote / External Control

Data I/O

Storage SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.
USB USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving.
Wireless
Wifi

Power

Connector Type 2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input)
Voltage With DV Battery Plate: 6.0 – 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 – 34V 14.4V Nominal With Lemo Input: 12 – 34V Max
Power Consumption TBD
Battery Plate Included
Recommended Power Supply Included
Overload Protection Yes
Smart Battery Compliant
Battery Types
Battery Chemistry
Output Voltage (VDC) Mirrors Input Voltage
Battery Capacity (mAh)
Battery Charging Time (hours)

Environmental

Compliance FCC, IC, CE, RoHS
Operating Temperature -17c – 37c degrees
Storage Temperature -20c – 48.8c degrees
Screen Protection AR Coated Gorilla Glass Optical Bonding on Panel
Height 4.88” (12.40cm)
Width 8.38” (21.29cm)
Depth/Length 1.13” (2.87cm)
Weight (Item Only without battery)
Weight (Packaged) 1253.05g
Mount Points 1 ¼”-20 Thread on Top of Monitor, 1x ¼”-20 Thread on Bottom of Monitor
Note:

Software

Pixel Zoom (type) 2x & 4x Zoom with smooth pan via joystick
Frame Guides Yes: Preset Aspect Ratios & Customisable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate(Manual/Automatic) Yes – Automatic or Manual Control
Image Flip (Manual/Automatic) Yes – Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colours) Yes – User Adjustable Colour Style and Intensity
Peaking Yes – User Adjustable Intensity
False Colour Yes – Rainbow & Arri Style
Zebra Yes – Dual – User Configurable
Waveform Yes – Luma & RGB Style, Fully User Customisable w/ Region of Interest Highlighting
Vectorscope Yes
PIP
RGB Parade Yes – Fully User Customisable
Histogram Yes – Luma & RGB Style
Horizon Indicator
Image Capture Yes – With Dedicated Button
Dailies Recording/Playback
Master Recording
Wifi Streaming
Custom LUTS Yes – Loadable as Looks on Pages or as Systemwide Colour Calibration via the settings menu
LUT Creation
LUT Downstream Yes – Available on SDI 1 or HDMI Out. Applied on Output Preview Page.
LUT Import via SD Card or USB Storage Device
Onion Skinning
Image Overlay Yes with Opacity Slider and Blink Setting
Blue Only
Firmware Compatible with 1300-1700-2400-3200 Firmware VX.x and later. Firmware Version to support 503UB & 703UB Does not yet exist. Version number not yet known.
Audio Meters Yes – HDMI & SDI up to 8 channel



SKU: SHD-33.1.MON-703U-VM-DK Category: Brand:
