SmallHD Cine 5 1080p SDI/HDMI 2000nit LCD Monitor

SmallHD

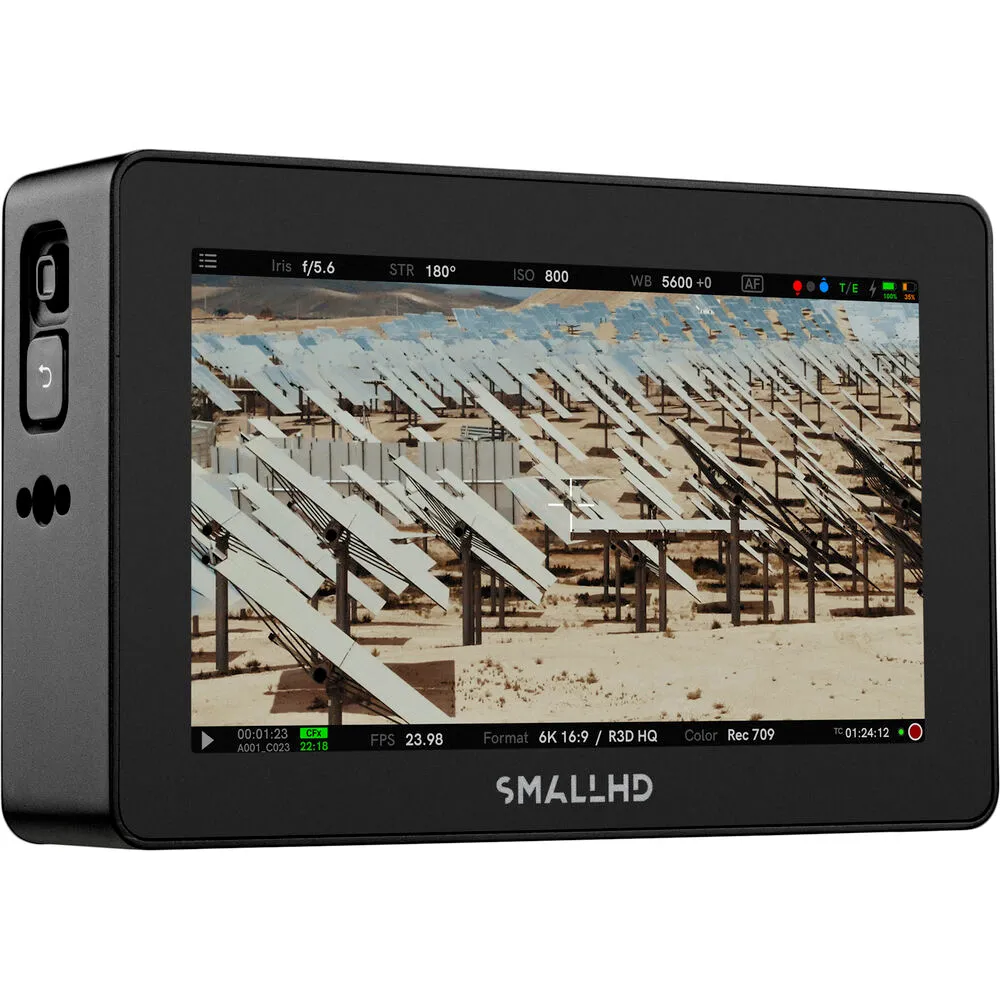

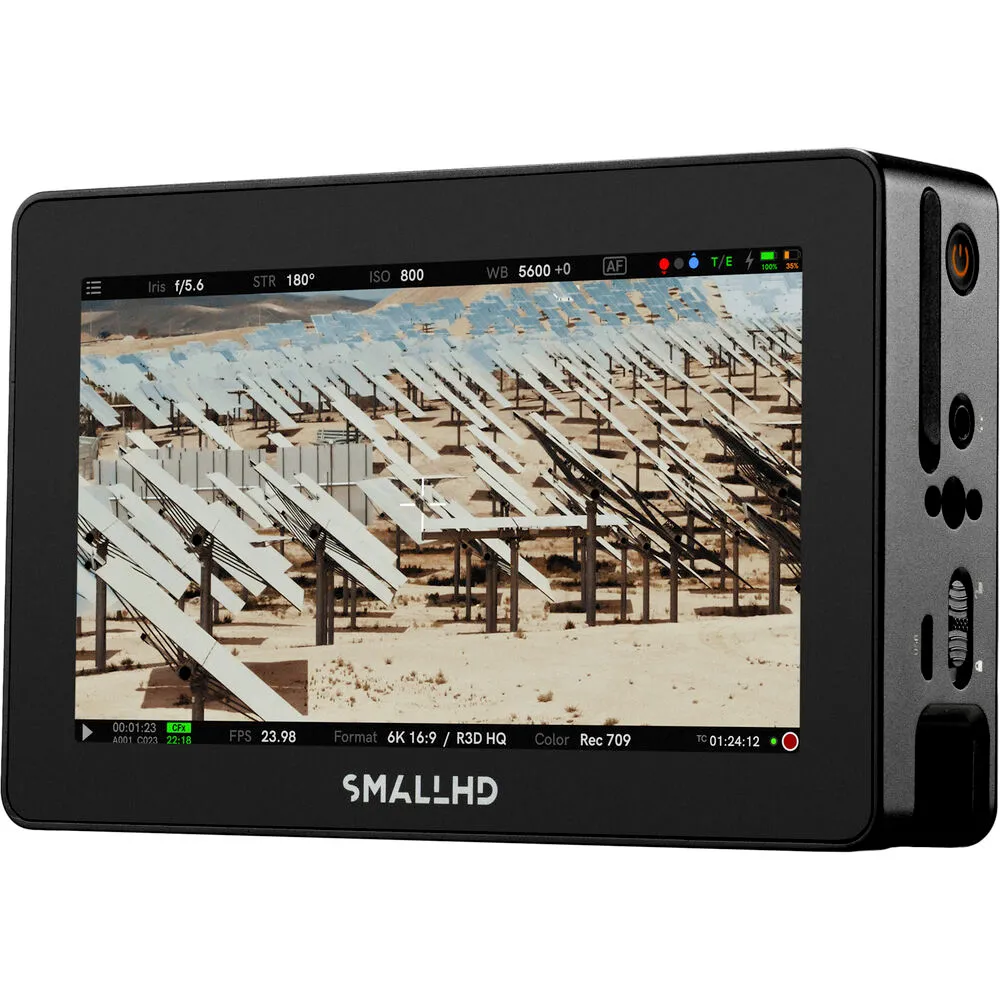

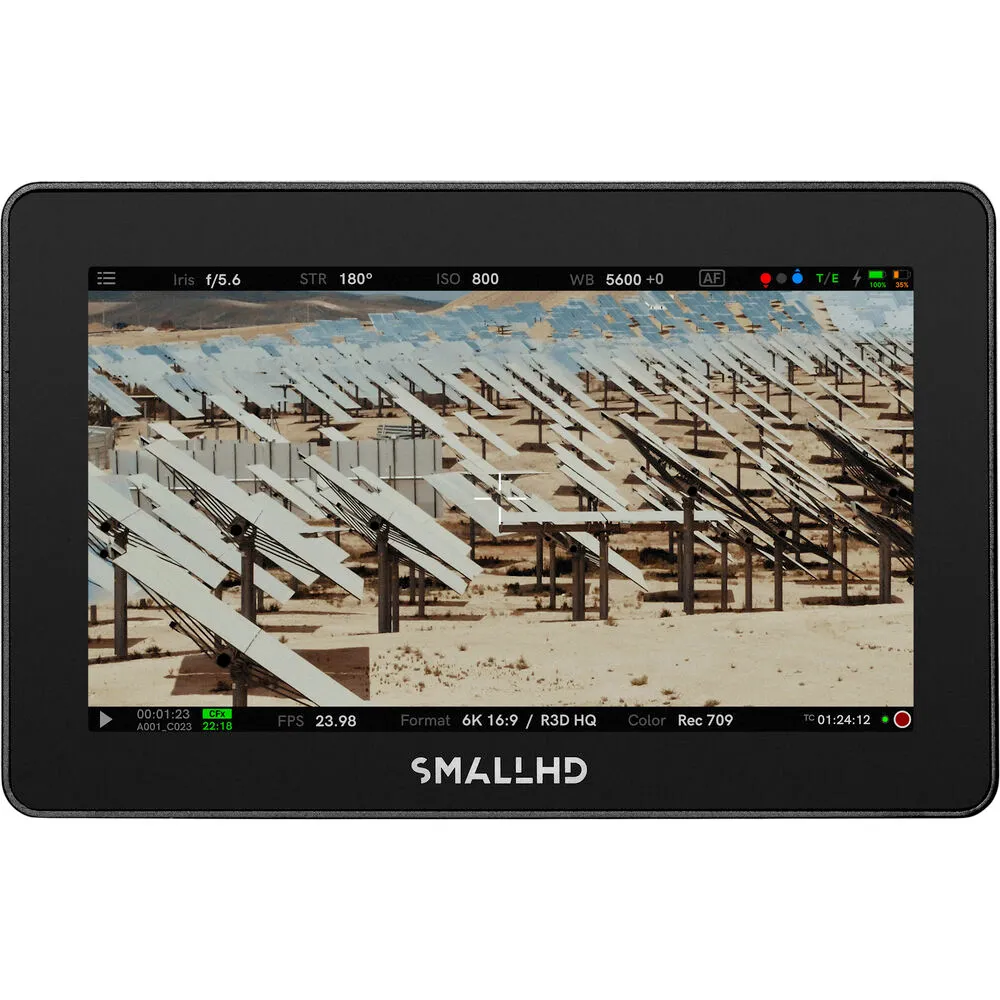

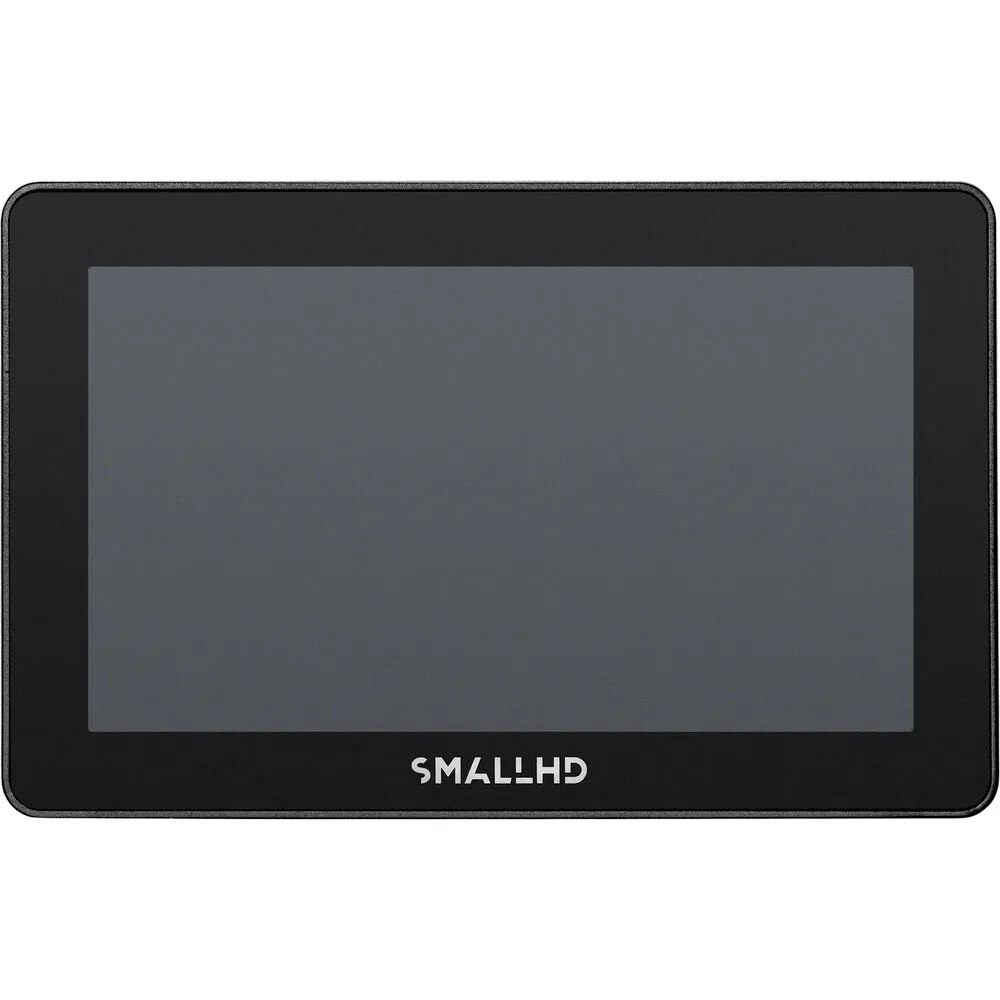

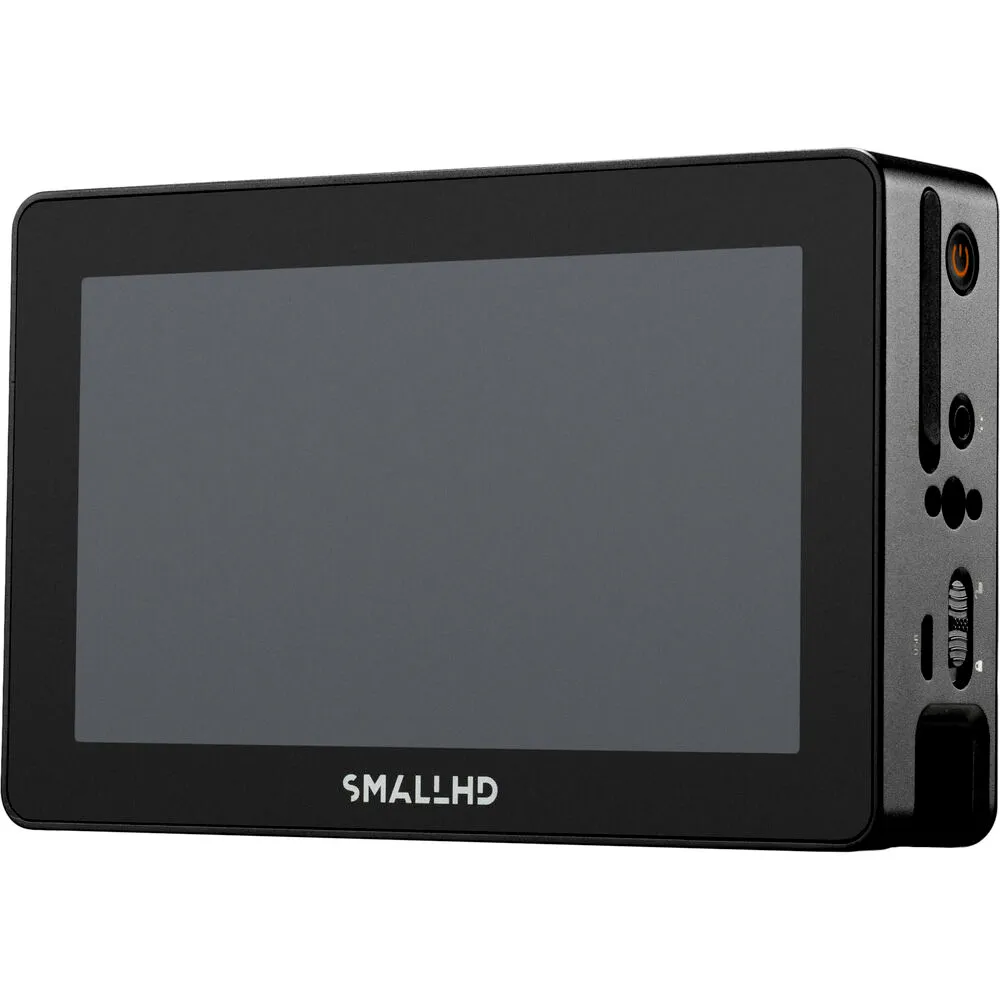

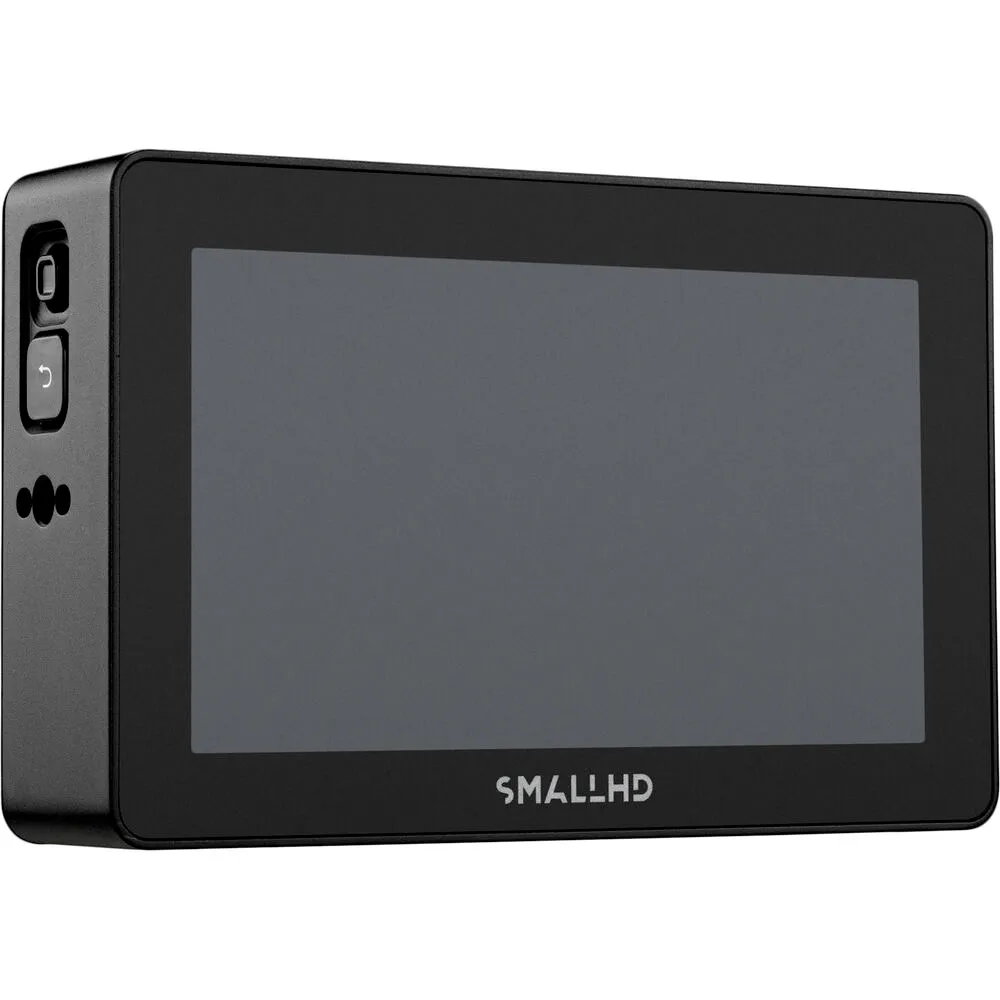

Monitor your camera with the CINE 5 Touchscreen On-Camera Monitor from SmallHD. Featuring a sharp 5″ display suitable for indoor or outdoor use, the CINE 5 monitor supports various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.

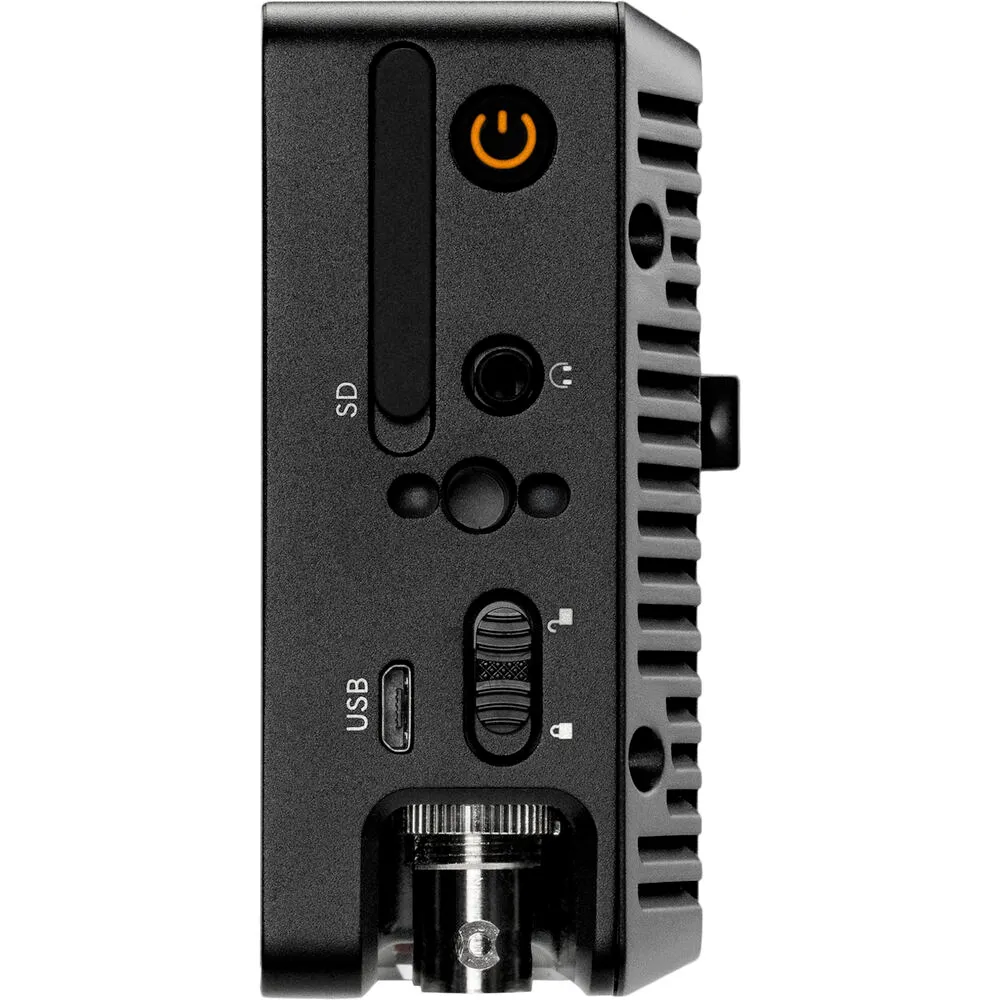

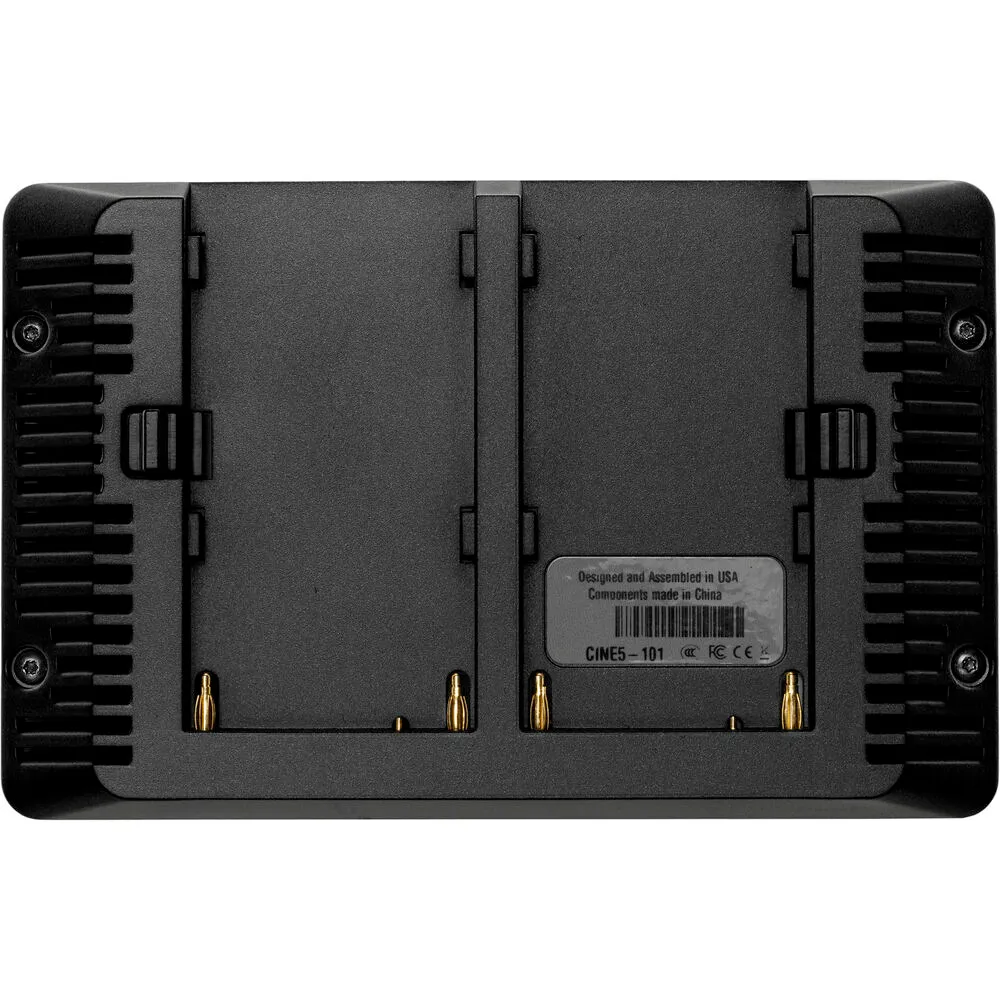

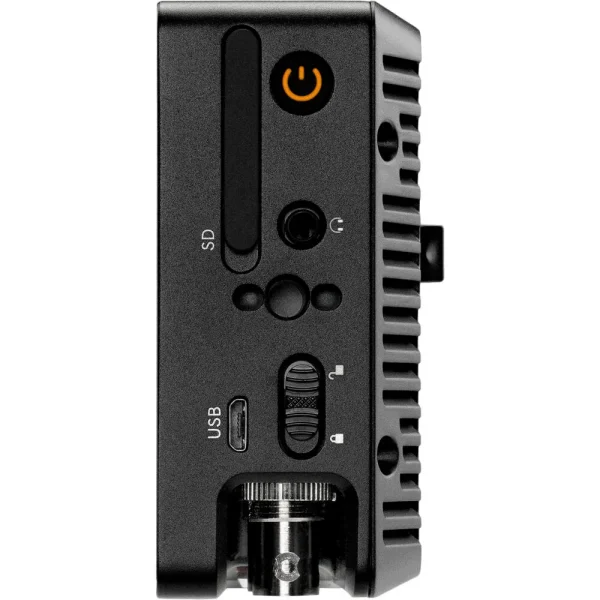

The CINE 5 features a bright 2000 cd/m², 1920 x 1080 LCD touchscreen with 3D LUT compatibility. Using the intuitive PageOS 5, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap, and the CINE 5 also adds a joystick on the side and a button on the back for ease of use. There is a 5-pin USB output to utilize optional RED camera control. The monitor can be powered using its 2-pin power input.

$2,699.00

Key Features

  • Slim, lightweight, daylight-viewable, 5″ touchscreen on-camera monitor with 2000 cd/m² brightness.
  • HDMI-to-SDI and SDI-to-HDMI cross conversion is supported.
  • Supports 10-bit 4:2:2 DCI-P3 color
  • The included PageOS 5 Toolset with EL Zone Exposure Assist, best-in-class waveform, false color, look-Around Camera Control (sold separately), Advanced Teradek RT Overlays, and more. The PageOS 5 UI offers quick and repeatable setups and full control over all parameters and display tools.
  • Power via 2-pin power input.
  • Four 1/4″-20 mounting points on top, left, right, and back.
  • Optional RED camera control.
RED Control Features
  • Run/stop
  • Color controls
  • Exposure controls
  • Status
  • Color temperature
  • Video format
  • Playback
  • Shutter
  • Menu control
Software Features
  • Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch-zoom
  • DSLR scale: Canon 5D Mk II and Canon 7D
  • Custom scale: Underscan only
  • Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
  • Image flip: Auto and manual
  • Image rotation: Auto and manual
  • Color focus assist: Adjustable style and intensity
  • Peaking: Adjustable intensity
  • False color: Spectrum, ARRI-style, and customizable
  • Dual zebra: Customizable
  • Waveform: Luma and RGB, customizable with region of interest highlighting
  • Vectorscope: Yes
  • RGB parade: Customizable
  • Histogram: Luma and RGB
  • Image capture: With dedicated button and image gallery
  • Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
  • Image overlay: Opacity slider and blink setting
  • Audio meters: HDMI and SDI up to eight channels



SmallHD CINE 5 Specs

Display
Panel Type LCD
Display Size 5.0″ / 12.7 cm
Resolution 1920 x 1080
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 2000 cd/m2
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Pixels Per Inch (ppi) 440 ppi
Color Gamut 100% DCI-P3
Image Controls Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra
I/O
Video 1 x HDMI Type A (HDMI 2.0) Input
1 x HDMI Type A (HDMI 2.0) Loop Output
1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Loop Output
Embedded Audio HDMI: 8-Channel
SDI: 8-Channel
Audio 1 x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x LEMO 2-Pin (34 VDC) Input
Other I/O 1 x USB 2.0 (LEMO 5-Pin) Output
Media/Memory Card Slot None
Format Support
Video Format HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576p: 200/100/50
480p: 240/239.76/120/119.88/100/60/59.94
480i: 240/239.76/120/119.88/100/60/59.94
576i: 200/100/50
SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i: 50
480i: 59.94
Video Signal Conversion SDI to HDMI
UHD 4K: 30/29.97/25/24/23.98
1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 240/239.76
HDMI to SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100
720p: 60/59.94/50/30/29.97/25/24/23.98
480i: 59.94
576i: 50
Mounting
Mounting 4 x 1/4″-20 Female
General
Material of Construction Aluminum



In the Box

  • SmallHD CINE 5 Touchscreen On-Camera Monitor
  • Limited 1-Year Warranty



SKU: SHD-33.1.16-0526 Category: Brand:
