TecArt ArtNode 2 – 2 Universe

The TecArt Main/Backup Switcher is primarily used for main and backup consoles. The unit automatically detects incoming DMX512, and automatically switches to the backup DMX streams as soon as the main inputs are disconnected or lost.

The TecArt Main/Backup Switcher can also be used to connect an external console to a live DMX network and will automatically switch over to take control.

The unit is available with up to 4 main DMX streams and 4 backup DMX streams. The inputs are connected via front panel XLR connectors and the output connectors are on the rear of the unit. Each input/output has a separate power supply and is electrically isolated to ensure the highest possible level of protection.

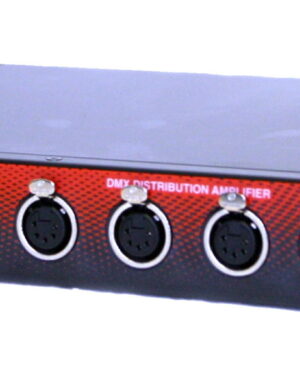

The TecArt range of data splitters are available as desktop units.

Each output has a separate driver and opto-isolator to ensure the highest possible level of protection.

The unit is available as a standard DMX splitter or with the option of RDM.

RDM compliant device “ANSI/ESTA E1.20 Entertainment Technology – Remote Device Management over USITT DMX512”.

RDM or Remote Device Management is a protocol enhancement to DMX512 that allows Bi-directional communications between light fixtures and lighting consoles or RDM specific software over a standard DMX line.

DMXS4DT can be supplied with an external 12 – 48VDC power supply.

FEATURES
• DMX-512 In/Out/Thru.
• External Power Supply 12 – 48VDC.
• 2 Main indication LEDs.

SPECIFICATIONS
• Input voltage: 12 – 48VDC.
• Power supply: External.
• Total power: 6W @ 24VDC.
• Dimension: 105mm (L) 85mm (W) 60mm (H).
• Mounting method: Desktop.
• DMX signal input: XLR.
• DMX signal output: XLR.
• Outputs: 4 Opto isolated.
• Temperature: 0 – 40 degree Celsius.

The TecArt RDM Toolbox is a diagnostic tool for professional lighting technicians.

FEATURES
• DMX Transmit and Receive (512 channels).
• DMX Testing.
• Remote DMX Addressing (with compatible luminaires).
• RDM Discovery.
• RDM Query and Device Configuration.
• RDM Monitoring.
• Rugged Pelican™ Water and Dust-resistant Case.
• Battery-powered.

SPECIFICATIONS
• Supply: 240VAC.
• Internal Battery: Rechargeable.
• DMX In/Out: 5-pin XLR.
