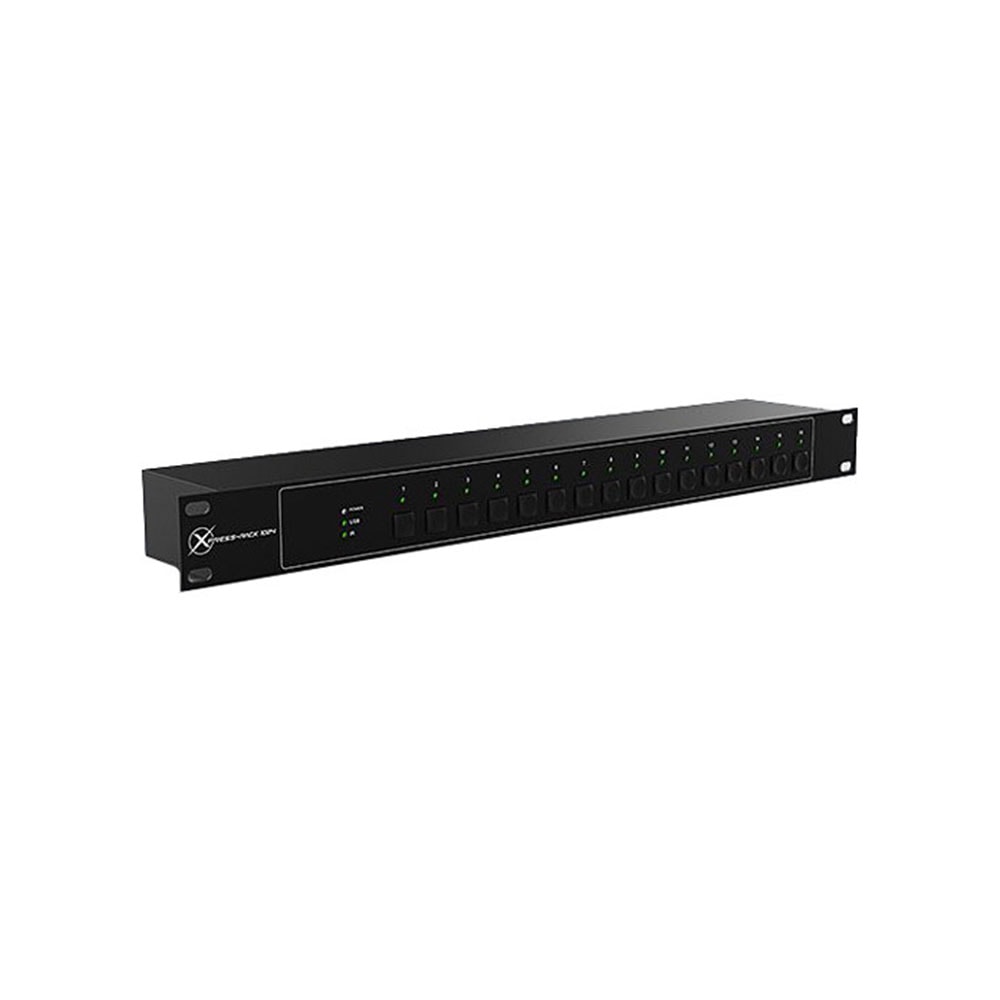

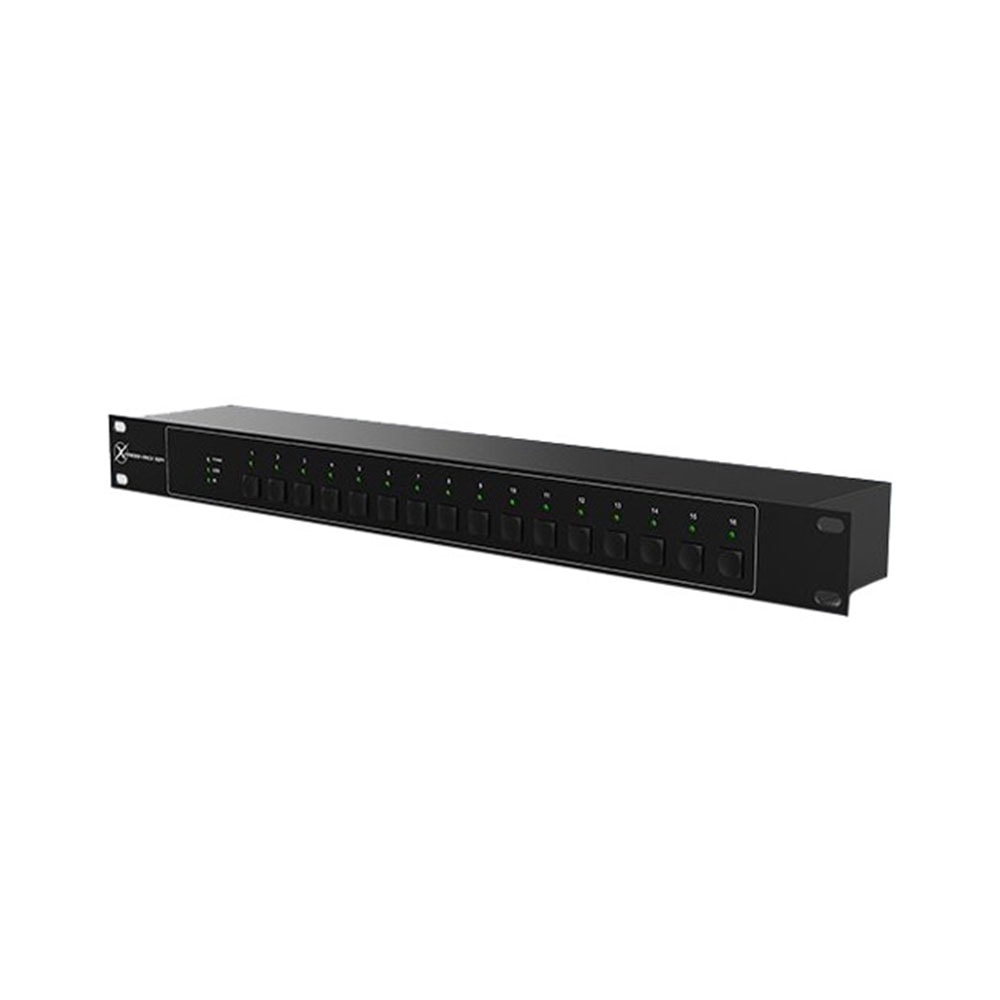

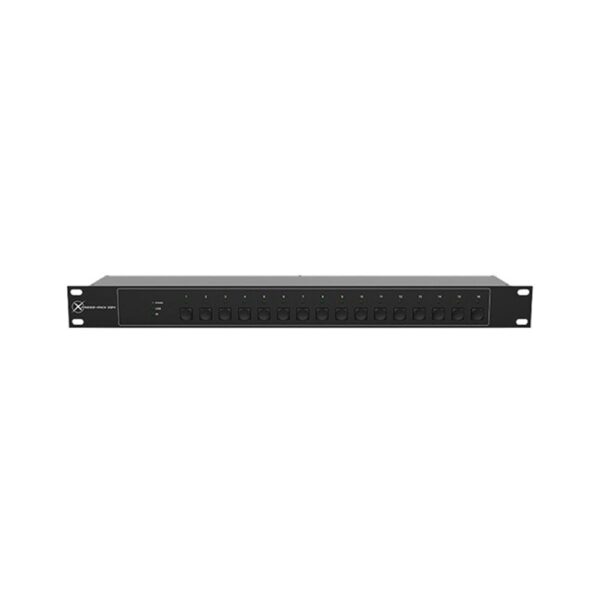

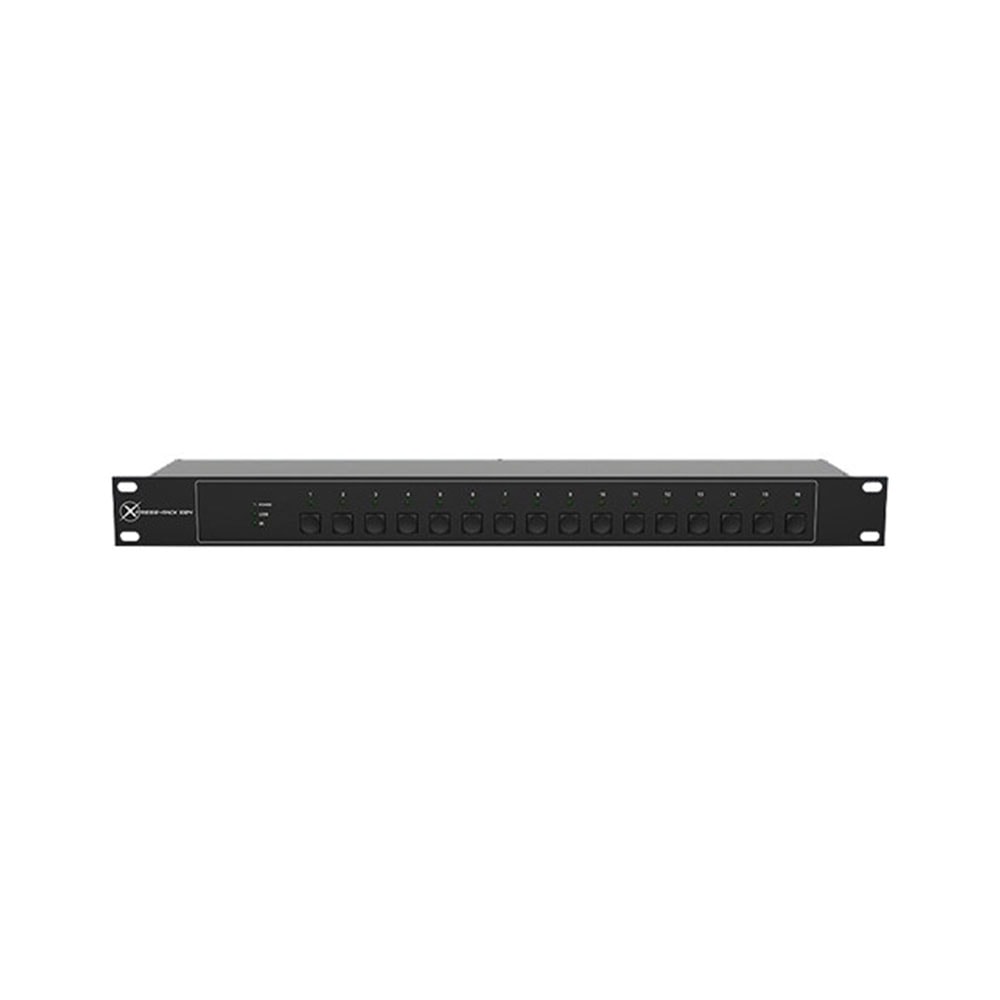

Chauvet DJ XPRESS-RACK1024 Rackmount DMX Interface
The Chauvet DJ XPRESS-RACK1024 is a rackmount DMX interface for ShowXpress software. Capable of controlling 2 DMX universes while also unlocking an additional ArtNet universe; giving you 3 universes total. As a result, you can easily store and playback up to 16 shows without a computer; using either the onboard buttons or by the included remote.
$1,269.00
Features:
Rackmount DMX interface for ShowXpress™ software
Controls 2 DMX universes and unlocks 1 additional ArtNet universe (3 universes total)
Easily store and playback 16 shows without a computer using on onboard buttons or included remote
Trigger up to 8 scenes remotely using the Phoenix contacts
Built-in clock and calendar trigger scenes automatically
Hot-swappable and automatically re-connects within seconds
Compatible with Windows® and Mac OS X systems
Connect multiple interfaces to control additional universes
Both outputs are electrically and optically isolated
Specifications:
DMX Channels: 1024 + 512 via ArtNet

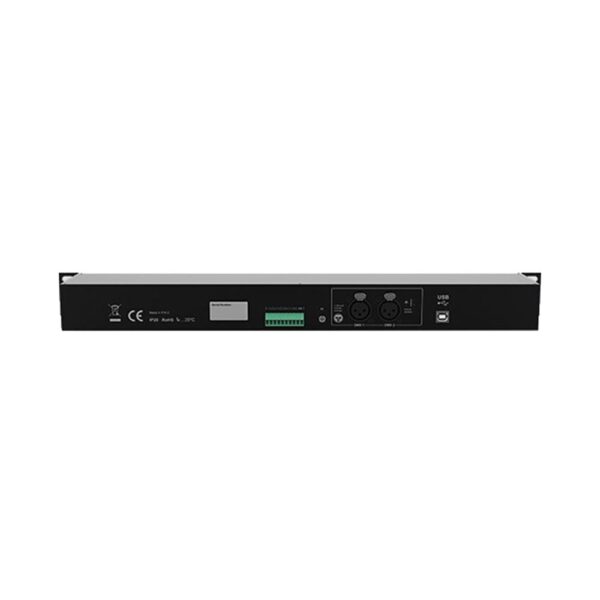

DMX Connectors: 3-pin XLR
Rackmount: 1U
Input Voltage: 5 V USB
Weight: 2.8 lbs (1.3 kg)
Dimensions: 19 x 3 x 1.75 in (483 x 76 x 44 mm)
Approvals: CE
DMX Refresh Rate: 40 Hz
