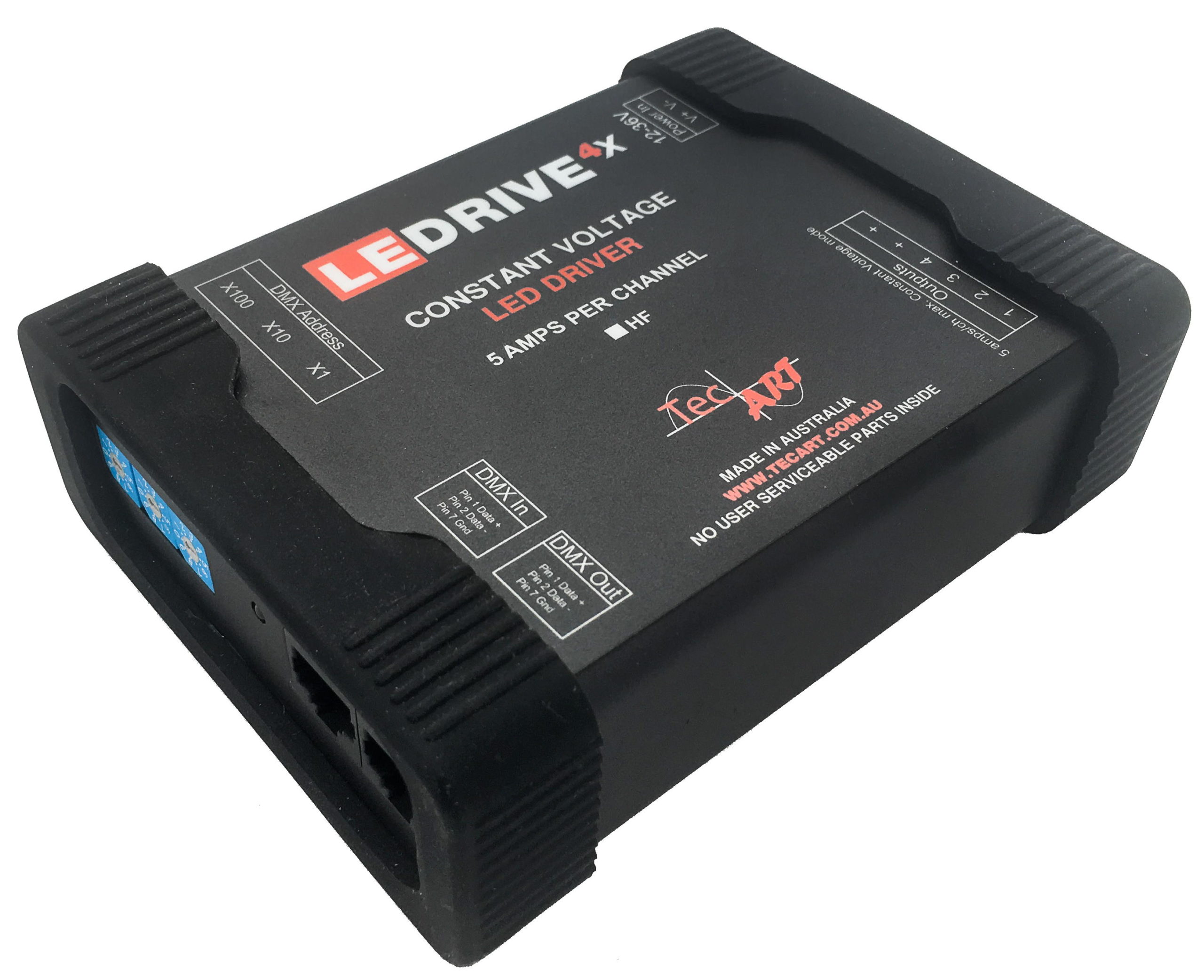

TecArt LEDrive CV 4X Desktop DMX/RDM
LEDrive CV 4X Desktop is a constant voltage LED dimmer, utilising DMX/RDM control. It features advanced 16 bit dimming technology, allowing different dimming curves to be set. High PWM frequency (10 KHz) makes it flicker free and film and TV compatible. Standalone speed-adjustable fade effects can be triggered by the onboard switches or RDM. The unit has 4 channels of output, each with 5A fuse protection.
RDM compliant device “ANSI/ESTA E1.20 Entertainment Technology – Remote Device Management over USITT DMX512”.
RDM or Remote Device Management is a protocol enhancement to DMX512 that allows bi-directional communications between light fixtures and lighting consoles or RDM specific software over a standard DMX line.
LEDrive CV 4X Desktop can be supplied with an external 12 – 36VDC power supply.
FEATURES
• DMX-512 input and output.
• External power supply 12 – 36VDC.
• Terminal strip output.
• 2 main indication LEDs.
• Operating modes:
1. Pre-programmed lighting scenes: Choose from several pre-programmed scenes via RDM.
2. Control of the channels via DMX.
$264.00
