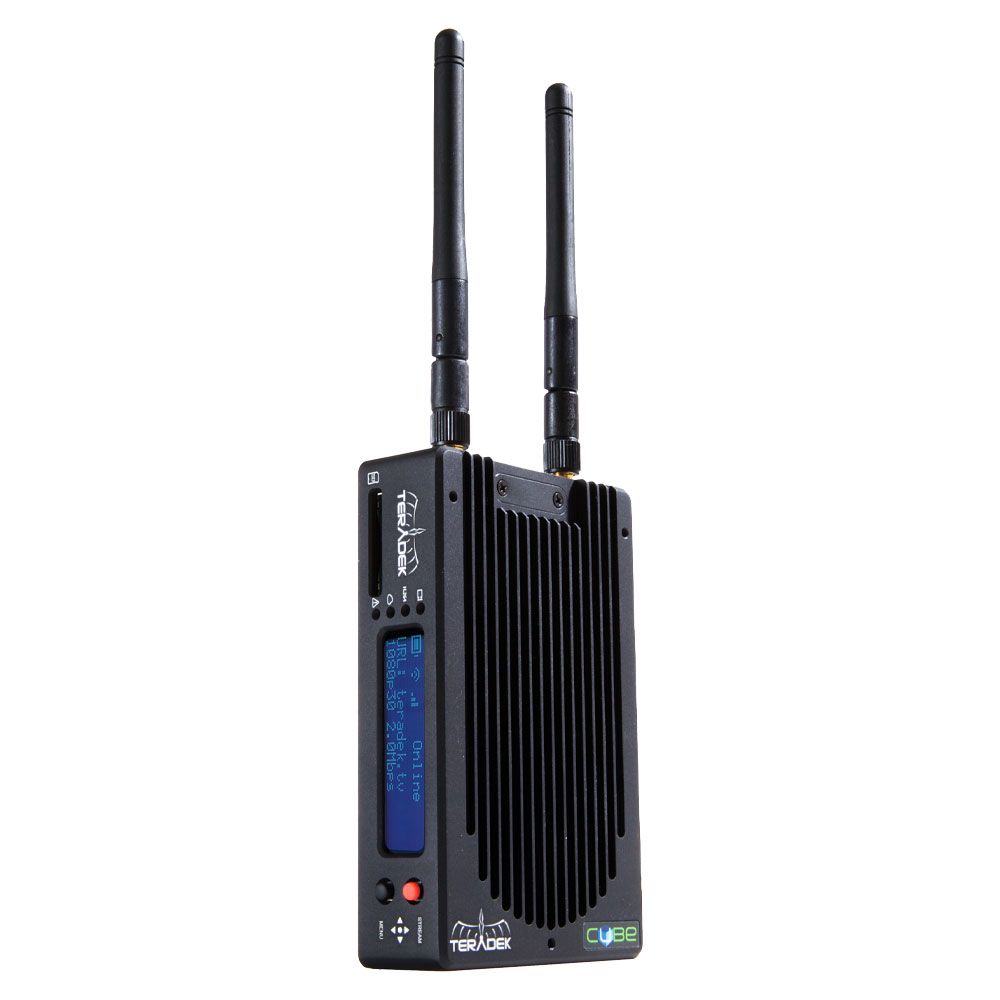

Teradek Cube 655 – H.264(AVC) Encoder SDI/HDMI GbE WiFi


Real-Time H.264 (AVC) Encoder. Dual-Band 2.4/5.8 GHz WiFi, Ethernet and USB. HDMI and SDI Video Inputs. Camera Top Form Factor. Built-In Colour Grading. On-Board SD Card Recording. 2-Pin Connector Type Power Input.


Cube is manufactured in the USA and features 3G-SDI and HDMI inputs along with a new, high-powered 802.11AC WiFi adapter. Cube’s rugged aluminum chassis and professional locking 2-Pin Connector connector ensure it’s ready for constant use in any environment.Higher BitratesThe Cube 600 series encodes video at bitrates up to 15 Mbps for pristine quality in any application. When bandwidth is limited, adaptive bitrate allows Cube to automatically adjust and stream at the highest quality achievable.Improved Wireless PerformanceBuilt-in 802.11ac dual band (2.4/5GHz) WiFi offers higher data throughput and stronger wireless connectivity at longer distances.iPad Monitoring for AllCube 600 supports monitoring on up to 6 devices iOS devices simultaneously so clients, crew, and director can all see the action.Built-in Color GradingSupport for 33 point 3D LUTs and Pomfort LiveGrade integration allows your creative team to monitor graded footage on set or off. Looks can be applied to the stream itself or controlled independently within the TeraView app.All New User InterfaceCube’s intuitive new user interface makes it easier than ever to configure your device. Pages load more quickly, configuration changes apply instantly, and all encoder statuses are updated dynamically.Onboard RecordingCube’s built-in SD card slot gives you the option to save high quality backup recordings for post-event editing.**Recorded video file bitrate and resolution match encoded stream quality.Test Pattern GeneratorA configurable test pattern generator allows you to test your stream without connecting a video source and prevents interruptions if video sync is lost.What’s In The Box:1 x 2-pin Connector to 18W AC Power Adapter1 x Ethernet Cable1 x SDI Cable (BNC to BNC)1 x HDMI Cable (Full Type A to Full Type A)1 x 1-Year Warranty2 x Wireless Antennas (2dBi 2.4/5.8 Ghz)1 x Hot Shoe AdapterSpecifications:VideoVideo Inputs1 x SD/HD-SDI (75 Ohm BNC)1 x HDMI Type-A receptacleBondingBonding: TeraLinkSupported Resolutions1080p 23.98/24/25/29.97/30/50/59.94/60*1080i 50/59.94/601080PsF 23/24/25/29/30720p 50/59.94/60576i480i480p (for HDMI input only)576p (for HDMI input only)*Ingests 1080p50/59/60Video ProcessingVideo Compression: H.264, Baseline, Main and High ProfileSupported Video Bitrate:250 Kbps to 15 Mbps**15 Mbps (wired), 10 Mbps (WiFi)Test Pattern Generator Support: Supports Custom Test PatternVideo Format Conversion Support: Built in Video Scaler and DeinterlacerColor CorrectionCDL/1024 1D LUT (supports 10-bit color)33x33x33 3D LUT (supports 10-bit color)Protocol SupportNetwork Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMPSupported Video Transport Protocols:SRTRTMPRTP, RTSP, RTSP over HTTPMPEG-TS (MPEG-TS is an optional paid license)Remote Control: Teradek CoreSoftware Or Platform Integration: Ustream, YouTube Live, Facebook & new LivestreamAudio ProcessingAudio Compression: AAC-LC, MPEG Layer 2Inputs Audio Input:Embedded Audio InputAnalog Line or Mic in, adjustable gainOutputsAudio Output: Headphone outputPhysicalDimensions: 120.7 x 76.2 x 27.9mm (4.75″W x 3″D x 1.1″H)Weight: 328.9gConstruction: Milled AluminiumMount-ability: Can be mounted horizontally or vertically with 1/4″ 20 mounting holesInterfacesHttp: WebUI for Configuration and ControlConfiguration Interfaces:OLED Display with joystick Navigation buttonsFeature-rich WebUI for configuration and controlSwitches: On/Off and Reset SwitchRecording Storage: SD Card: Full SizeMobile App: Vuer, Live:AirUsb Interface Functionality: 1x Powered USB 2.0 host portNetworkEthernet: 10/100/1000 BASE-T GigabitWireless: WiFi: 2.4/5GHz 802.11 ac/a/b/g/n MiMoUsb: USB 3G/4G Modem support** ** refer to this article on which modems are known to be supported: https://support.teradek.com/hc/en-us/articles/217447037-What-3G-4G-USB-Modems-are-supported-Rf Channel Selection: Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only)Configurable to specific channelsEncryption: 802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AESPowerPower Input: 2 Pin Connector Power inputBattery: No Battery IncludedNominal Power Consumption: 8W, 7W (no WiFi)Auxiliary Power Input: 6-28V DC

SKU: 53.10-0655 Category: Brand:
