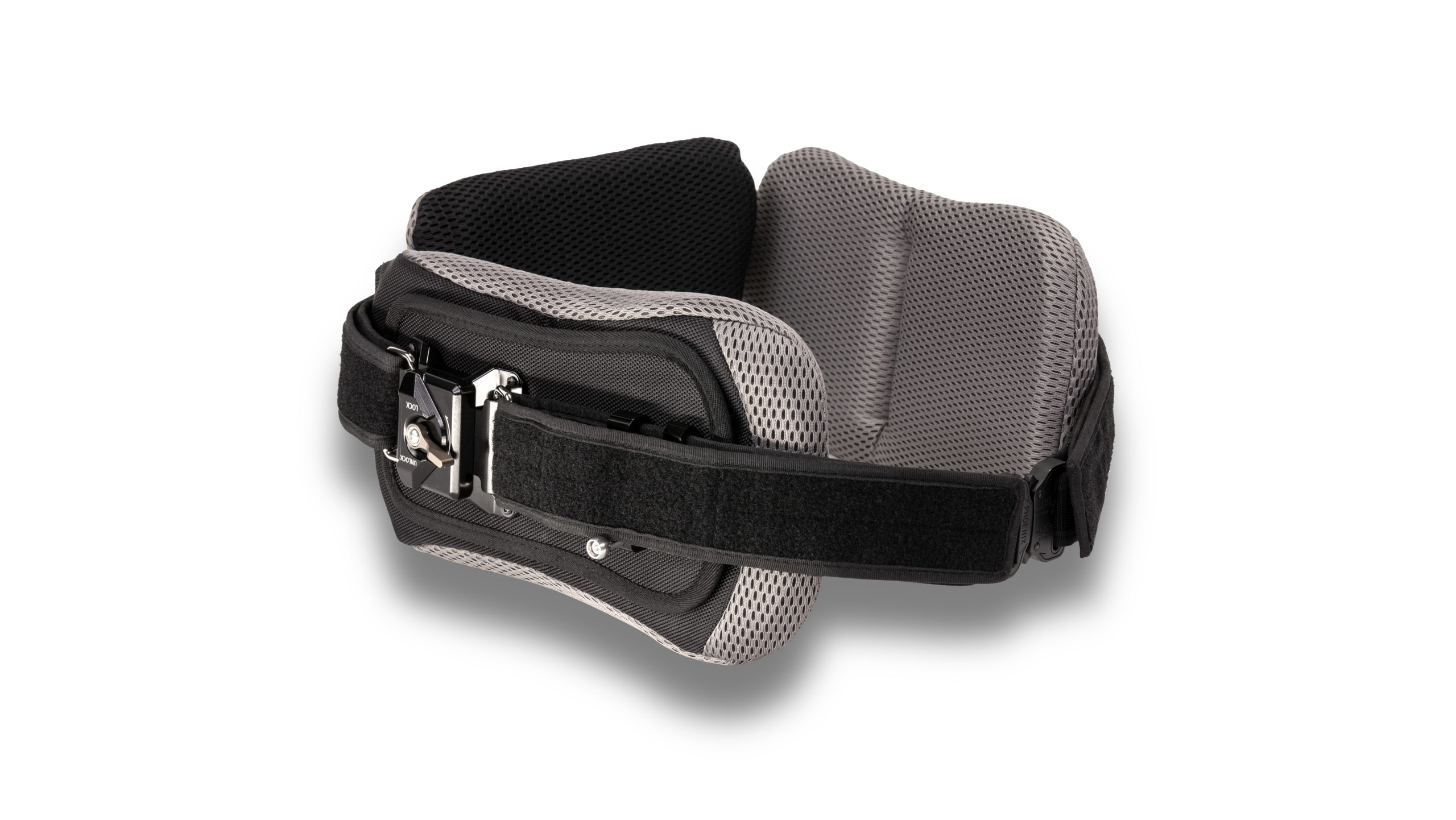

Tilta Armor man 3.0 Waist Support

The Armorman 3.0 Support Vest is the main section of the support system. The mechanical arms attach to either the back of the vest for the normal configuration or over the top of the support for the overhead configuration. Release cables hang over the front of the vest to allow the operator to release the tension of the arms when they are in the locked position. Padding surrounds the vest for maximum comfort and adjustable straps allow for the vest to fit to any body type.

5′ long polyester seat belt webbing Cinesaddle Fasty Straps are designed to work with the Cinesaddle Stirrups or Anchors to secure your Cinesaddle to a moving or stationary platform. The Fasty Straps feature a buckle that allows you to secure the strap from loosening once you have cinched it tight.

You loop the Fasty strap around a Stirrup (not included) and put it under tension. Or when working with a Cinesaddle Anchor (not included), you can thread the end of the Anchor through the Fasty Strap’s buckle to hold it fast.

If you have a ring-based gimbal, the Overhead Configuration Gimbal Ring Adapter Clamps allow for an easy quick release solution to attach and detach your gimbal to the Armor Man 3.0’s mechanical arms when in the overhead operating mode. The clamps attach to the left and right sides of the top of the gimbal ring and then after the Overhead Configuration Cable Pulleys are attached to each of the Armor Man’s arms, the operator can simply use the carabiners of the extendable bungee cables to attach to the gimbal to then start operating. When you want to detach the gimbal, simply release the carabiners off of the clamps.
