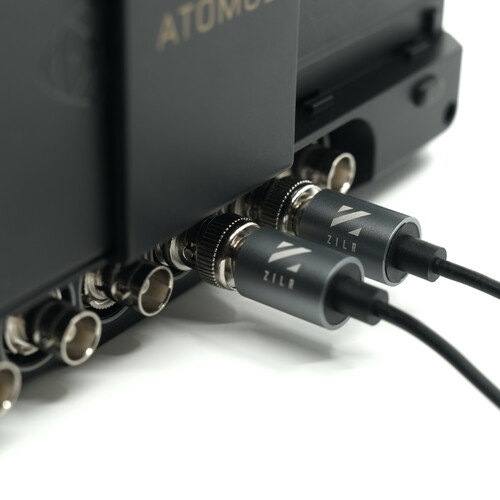

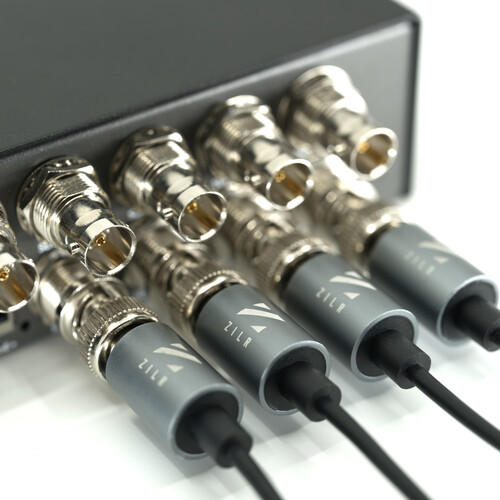

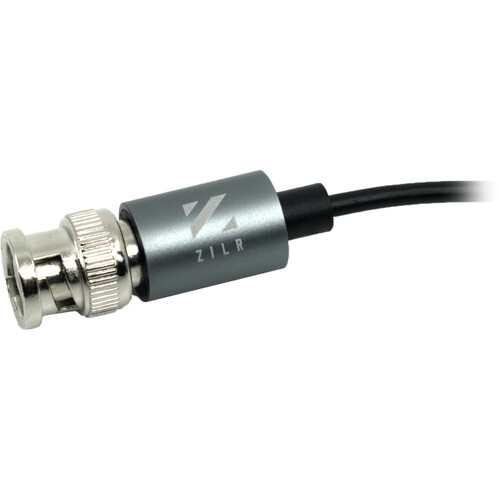

ZILR SDI 12G BNC Cable 45cm


Transfer up to 4K video resolutions with this 17.7″ 12G-SDI BNC Cable from ZILR via 12G-SDI, 6G-SDI, HD-SDI, or 3G-SDI signal. Each end is equipped with a male BNC gold center-pin connector to create a 28 AWG coaxial cable for clean signal transmission. The cable is designed with copper braided shielding and supports 12 Gb/s bit rates. An included pouch is perfect for bringing the cable on the go in your preexisting gear bag.



  • 4K @ 60Hz for resolutions up to 4096×2160
  • Full HD 1080p
  • BNC to BNC
  • 45cm / 17.7” cable length
  • Up to 12Gbit/s bitrates
  • Supports 12G/6G/3G/HD/SD
  • Cable thickness of 3.0+/-0.15mm
  • Shielding: Copper Braid >85%
  • Wire Gauge: 28AWG
  • Coaxial Type: RG-6
  • Insulation Type: Polyethylene 80p
  • Connectors: Gold Pin Connection 15u”
  • VSWR (Voltage Standing Wave Ratio): 1.5D-2V
  • Frequency: DC to 12 GHz
  • Maximum Impedance: >75 Ohms
SKU: ZLR-ZRSDI01 Category: Brand:
