D-Tap cables and connectors
Tilta Nucleus-M Run-Stop Cables for RED Komodo
Control R/S from Nucleus-M Hand Unit Length 27″ / 69 cm
Connector 1 7-Pin (for Nucleus-M)
Connector 2 Male Connector Specific to the RED KOMODO R/S Port
Material Copper, Rubber, Aluminum
Weight 1.44 oz / 41 gSKU: TIL-RS-01-RD4 -
Lens control systems
Tilta Nucleus-M Wireless Lens Control System Partial Kit I AU plug without batteries
Lens control systemsTilta Nucleus-M Wireless Lens Control System Partial Kit I AU plug without batteries
It allows you to have full control of focus, iris, and zoom on either the FIZ hand unit or between the two wireless hand grips. You can even split control of the channels between the hand unit and wireless hand grips as you see fit with the push of a button.
The wireless range of both the hand unit and hand grips is 1,000 feet.
The hand grips can be attached to the included rosette mounts for handheld operation and can also be attached to top bar-based gimbals with the included Nucleus-M Hand Grip to Gimbal Adapters or to ring-based gimbals with the optional Nucleus-M Hand Grip Universal Gimbal Ring Adapters.
Each motor has its own built-in motor drive that communicates directly with the hand unit and hand grips. This negates the need to mount a separate MDR to your rig, allowing for a more compact camera setup and a quicker setup time.
Simply set the motors and hand unit/hand grips to the same channel and you will have full control.
The motors allow for automatic calibration of the lens as well as manual calibration if you are using lenses that don’t have hard end stops at close focus and infinity.
The motors are designed to clamp onto 19mm or 15mm rods (with the included rod bushings). This clamp-on design allows you to easily attach and detach the motors without needing to remove any other accessory from your setup.
Every motor has a 0.8 mod, 35 tooth, 32 pitch gear attached, which is the standard gear size for cinema lenses. The torque of the Nucleus-M Motor at 14.8V is 2.5N·m
To power the motors, only one power port on your camera rig needs to be used. Simply plug the P-tap power cable into one of the motors and then daisy chain power to the rest of the motors with the short 7-pin to 7-pin cables.
The motors can be powered through a power source that has a voltage output ranging from 7.2V-24V.
The hand unit and hand grips are each powered with two 18650 rechargeable batteries (batteries NOT included). When fully charged, the batteries in the hand grips last up to 2 days, while in the hand unit they last up to 10 hours.
Remote start/stop is possible by plugging a compatible Nucleus-M R/S cable into the open 7-pin port of a motor. This then gives you R/S capabilities through the hand unit and/or the handles.
** PLEASE NOTE: The R/S cables we offer for our wooden handles ARE NOT compatible with the Nucleus-M since the engineering and pin configurations are completely different. Using the wooden handle R/S cables are not safe to use with the Nucleus-M.
Only use cables that have been developed by us exclusively for the Nucleus-M system.
Weight:
Motor Dimensions:
Material: Aluminum-alloy, stainless steel, ABS plastic, rubber, Brazilian rosewood
Color: Tilta Gray
Recommended Battery Link: https://tilta.com/support/which-batteries-do-you-recommend-for-the-g2-g2x/
Tiltamax Nucleus-M Firmware Update 18.12.19 – December 2018SKU: TIL-WLC-T03-K1 -
Lens control systems
Tilta Nucleus-M Wireless Lens Control System Partial Kit IV AU plug without batteries
Lens control systemsTilta Nucleus-M Wireless Lens Control System Partial Kit IV AU plug without batteries
It allows you to have full control of focus, iris, and zoom on either the FIZ hand unit or between the two wireless hand grips. You can even split control of the channels between the hand unit and wireless hand grips as you see fit with the push of a button.
The wireless range of both the hand unit and hand grips is 1,000 feet.
The hand grips can be attached to the included rosette mounts for handheld operation and can also be attached to top bar-based gimbals with the included Nucleus-M Hand Grip to Gimbal Adapters or to ring-based gimbals with the optional Nucleus-M Hand Grip Universal Gimbal Ring Adapters.
Each motor has its own built-in motor drive that communicates directly with the hand unit and hand grips. This negates the need to mount a separate MDR to your rig, allowing for a more compact camera setup and a quicker setup time.
Simply set the motors and hand unit/hand grips to the same channel and you will have full control.
The motors allow for automatic calibration of the lens as well as manual calibration if you are using lenses that don’t have hard end stops at close focus and infinity.
The motors are designed to clamp onto 19mm or 15mm rods (with the included rod bushings). This clamp-on design allows you to easily attach and detach the motors without needing to remove any other accessory from your setup.
Every motor has a 0.8 mod, 35 tooth, 32 pitch gear attached, which is the standard gear size for cinema lenses. The torque of the Nucleus-M Motor at 14.8V is 2.5N·m
To power the motors, only one power port on your camera rig needs to be used. Simply plug the P-tap power cable into one of the motors and then daisy chain power to the rest of the motors with the short 7-pin to 7-pin cables.
The motors can be powered through a power source that has a voltage output ranging from 7.2V-24V.
The hand unit and hand grips are each powered with two 18650 rechargeable batteries (batteries NOT included). When fully charged, the batteries in the hand grips last up to 2 days, while in the hand unit they last up to 10 hours.
Remote start/stop is possible by plugging a compatible Nucleus-M R/S cable into the open 7-pin port of a motor. This then gives you R/S capabilities through the hand unit and/or the handles.
** PLEASE NOTE: The R/S cables we offer for our wooden handles ARE NOT compatible with the Nucleus-M since the engineering and pin configurations are completely different. Using the wooden handle R/S cables are not safe to use with the Nucleus-M.
Only use cables that have been developed by us exclusively for the Nucleus-M system.
Weight:
Motor Dimensions:
Material: Aluminum-alloy, stainless steel, ABS plastic, rubber, Brazilian rosewood
Color: Tilta Gray
Recommended Battery Link: https://tilta.com/support/which-batteries-do-you-recommend-for-the-g2-g2x/
Tiltamax Nucleus-M Firmware Update 18.12.19 – December 2018SKU: TIL-WLC-T03-K4 -
Lens control systems

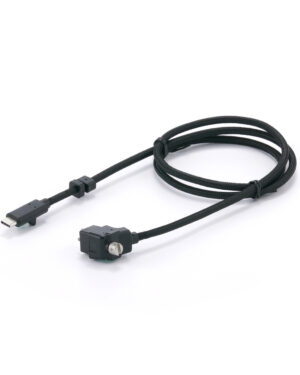

Tilta Nucleus-Nano Micro USB to USB-C Nano Motor Power Cable
This Micro USB to USB-C cable for the Nucleus-Nano allows you to power the motor from a USB-C power output port.
This makes this cable the perfect solution for powering the motor from the DJI RS2.
This cable can also be used to power and control the Nano motor via our Advanced Side Handles.
Please Note: this cable cannot power the Nano motor from a camera body
SKU: TIL-WLC-T04-USBC -
Lens control systems
Tilta Photographic Lens Follow Focus Gear Ring(1x)
This follow focus adapter allows you to use your DSLR photo lens with any of the TILTA Follow Focus Systems. Simply tie the adapter down around the DSLR photo len’s focus wheel and now you can use the photo lens as a cine lens compatible with whichever follow focus system you desire.
(1) Photographic Lens Follow Focus Adapter
Color:
Black
Material:
Silicone Rubber
ABS plasticSKU: TIL-FR-T03 -
Stabilisers
Tilta Power Supply Module for Ring Grip
WARNING: Please take extreme caution when connecting P-Tap power cables as connecting cables backwards can damage your gimbal
This Power Supply Module attaches directly to the Basic or Advanced Ring Grip for RS2 and allows you to mount and power accessories such as monitors and wireless video systems via one USB power output and one P-Tap power output.2: Allen Key (WLC-T04-M4)*1
Color: Black
Materials: Aluminum-alloy, stainless steelSKU: TIL-TGA-RG-PM
