On camera monitors

Pre-order now. Stocks available mid-November.

• Built-in CINENORM OS, brand new user interface & user experience.
• Custom Pages, support custom up to 7 pages, adapt to different shooting scenes and roles.
• False color, ARRI false color, user false color, and LOG false color.
• User calibration, the user can import two sets of custom color calibration files, no need to send the monitor back to the factory for calibrating.
• Split-screen monitoring, switching PBP, PIP, and H2V cropping mode freely.
• Wireless control of ARRI, RED, SONY, Nikon, Canon, Panasonic, and BMD.
• User configuration store and loading,  settings of the monitor can be saved to a USB drive and imported into the same model monitor.
• Support HDMl and SDl signal output simul, and HDMI & SDI conversion.
• Professional monitoring features, like Peaking, Zebra, Luma Waveform, Luma Histogram, and more.

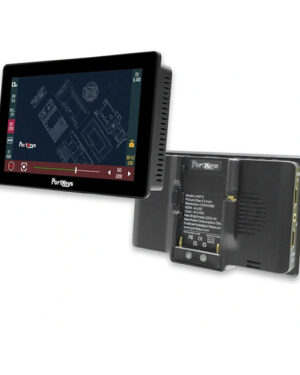

The Portkeys BM7 II DS is a rugged 7-inch touchscreen monitor and an evolution based on the worldwide success of the BM5 III WR. This monitor features a maximum brightness of 2,200nits, HDMI input/output ports, two SDI inputs and one SDI output with HDMI cross conversion, and wired/wireless camera control capabilities.

Key features:

• 7-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
• Daylight viewable with a maximum brightness of 2,200nits.
• Factory color-calibrated: 100% coverage of Rec.709 and 85% coverage of DCI-P3.
• 2 x 3G-SDI input, 1 x HDMI input, 1 x HDMI output, 1 x 3G-SDI output with cross-conversion.
• Split screen monitoring, you can monitor two video inputs simultaneously.
• Professional monitoring tools: Waveform, Vectorscope, Anamorphic, Peaking, ARRI False Color.
• 3D LUT monitoring and 3D LUT SDI output capabilities.
• RED Approved: wireless camera control for the RED Komodo and V-RAPTOR.
• Wireless camera control for most Sony and Blackmagic Design cameras.
• Wired camera control for RED, Sony, Canon, Panasonic, BMD, and ZCAM E2.
• TILTA Nucleus N/M wireless follow focus wired control.
• Built-in dual Sony NP-F style battery plates.
• Industry-standard 2-pin LEMO and 5.5mm barrel connector 7.4V-24V power inputs for external power (D-Tap cable included).
• Rugged all-aluminum housing: only 460g/16.2oz.
• Custom JPG picture custom freeze frame.

• Display: 2.4 inch LCD, 1440×900 Resolution, 8bit Colour Depth, 1100:1 Contrast, 450 nit Brightness
• Input: Supports DCI 4K HDMI, Micro USB
• Power: DC 7-24V/USB 5V/Canon E6 Battery (Not Included)

The Portkeys LEYE is a versatile Electronic Viewfinder that features both 4K HDMI and FullHD 1080p 3G-SDI video inputs, all in a compact and lightweight package that can be powered externally or via a single Canon LP-E6 battery. This EVF features a 2.4″ LCD screen with a 1440 x 900 resolution, making it the perfect EVF for mirrorless cameras, while its SDI input makes it a versatile tool so that you can use it on a wide variety of other cameras.

Key features:

• Compact size: 125 x 70 x 78mm / 4.92 x 2.75 x 3.07in.
• Lightweight and rugged housing: only 265g/9.34oz.
• 2.4-inch, 8-bit panel with a 1440 x 900 resolution and 1100:1 contrast ratio.
• Maximum brightness of 450nits.
• 1 x 4K HDMI input, 1 x 3G-SDI input., 1 x 3.5mm audio output.
• Adjustable Red Oak diopter ring with a -3 to +8 diopter range.
• Professional monitoring tools: Waveform, Histogram, Vectorscope, Peaking, False Color.
• 3D LUT monitoring. Monitoring tools can be set before or after the 3D LUT.
• Built-in Canon LP-E6 battery plate.
• 4-pin 7.4V-24V power input for external power (D-Tap cable included)
• Low power draw: only 5W.
• Multiple 1/4″-20 mounting points with locating pins and built-in NATO rail.

7 inch touchscreen, 1920 × 1080
Supports DCI 4K24 and UHD 4K30 input
1000 cd/m² brightness with HDR preview
HDMI input and output
3.5 mm headphone monitoring
Responsive touch controls

The Portkeys LH7P features a 7-inch touchscreen monitor with 1,000 nits of brightness, HDMI input and output ports, a professional set of monitoring features, and wireless camera control capabilities compatible with multiple Sony and Blackmagic Design cameras.

Key features:

• 7-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
• Daylight-viewable with a maximum brightness of 1,000nits.
• Supports 4K oversampling to 1080p.
• Professional monitoring tools: Waveform, Vectorscope, Anamorphic, Peaking, ARRI False Color.
• Four user-assignable function buttons.
• Built-in Sony NP-F style battery plate. Low power draw of only 9W.
• Customized peaking range(Peaking Frame).
• Custom JPG picture custom freeze frame.
• Custom rectangular image crop.
• Wireless camera control for Sony and Blackmagic Design cameras.
• Lightweight: only 245g/8.6oz.

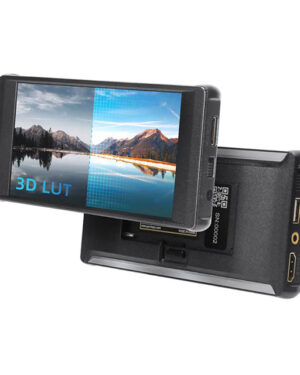

The Portkeys PT5 II is an entry-level and very affordable 5-inch Wide Color Gamut touchscreen on-camera monitor. This HDMI-only monitor has a maximum brightness of 500nits and can be powered for hours by Sony NP-F or Canon LP-E6 batteries. Ready for your next creative adventures, the compact and rugged design houses a complete set of professional monitoring tools

Key features:

• 5-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
• Maximum brightness of 500nits.
• 1 x HDMI input, 1 x HDMI output, 1 x 3.5mm audio output.
• Maximum input/output resolutions: 4K DCI at 24p or 4K UHD at 30p.
• Professional monitoring tools: Waveform, Histogram, Vectorscope, Peaking, False Color.
• 3D LUT monitoring. Monitoring tools can be set before or after the 3D LUT.
• The dual battery plate accepts Sony NP-F or Canon LP-E6 batteries.
•  5.5mm barrel connector 7.4V-24V power input. 5V USB-A power input.
• Low power draw: only 7W.
• Lightweight and rugged aluminum housing: only 150g/5.29oz.

13.7 cm touchscreen, 1920 × 1152 resolution
4K HDMI input and output
3D LUT import via USB
800 cd/m² brightness, 1000:1 contrast
Updated MOVNORM operating system
