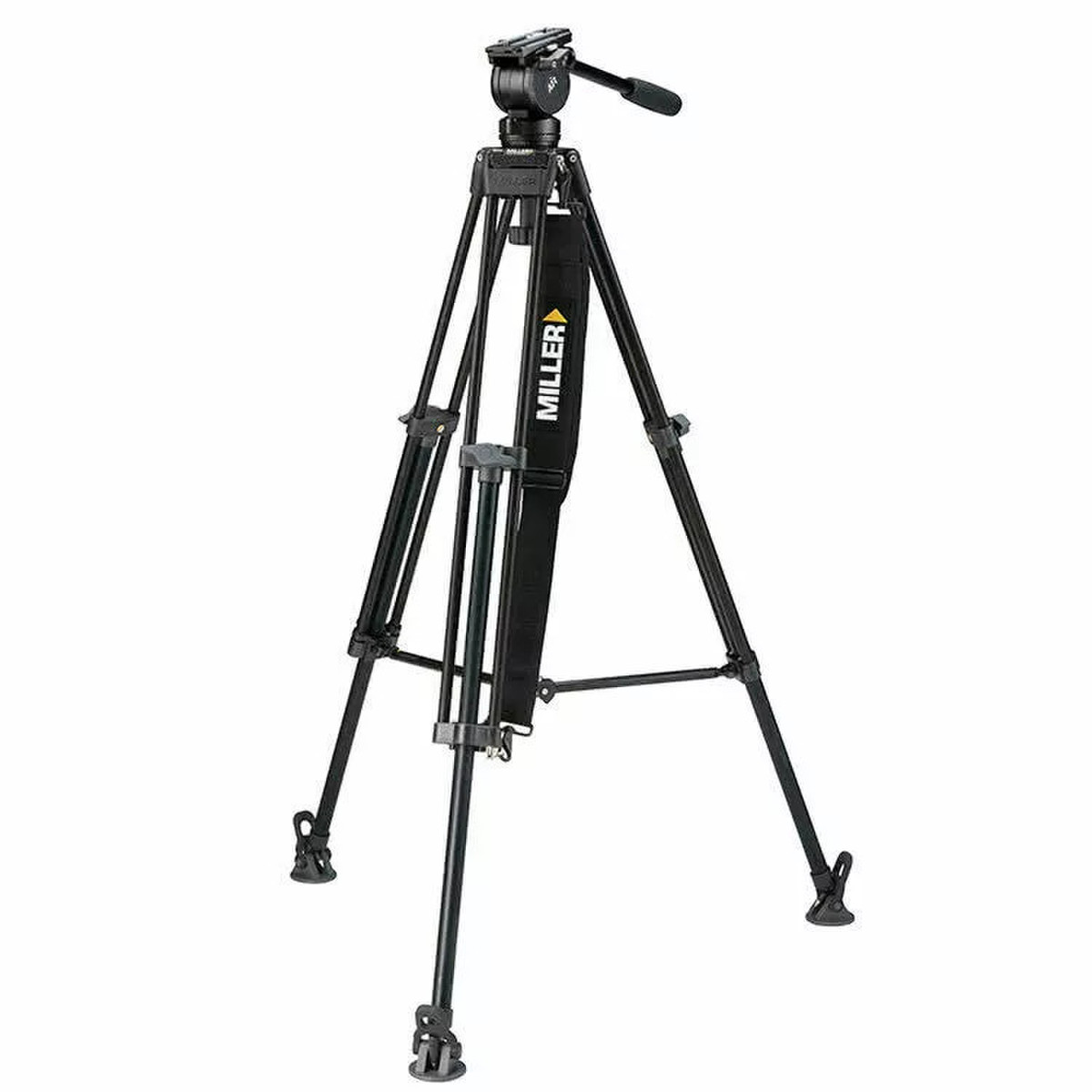

Miller Air 3015 Toggle LW Alloy Tripod System


The 3015 Toggle AIR system is light weight, quick to set up and delivers outstandingly smooth pans and tilts. For that fast action set-up the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and heavier camera configurations. Whatever your application the AIR will always impress.
The Air fluid head is a professional, robust head used extensively by broadcasters such as the BBC, UK and ABC, Australia for news gathering. The Air head housing is made of durable alloy and comes with a three year full manufactures warranty. It is designed and constructed using the same techniques quality components and material as the more expensive professional heads in the Miller range. It is made to last and can easily serviced.
The AIR fluid head is matched with the LW Toggle tripod (alloy) with above ground spreader makes for the most traditional AIR system in the AIR range, the positive Toggle locks mean quick set-ups while the rubber feet mean the system can be used over any terrain.


Specification – AIR Toggle LW Alloy

Payload Range 2.0-5.0kg (4.4-11.0lbs )
Weight 5.0kg (11.1lbs )
Height Range 75 7-1467mm (29.8-57.6″)
Transport Length 967mm (38.1”)
Counterbalance Positions 2 selectable positions
Pan Tilt Drag Fixed
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Sliding camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 137mm (5.4″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 1-stage
Lock Type Toggle
Leg Material Alloy
1042 AIR fluid head
440 Toggle 75 LW tripod (alloy)
682 Pan handle – fixed with clamp
835 DS tripod spreader
550 Rubber feet (set of 3)
554 Shoulder strap (padded)
3512 Softcase 1-stage
